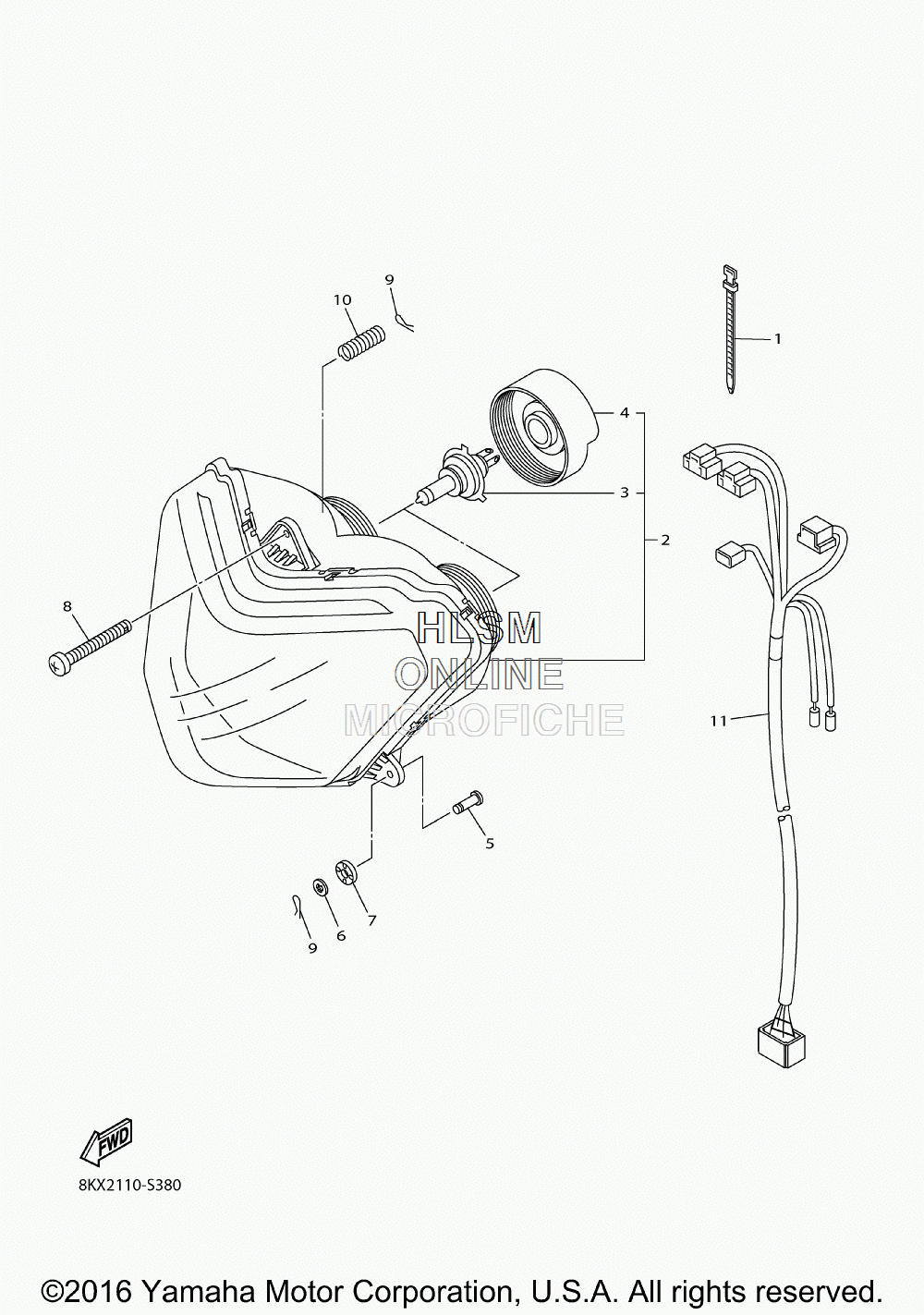

ELECTRICAL - HEADLIGHT ASSY для Yamaha VK540 - 2017 года выпуска`
-
№АртикулНазвание
-
1437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
28KW-84310-00-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
38G9-84314-01-00 ......BULB (12V-60/55W) (H4) HALOGEN......BULB (12V-60/55W) (H4) HALOGEN
-
48GK-84397-01-00 ...COVER, SOCKET...COVER, SOCKET
-
591702-05014-00 PIN, CLEVISPIN, CLEVIS
-
690202-06008-00 WASHER, PLATEWASHER, PLATE
-
790183-05068-00 NUT, SPRINGNUT, SPRING
-
88A5-84331-00-00 SCREW, RIM ADJUSTINGSCREW, RIM ADJUSTING
-
98K4-84374-00-00 CLIPCLIP
-
108A5-84332-00-00 SPRING, SCREWSPRING, SCREW
-
118KX-84359-00-00 CORD, HEADLIGHTCORD, HEADLIGHT
