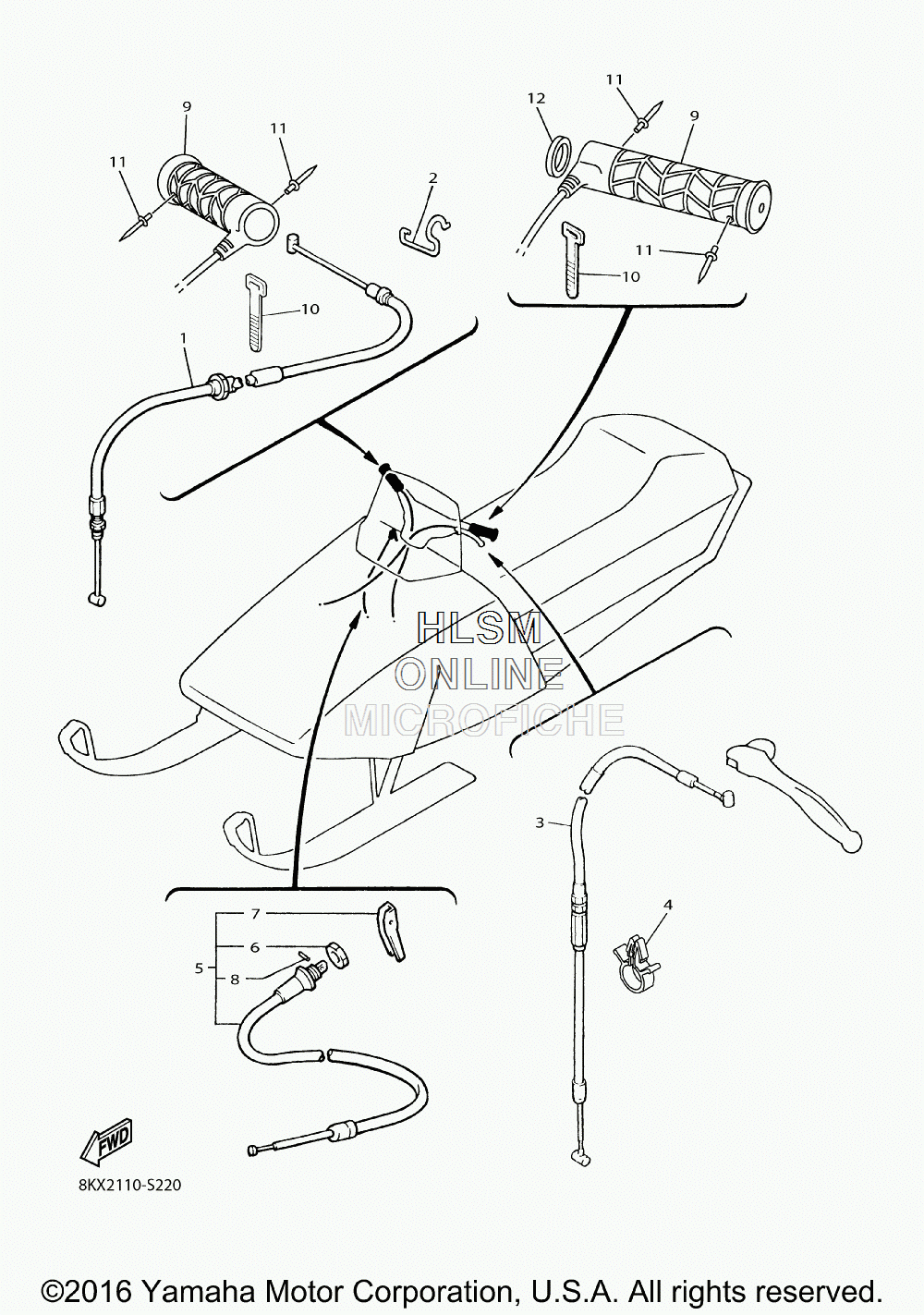

HANDLEBAR - CABLES AND GRIPS для Yamaha VK540 - 2017 года выпуска`
-
№АртикулНазвание
-
18KX-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
290465-10189-00 CLAMPCLAMP
-
38KA-26340-00-00 CABLE, BRAKECABLE, BRAKE
-
490464-15157-00 CLAMPCLAMP
-
58KX-26331-00-00 CABLE, STARTER 1CABLE, STARTER 1
-
68G8-26333-00-00 ...NUT...NUT
-
78U9-26325-00-00 ...KNOB, STARTER...KNOB, STARTER
-
891609-30010-00 ...PIN, SPRING...PIN, SPRING
-
98DM-26240-02-00 GRIP ASSYGRIP ASSY
-
10437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
1190267-48014-00 RIVET, BLIND (4.8X15.1 BLACK)RIVET, BLIND (4.8X15.1 BLACK)
-
1290387-220X0-00 COLLARCOLLAR
