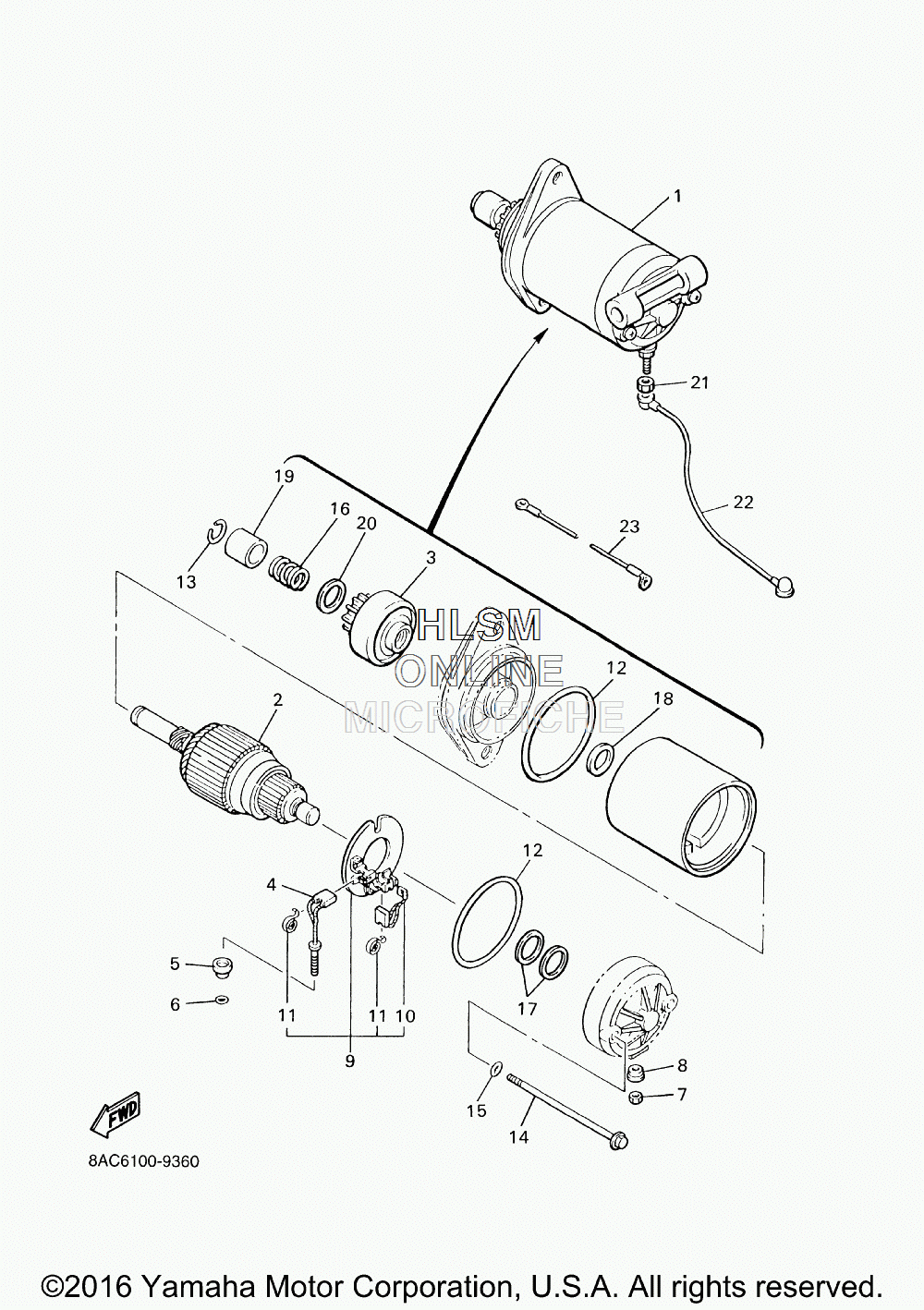

STARTER - ELECTRICAL STARTER ASSY для Yamaha VK540 - 2017 года выпуска`
-
№АртикулНазвание
-
18BB-81800-01-00 STARTING MOTOR ASSYSTARTING MOTOR ASSY
-
28Y3-81850-50-00 ...ARMATURE ASSY...ARMATURE ASSY
-
384N-81832-51-00 ...CLUTCH, OVER RUN...CLUTCH, OVER RUN
-
473A-81811-00-00 ...BRUSH 1...BRUSH 1
-
573A-81829-50-00 ...GROMMET...GROMMET
-
673A-81847-00-00 ...O-RING...O-RING
-
74H7-81872-00-00 ...NUT, SPECIAL...NUT, SPECIAL
-
873A-81829-00-00 ...GROMMET...GROMMET
-
98L6-81840-50-00 ...BRUSH HOLDER ASSY...BRUSH HOLDER ASSY
-
1084N-81812-00-00 ......BRUSH 2......BRUSH 2
-
118L6-81813-50-00 ......SPRING, BRUSH......SPRING, BRUSH
-
124H7-81844-50-00 ...O-RING...O-RING
-
138L6-81834-50-00 ...RING...RING
-
1484N-81826-00-00 ...BOLT...BOLT
-
158L6-81847-50-00 ...O-RING...O-RING
-
168BB-81836-00-00 ...SPRING, LEVER...SPRING, LEVER
-
174H7-81843-50-00 ...WASHER 1...WASHER 1
-
188L6-81835-50-00 ...WASHER 2...WASHER 2
-
198L6-81833-50-00 ...RING, STOP...RING, STOP
-
208BB-8185A-00-00 ...WASHER, PLATE...WASHER, PLATE
-
2195307-06600-00 NUTNUT
-
2283R-82117-01-00 WIRE, LEADWIRE, LEAD
-
238KX-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
