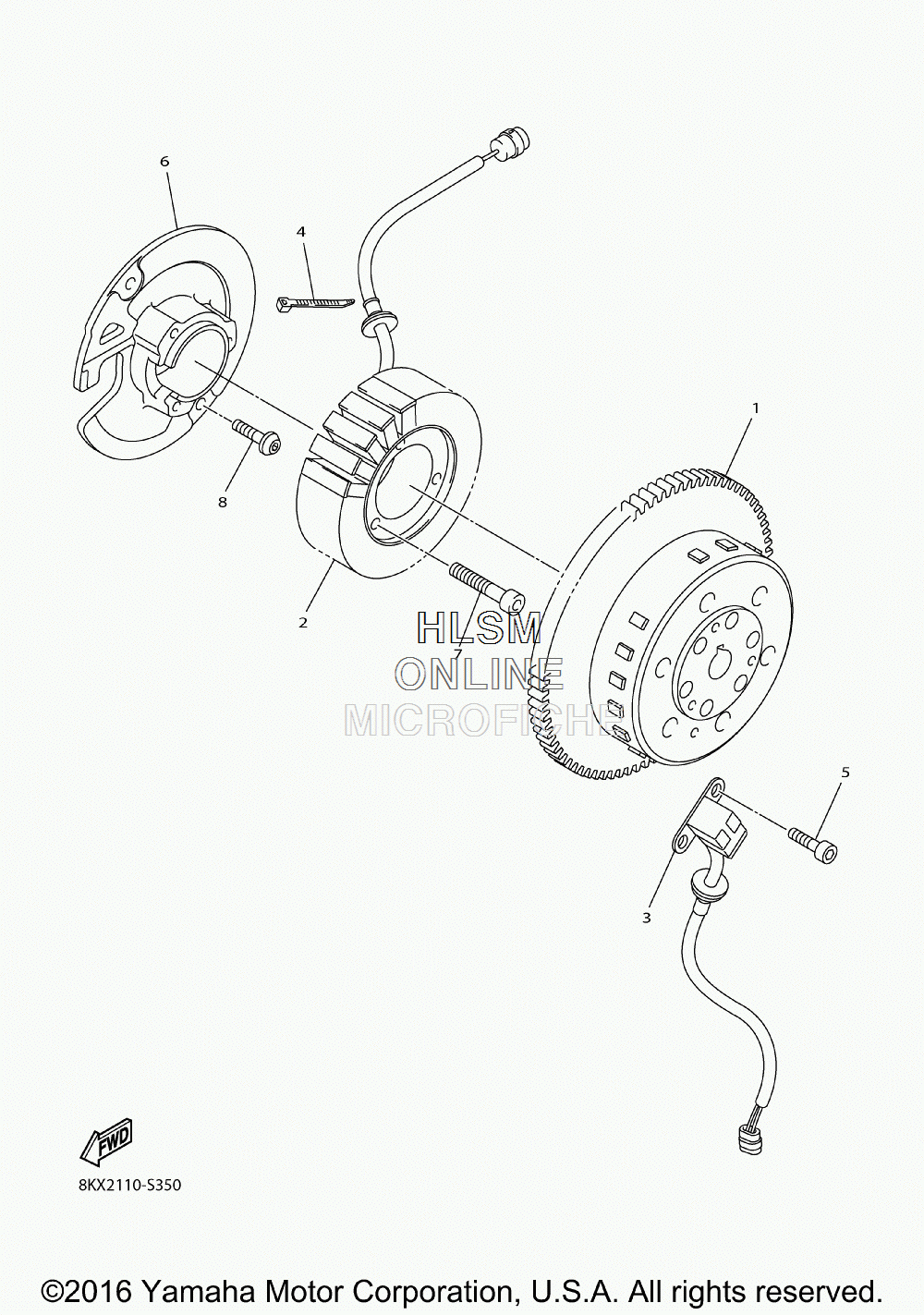

ELECTRICAL - MAGNETO ASSEMBLY для Yamaha VK540 - 2017 года выпуска`
-
№АртикулНазвание
-
18KX-81450-00-00 ROTOR ASSYROTOR ASSY
-
28KX-81410-00-00 STATOR ASSYSTATOR ASSY
-
38KX-81670-00-00 PICK-UP ASSYPICK-UP ASSY
-
490465-10098-00 CLAMPCLAMP
-
590110-05034-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
68KX-81412-00-00 BASE, PLATE 2BASE, PLATE 2
-
790110-06208-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
892012-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
