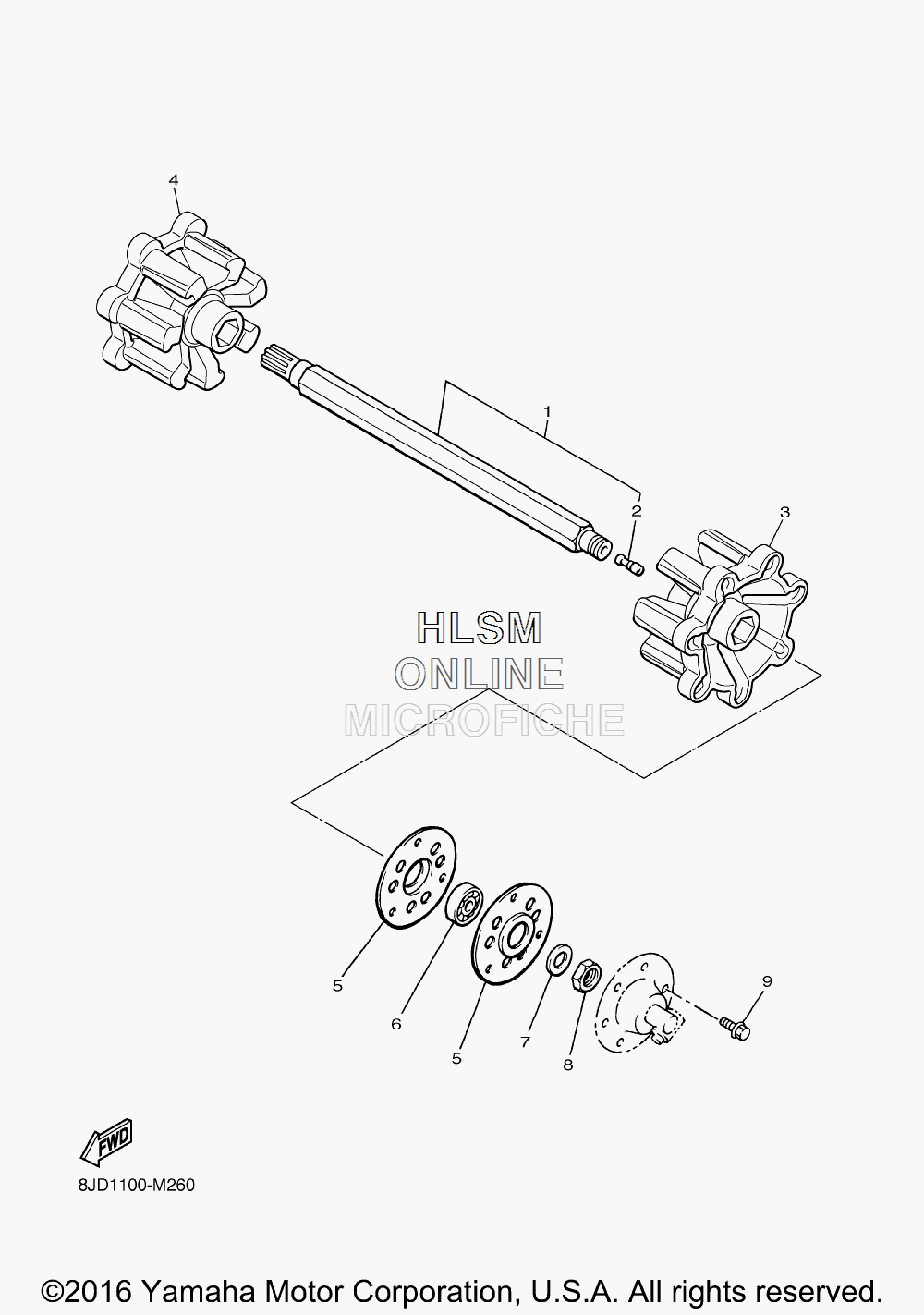

DRIVE TRAIN ASSEMBLY для Yamaha VK540 - 2017 года выпуска`
-
№АртикулНазвание
-
183R-W4751-10-00 AXLE, FRONTAXLE, FRONT
-
28K4-47577-00-00 ...CONNECTOR...CONNECTOR
-
38JD-47531-00-00 WHEEL, SPROCKET 1WHEEL, SPROCKET 1
-
48JD-47532-00-00 WHEEL, SPROCKET 2WHEEL, SPROCKET 2
-
583R-47551-00-00 HOUSING, FRONT AXLEHOUSING, FRONT AXLE
-
693306-00507-00 BEARINGBEARING
-
790208-25045-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
890170-25367-00 NUTNUT
-
995822-08014-00 BOLT, FLANGEBOLT, FLANGE
