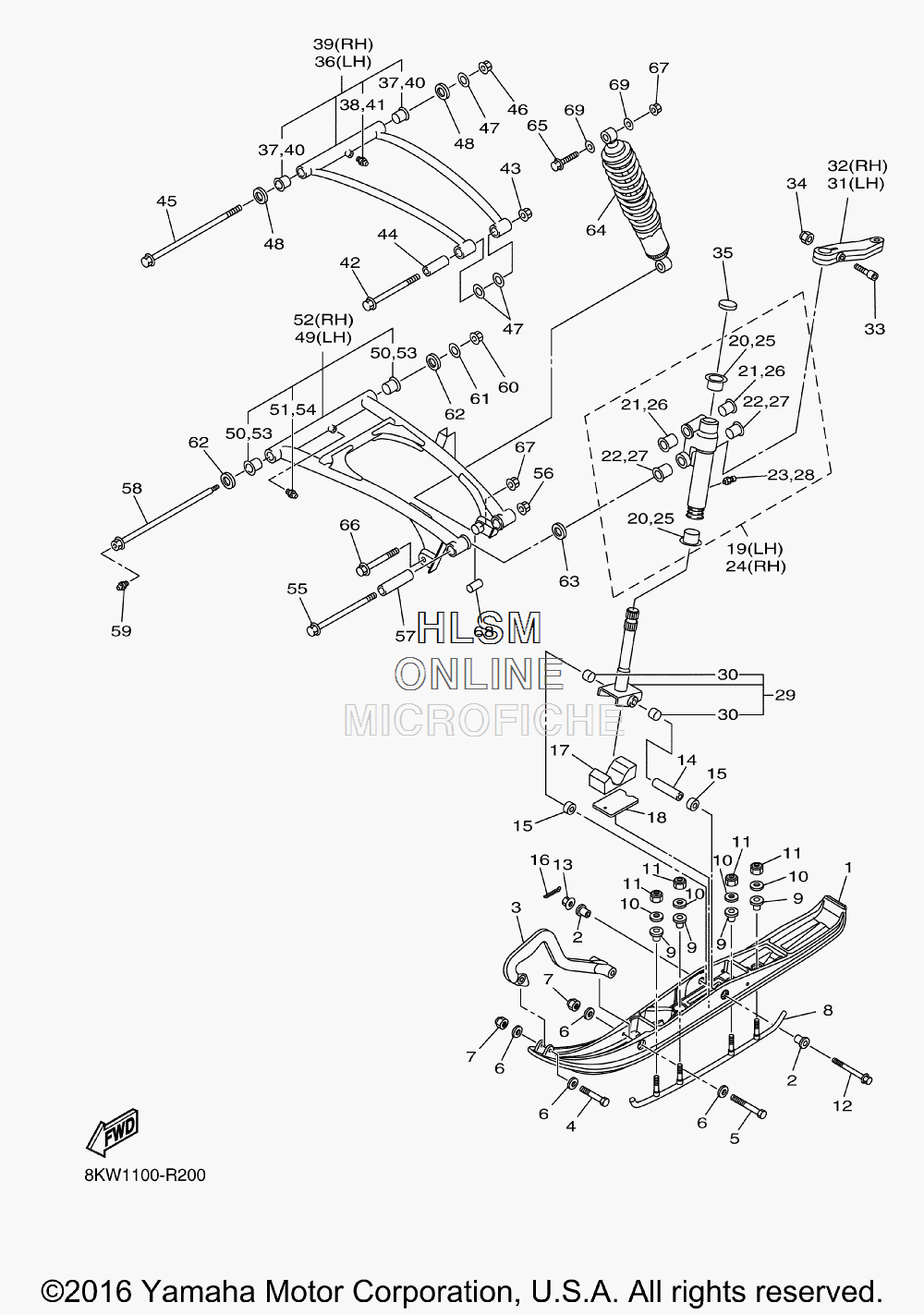

SUSPENSION - FRONT W/ SKI ASSY для Yamaha RS VIKING PROFESSIONAL II - 2016 года выпуска`
-
№АртикулНазвание
-
18FN-F3711-00-00 SKI 1SKI 1
-
28EX-F3754-00-00 COLLAR 1COLLAR 1
-
38DM-F3712-00-00 REINFORCEMENT, HEADREINFORCEMENT, HEAD
-
48HG-F3755-00-00 BOLT, REINFORCEMENT HEAD 1BOLT, REINFORCEMENT HEAD 1
-
58HG-F3756-00-00 BOLT, REINFORCEMENT HEAD 2BOLT, REINFORCEMENT HEAD 2
-
68HG-F3737-00-00 WASHER 1WASHER 1
-
78HG-F3778-00-00 NUTNUT
-
88EN-F3731-01-00 RUNNER 1RUNNER 1
-
98EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
108HG-F3738-00-00 WASHER 2WASHER 2
-
118JH-F3778-00-00 NUTNUT
-
1290105-10410-00 BOLT, FLANGEBOLT, FLANGE
-
1395602-10200-00 NUT, U FLANGENUT, U FLANGE
-
1490387-1012H-00 COLLARCOLLAR
-
1590387-10029-00 COLLARCOLLAR
-
1691401-20020-00 PIN, COTTERPIN, COTTER
-
178ES-23743-00-00 STOPPER 1STOPPER 1
-
188FM-23744-00-00 STOPPER 2STOPPER 2
-
198ES-23501-10-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
2090381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
2190381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
2290381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
2393700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
248ES-23502-10-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
2590381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
2690381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
2790381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
2893700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
298ES-23803-00-00 COLUMN, SKI ASSYCOLUMN, SKI ASSY
-
3090384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
318FN-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
328FN-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
3390110-08104-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3495602-08200-00 NUT, U FLANGENUT, U FLANGE
-
353YK-22472-40-00 CAP, CASECAP, CASE
-
368GS-23540-10-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
3790381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
3893700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
398GS-23550-10-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
4090381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
4193700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
4290105-10230-00 BOLT, FLANGEBOLT, FLANGE
-
4395602-10200-00 NUT, U FLANGENUT, U FLANGE
-
4490387-10099-00 COLLARCOLLAR
-
4590109-10056-00 BOLTBOLT
-
4695602-10200-00 NUT, U FLANGENUT, U FLANGE
-
4790201-10052-00 WASHER, PLATEWASHER, PLATE
-
4890209-15N50-00 WASHERWASHER
-
498GS-23570-10-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
5090381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
5193700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
528GS-23580-10-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
5390381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
5493700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
5590105-12078-00 BOLT, FLANGEBOLT, FLANGE
-
5695602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5790387-12054-00 COLLARCOLLAR
-
5890401-10045-00 BOLT, UNIONBOLT, UNION
-
5993700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
6095602-10200-00 NUT, U FLANGENUT, U FLANGE
-
6190201-10052-00 WASHER, PLATEWASHER, PLATE
-
6290209-15N50-00 WASHERWASHER
-
6390201-12032-00 WASHER, PLATEWASHER, PLATE
-
648JE-2376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
6590105-10232-00 BOLT, FLANGEBOLT, FLANGE
-
6690105-10392-00 BOLT, FLANGEBOLT, FLANGE
-
6795602-10200-00 NUT, U FLANGENUT, U FLANGE
-
6890387-10N59-00 COLLARCOLLAR
-
6990201-10052-00 WASHER, PLATEWASHER, PLATE
