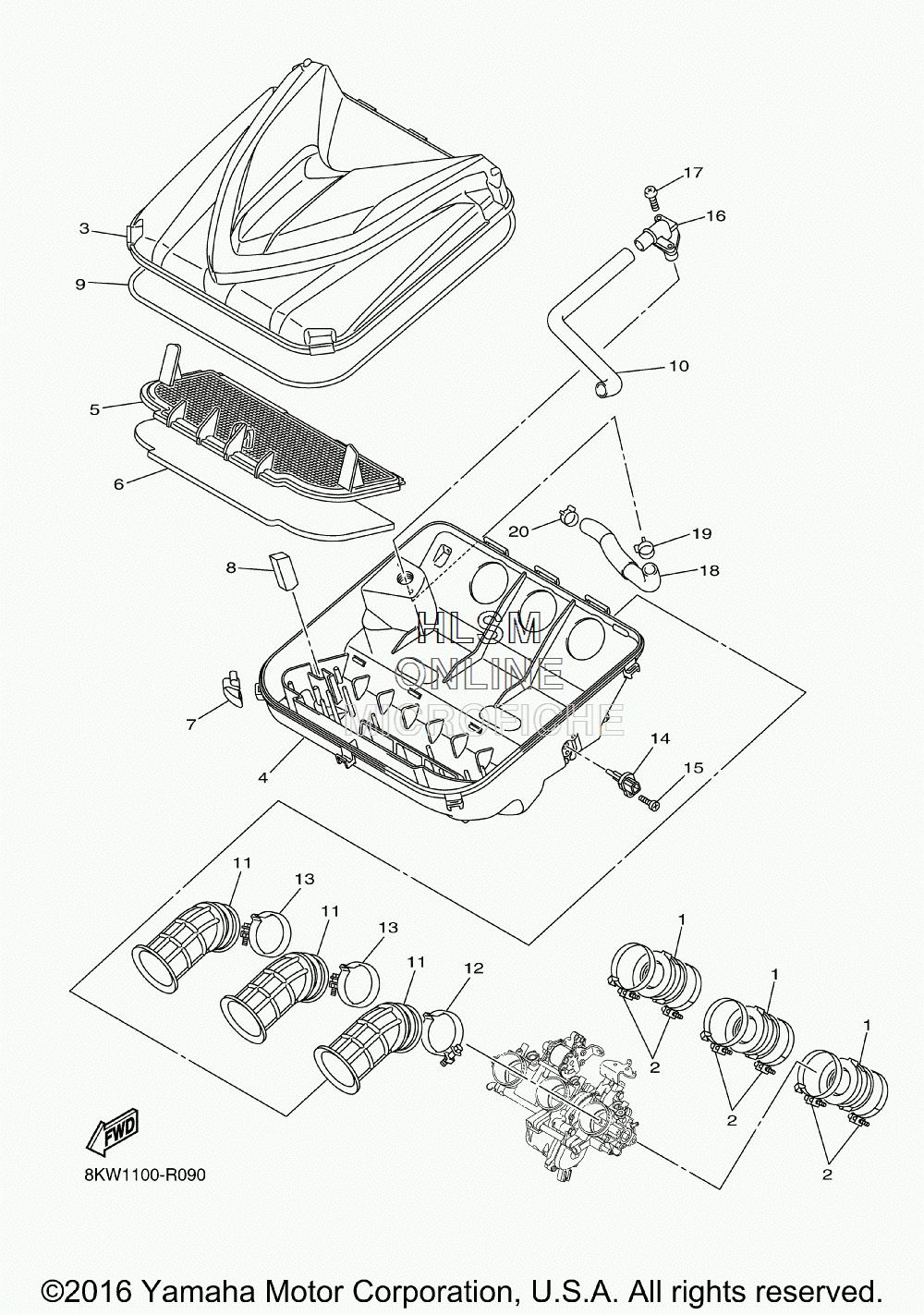

INTAKE W/ AIR BOX ASSY - FUEL PUMP для Yamaha RS VIKING PROFESSIONAL II - 2016 года выпуска`
-
№АртикулНазвание
-
18HF-13595-00-00 JOINTJOINT
-
290450-60004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
38HF-14431-00-00 SILENCER, INTAKE 1SILENCER, INTAKE 1
-
48HF-14441-11-00 SILENCER, INTAKE 2SILENCER, INTAKE 2
-
58HF-14472-00-00 PLATE, ELEMENTPLATE, ELEMENT
-
68HF-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
78FA-14436-00-00 HOOKHOOK
-
88HF-14425-00-00 DAMPER 1DAMPER 1
-
98HF-14452-00-00 SEALSEAL
-
108GM-14419-00-00 PIPEPIPE
-
118HF-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
1290450-56010-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1390450-56009-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
148FP-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
1597702-50520-00 SCREW, TAPPINGSCREW, TAPPING
-
168GC-14485-00-00 PIPE, JOINTPIPE, JOINT
-
1797702-50025-00 SCREW, TAPPINGSCREW, TAPPING
-
188KW-21745-00-00 PIPE, OIL TANK BREATHERPIPE, OIL TANK BREATHER
-
1990467-22002-00 CLIPCLIP
-
2090467-22097-00 CLIPCLIP
Все узлы модели:
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CAMSHAFT W/ CAMSHAFT CHAIN ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CHAINCASE ASSY 2
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS (OPTION)
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKCASE COVER ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- • INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - MANUALS
- OIL COOLER ASSY W/ OIL FILTER
- OIL PUMP ASSY
- OIL TANK ASSY
- PIVOT ARM W/ SHOCK
- REFLECTOR ASSY
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - REDUCTION GEAR W/ CLUTCH ASSY
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2
- THROTTLE BODY ASSY
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
- VALVE ASSY
- WATER PUMP ASSY
