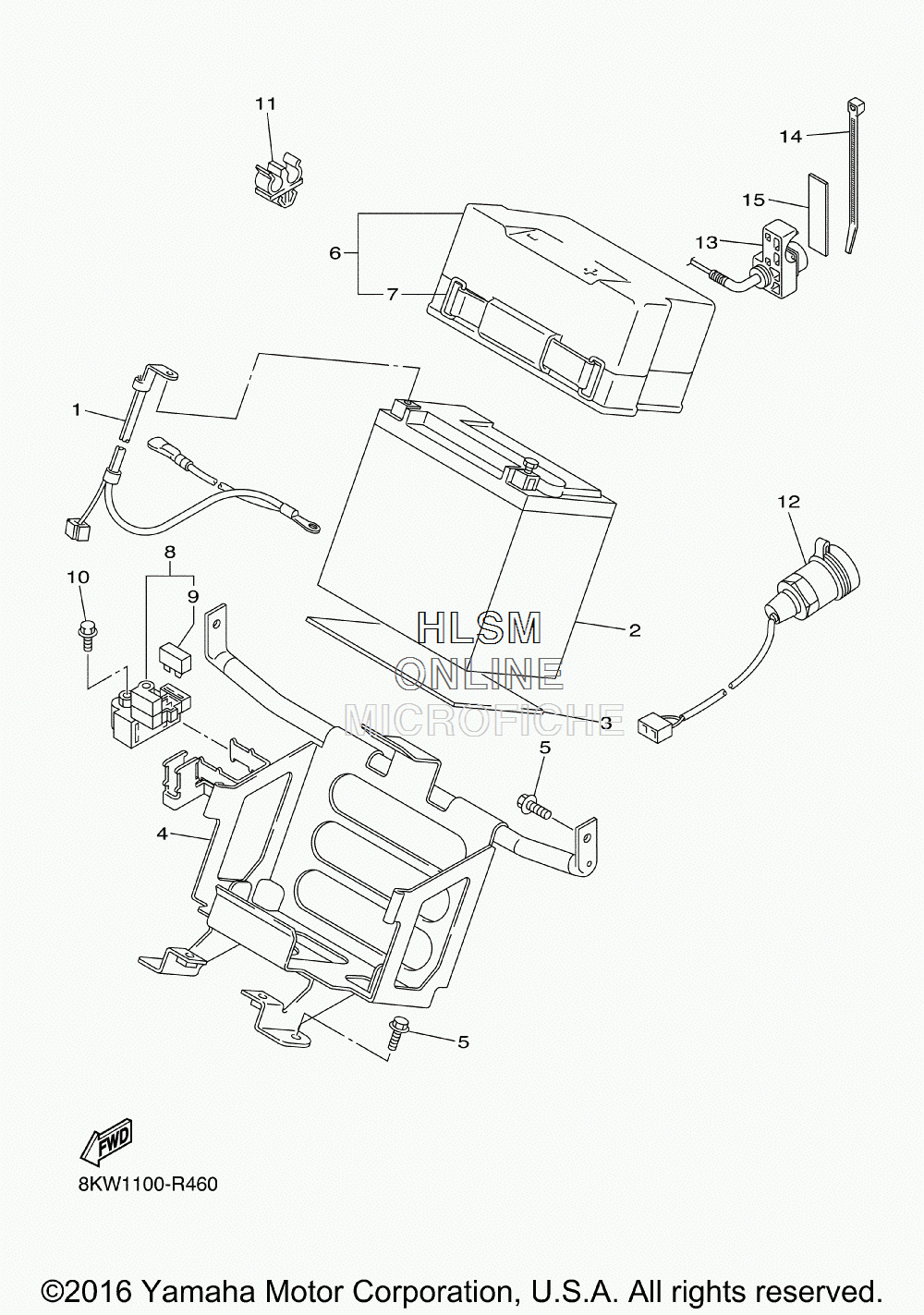

ELECTRICAL - BATTERY ASSY для Yamaha RS VIKING PROFESSIONAL II - 2016 года выпуска`
-
№АртикулНазвание
-
18KW-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
24SH-82100-22-00 BATTERY ASSY (YUASA YTX20L-BS)BATTERY ASSY (YUASA YTX20L-BS)
-
38FA-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
48KW-2199G-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
595822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
68FA-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
78DM-82131-10-00 ...BAND, BATTERY...BAND, BATTERY
-
88HG-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
942X-82151-00-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
1095022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
1190464-08126-00 CLAMPCLAMP
-
128FP-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
138HF-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
1490464-35132-00 CLAMPCLAMP
-
158HF-84527-00-00 DAMPERDAMPER
