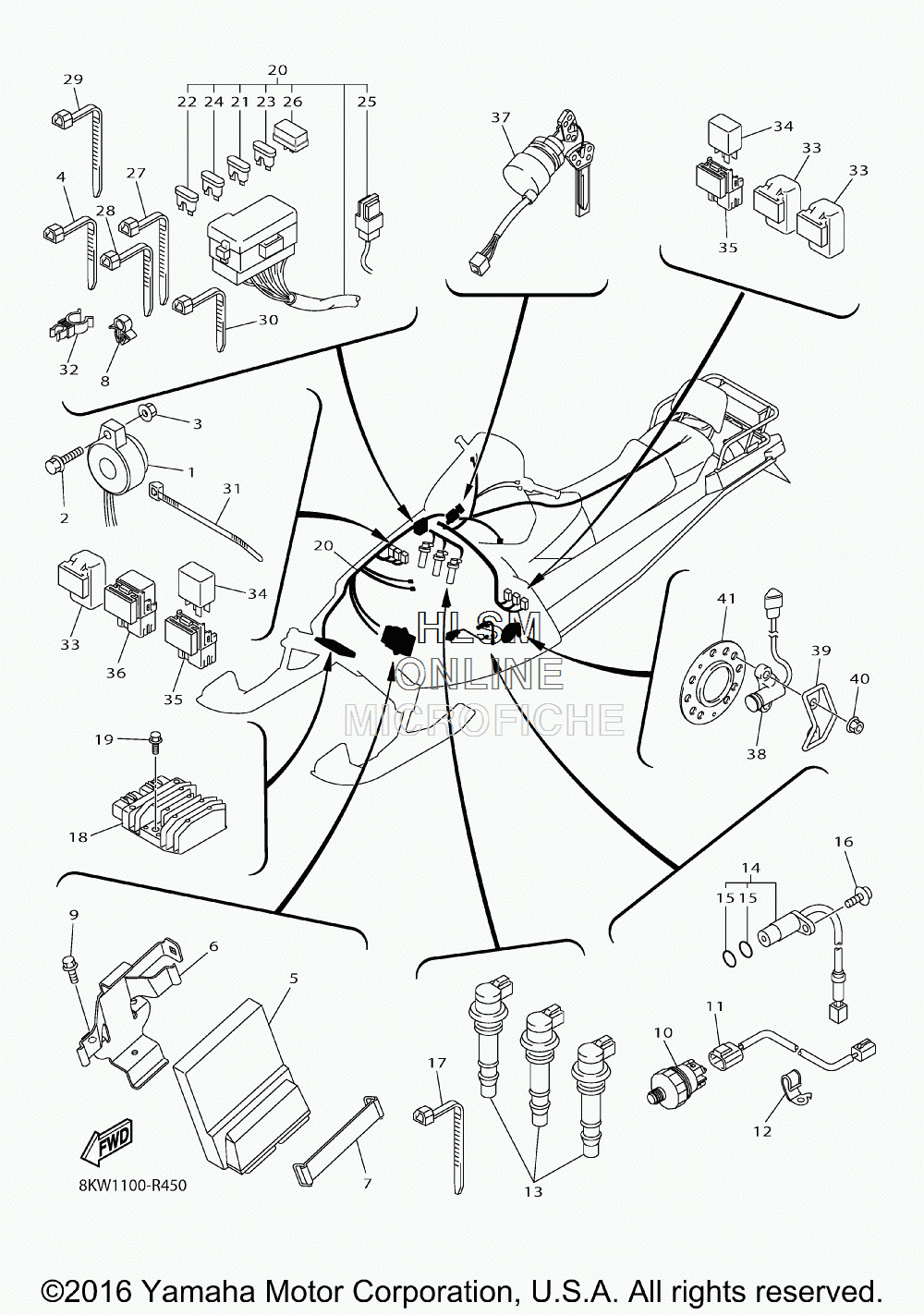

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha RS VIKING PROFESSIONAL II - 2016 года выпуска`
-
№АртикулНазвание
-
18GL-83383-00-00 BUZZERBUZZER
-
290159-05035-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
395702-05500-00 NUT, FLANGENUT, FLANGE
-
490464-13073-00 CLAMPCLAMP
-
58KW-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
68KW-85991-00-00 BRACKET, UNITBRACKET, UNIT
-
72T4-82131-00-00 BAND, BATTERYBAND, BATTERY
-
890464-07016-00 CLAMPCLAMP
-
995822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
108FP-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
118GL-82318-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
1290465-08030-00 CLAMPCLAMP
-
138ES-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
148GL-81670-00-00 PICK-UP ASSYPICK-UP ASSY
-
155VY-8A8E1-00-00 ...O-RING 1...O-RING 1
-
1690110-06218-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1790464-13073-00 CLAMPCLAMP
-
181D7-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1990105-06185-00 BOLT, FLANGEBOLT, FLANGE
-
208KW-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
215JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
225JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
235JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
245JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
255PS-82151-00-00 ...FUSE (40A)...FUSE (40A)
-
264WA-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
2790464-15195-00 CLAMPCLAMP
-
2890464-13073-00 CLAMPCLAMP
-
2990464-12045-00 CLAMPCLAMP
-
3090464-13077-00 CLAMPCLAMP
-
3190464-35132-00 CLAMPCLAMP
-
3290464-14005-00 CLAMPCLAMP
-
335DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
348HG-81951-10-00 RELAY ASSY (8HG-10)RELAY ASSY (8HG-10)
-
358HG-81952-00-00 HOLDER, RELAYHOLDER, RELAY
-
368GN-81950-00-00 RELAY ASSY (8GN-00)RELAY ASSY (8GN-00)
-
378HV-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
388GK-83755-12-00 SENSOR, SPEEDSENSOR, SPEED
-
398GC-2198G-00-00 COVER 2COVER 2
-
4095702-08300-00 NUT, NYLONNUT, NYLON
-
418EK-47551-00-00 HOUSING, FRONT AXLEHOUSING, FRONT AXLE
