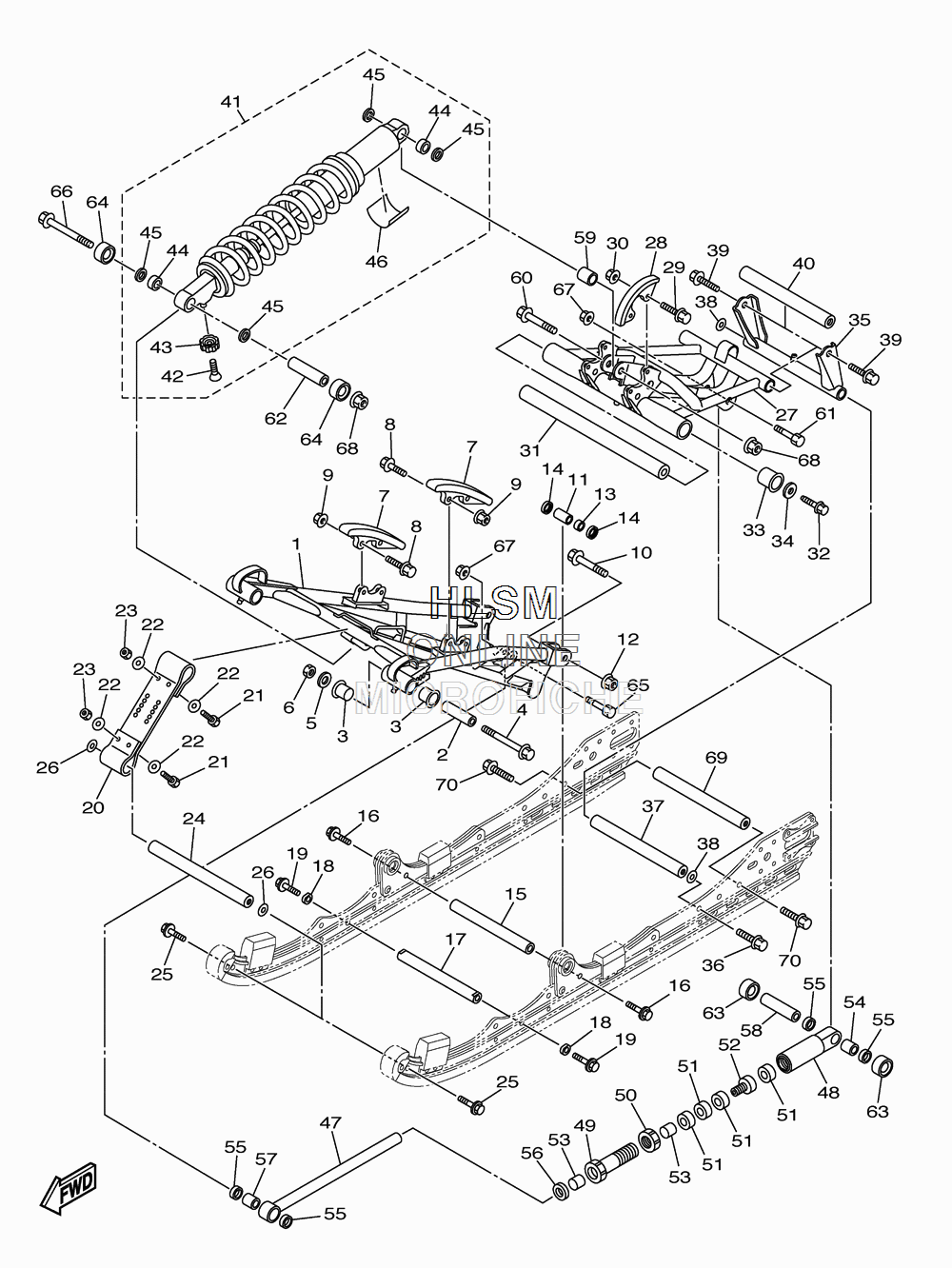

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha VECTOR LTX - 2012 года выпуска
-
№АртикулНазвание
-
18JA-47331-00-00 ARM, PIVOT 1ARM, PIVOT 1
-
290387-10042-00 COLLARCOLLAR
-
390386-22002-00 BUSHBUSH
-
490105-10150-00 BOLT, FLANGEBOLT, FLANGE
-
590201-10038-00 WASHER, PLATEWASHER, PLATE
-
690185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
78F3-47422-01-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
890105-06164-00 BOLT, FLANGEBOLT, FLANGE
-
995602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1090105-10387-00 BOLT, FLANGEBOLT, FLANGE
-
1190387-10095-00 COLLARCOLLAR
-
1290185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1393315-31750-00 BEARINGBEARING
-
1493109-17071-00 OIL SEALOIL SEAL
-
158JA-47486-00-00 SHAFT 4SHAFT 4
-
1690105-10385-00 BOLT, FLANGEBOLT, FLANGE
-
178GL-47486-00-00 SHAFT 4SHAFT 4
-
188GL-47341-00-00 SPACERSPACER
-
1990105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
208GM-47495-00-00 STOPPER 1STOPPER 1
-
2197002-06025-00 BOLTBOLT
-
2290201-06081-00 WASHER, PLATEWASHER, PLATE
-
2395702-06300-00 NUT, NYLONNUT, NYLON
-
248FU-47485-00-00 SHAFT 3SHAFT 3
-
2590105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
2690201-10126-00 WASHER, PLATEWASHER, PLATE
-
278JB-47332-01-00 ARM, PIVOT 2ARM, PIVOT 2
-
288FT-47441-10-00 SLIDER 1SLIDER 1
-
2990105-06164-00 BOLT, FLANGEBOLT, FLANGE
-
3095602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
318FT-47475-00-00 SHAFT 2SHAFT 2
-
3290109-10030-00 BOLTBOLT
-
3390381-28108-00 BUSH, SOLIDBUSH, SOLID
-
3490201-10039-00 WASHER, PLATEWASHER, PLATE
-
358FU-47417-11-00 BRACKET 3BRACKET 3
-
3690105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
378FU-47485-00-00 SHAFT 3SHAFT 3
-
3890201-10136-00 WASHER, PLATEWASHER, PLATE
-
3990105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
408FU-47486-00-00 SHAFT 4SHAFT 4
-
418HW-47480-00-00 SHOCK ABSORBERSHOCK ABSORBER
-
4290142-03N01-00 ...SCREW, COUNTERSUNK...SCREW, COUNTERSUNK
-
435JW-2319W-00-00 ...KNOB (TEN)...KNOB (TEN)
-
4493315-31758-00 ...BEARING...BEARING
-
4593109-17071-00 ...OIL SEAL...OIL SEAL
-
464AA-22259-70-00 ...LABEL, WARNING...LABEL, WARNING
-
478JA-4745A-00-00 ROD, CONTROL 1ROD, CONTROL 1
-
488JA-4745C-00-00 ROD, CONTROL 3ROD, CONTROL 3
-
498JA-4745B-00-00 ROD, CONTROL 2ROD, CONTROL 2
-
508JA-47368-00-00 NUTNUT
-
518GM-47384-10-00 WASHERWASHER
-
528FU-4745D-00-00 STOPPER, CONT. 1STOPPER, CONT. 1
-
5390384-16251-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
5493315-31841-00 BEARING, CYL.#15BEARING, CYL.#15
-
5593109-18001-00 OIL SEALOIL SEAL
-
56C68-43822-00-00 SEAL, TRIM DUSTSEAL, TRIM DUST
-
5790387-12051-00 COLLARCOLLAR
-
5890387-12052-00 COLLARCOLLAR
-
5990387-1012A-00 COLLARCOLLAR
-
6095812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
6190101-12043-00 BOLTBOLT
-
6290387-10034-00 COLLARCOLLAR
-
638JA-47341-00-00 SPACERSPACER
-
648FU-47341-00-00 SPACERSPACER
-
6590101-12042-00 BOLTBOLT
-
6695812-10070-00 BOLT, FLANGEBOLT, FLANGE
-
6790185-12007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6895602-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
698ES-47485-00-00 SHAFT 3SHAFT 3
-
7090105-10329-00 BOLT, FLANGEBOLT, FLANGE
