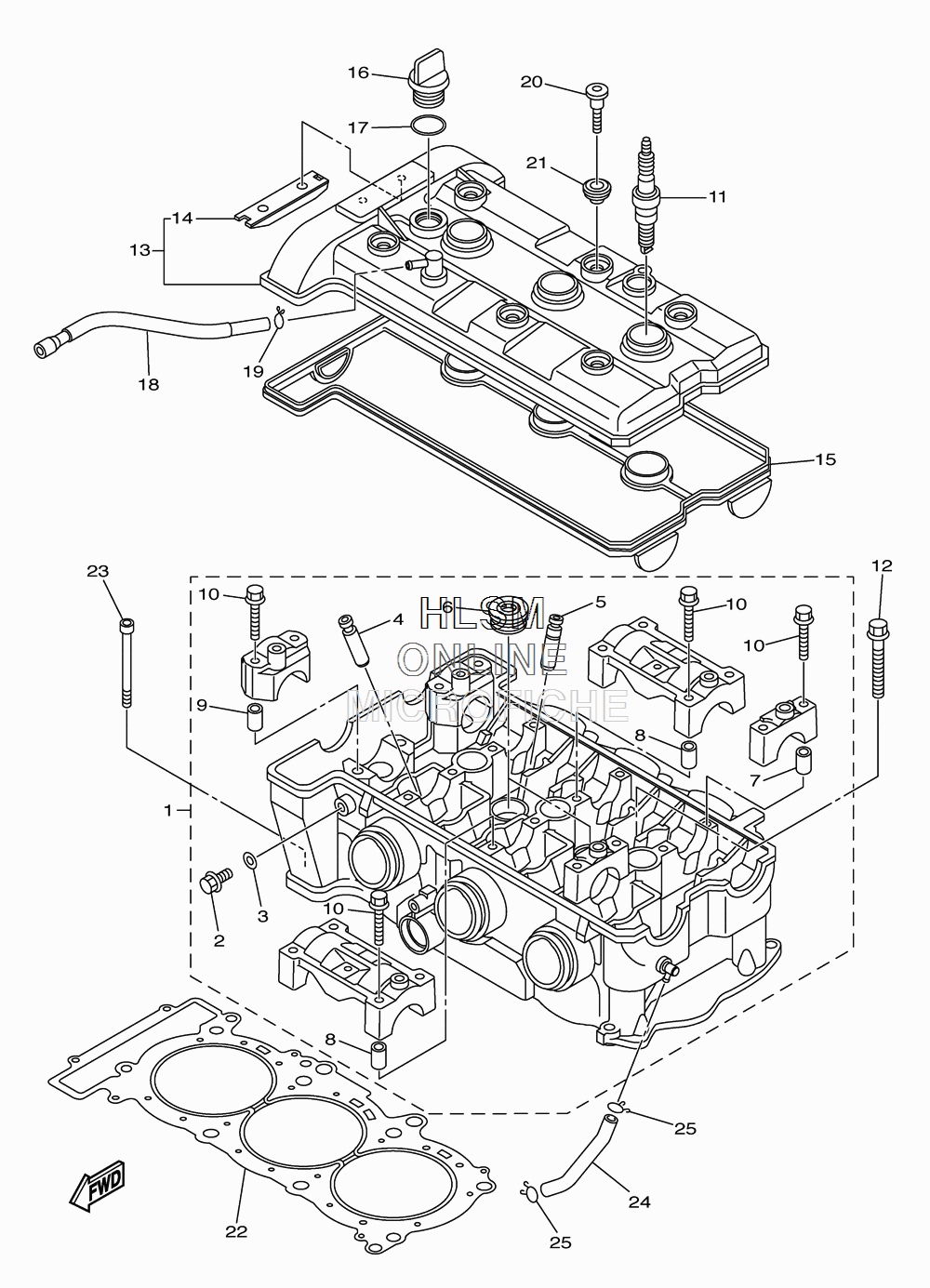

CYLINDER W/ HEAD ASSY для Yamaha VECTOR LTX - 2012 года выпуска`
-
№АртикулНазвание
-
18GL-11101-01-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
295022-08012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
390430-08119-00 ...GASKET...GASKET
-
42C0-11133-11-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
58HF-11134-10-00 ...GUIDE, VALVE 2...GUIDE, VALVE 2
-
690340-27129-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
791808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
891808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
991808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
1090105-06027-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
1194701-00411-00 PLUG, SPARK (NGK R CR8E)PLUG, SPARK (NGK R CR8E)
-
1290119-10004-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
138GL-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
145BE-12241-00-00 ...GUIDE, STOPPER 2...GUIDE, STOPPER 2
-
158GL-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
163Y1-15363-10-00 PLUG, OILPLUG, OIL
-
1793210-19123-00 O-RINGO-RING
-
188HF-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
1990467-100A1-00 CLIPCLIP
-
2090109-066F0-00 BOLTBOLT
-
215VY-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
228GL-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
2391312-06065-00 BOLTBOLT
-
248ES-13416-00-00 PIPE, OIL 1PIPE, OIL 1
-
2590467-100A1-00 CLIPCLIP
