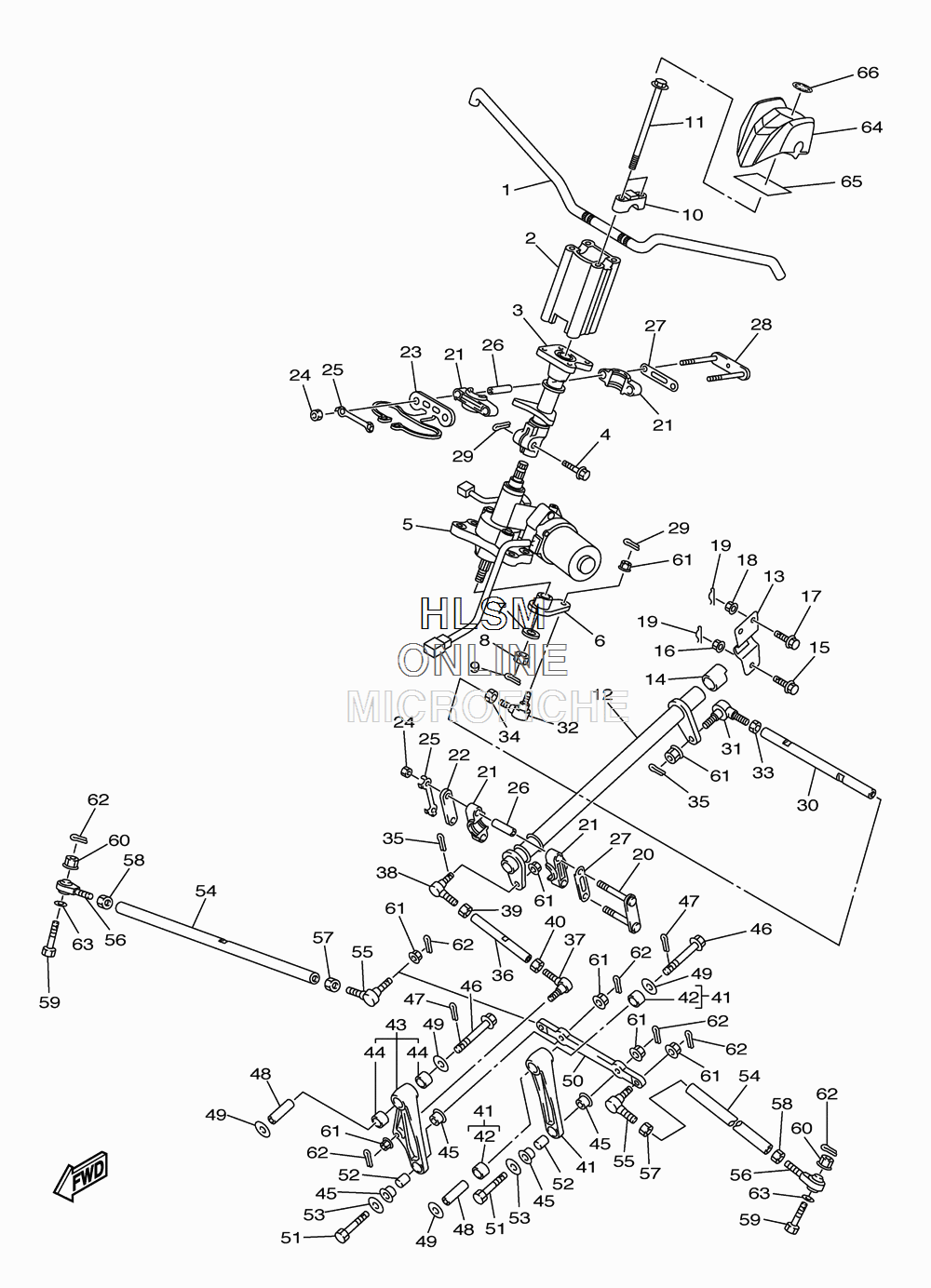

HANDLEBAR ASSY W/ STEERING ASSY для Yamaha VECTOR LTX - 2012 года выпуска
-
№АртикулНазвание
-
18HG-26111-00-00 HANDLEBARHANDLEBAR
-
28GT-2381B-00-00 JOINTJOINT
-
38HG-23813-00-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
490119-08143-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
53B4-238B0-30-00 POWER STEERING ACTUATOR ASSYPOWER STEERING ACTUATOR ASSY
-
68HG-23816-00-00 ARM, PITMANARM, PITMAN
-
790201-16021-00 WASHER, PLATEWASHER, PLATE
-
895612-16100-00 NUT, UNUT, U
-
991401-20030-00 PIN, COTTERPIN, COTTER
-
108K1-23814-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
118GT-23876-00-00 BOLTBOLT
-
128FA-23811-00-00 COLUMN, STEERINGCOLUMN, STEERING
-
138FA-23818-02-00 COVER, STEERINGCOVER, STEERING
-
148FA-23873-01-00 BEARING, STEERING UPPERBEARING, STEERING UPPER
-
1590105-10728-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1695602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
1790105-08552-00 BOLT, FLANGEBOLT, FLANGE
-
1895602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1990468-12006-00 CLIPCLIP
-
208FA-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
218FA-23812-00-00 BEARING, STEERINGBEARING, STEERING
-
228FA-23867-00-00 HOLDER 2HOLDER 2
-
238HV-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
2495312-08600-00 NUTNUT
-
251UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
268HF-2412G-00-00 COLLARCOLLAR
-
278FA-23843-00-00 WASHER, PLAINWASHER, PLAIN
-
288HG-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
2991401-20020-00 PIN, COTTERPIN, COTTER
-
308FA-23828-00-00 ROD, STEERINGROD, STEERING
-
318CR-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
328CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
3395307-10700-00 NUTNUT
-
3490170-10186-00 NUT, HEXAGON (LEFT THREAD)NUT, HEXAGON (LEFT THREAD)
-
3591401-20020-00 PIN, COTTERPIN, COTTER
-
368HG-23821-00-00 ROD, STEERING RELAYROD, STEERING RELAY
-
378CR-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
388CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
3995307-10700-00 NUTNUT
-
4090170-10186-00 NUT, HEXAGON (LEFT THREAD)NUT, HEXAGON (LEFT THREAD)
-
418FG-2389K-00-00 ARM PIVOT ASSYARM PIVOT ASSY
-
4290383-17001-00 ...BUSH, FORMED...BUSH, FORMED
-
438FA-2389M-00-00 ARM PIVOT ASSY, 2ARM PIVOT ASSY, 2
-
4493317-41785-00 ...BEARING...BEARING
-
4590381-14001-00 BUSH, SOLIDBUSH, SOLID
-
4690105-12017-00 BOLT, FLANGEBOLT, FLANGE
-
478FA-2384N-00-00 CLIP, RINGCLIP, RING
-
488FA-2412G-00-00 COLLARCOLLAR
-
4990201-121U3-00 WASHER, PLATEWASHER, PLATE
-
508FU-23826-00-00 ARM, IDLERARM, IDLER
-
5190102-10044-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
5290387-10008-00 COLLARCOLLAR
-
5390201-10742-00 WASHER, PLATEWASHER, PLATE
-
548HG-23831-00-00 ROD, TIEROD, TIE
-
558CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
568FA-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
5795307-10700-00 NUTNUT
-
5890170-10186-00 NUT, HEXAGON (L/H THREAD)NUT, HEXAGON (L/H THREAD)
-
5990102-10044-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
6095702-10300-00 NUT, NYLONNUT, NYLON
-
6195702-10500-00 NUT, FLANGENUT, FLANGE
-
6291401-20020-00 PIN, COTTERPIN, COTTER
-
6390201-08759-00 WASHER, PLATEWASHER, PLATE
-
648GL-26124-00-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
658GL-26113-00-00 DAMPERDAMPER
-
668AC-2414B-01-00 EMBLEMEMBLEM
