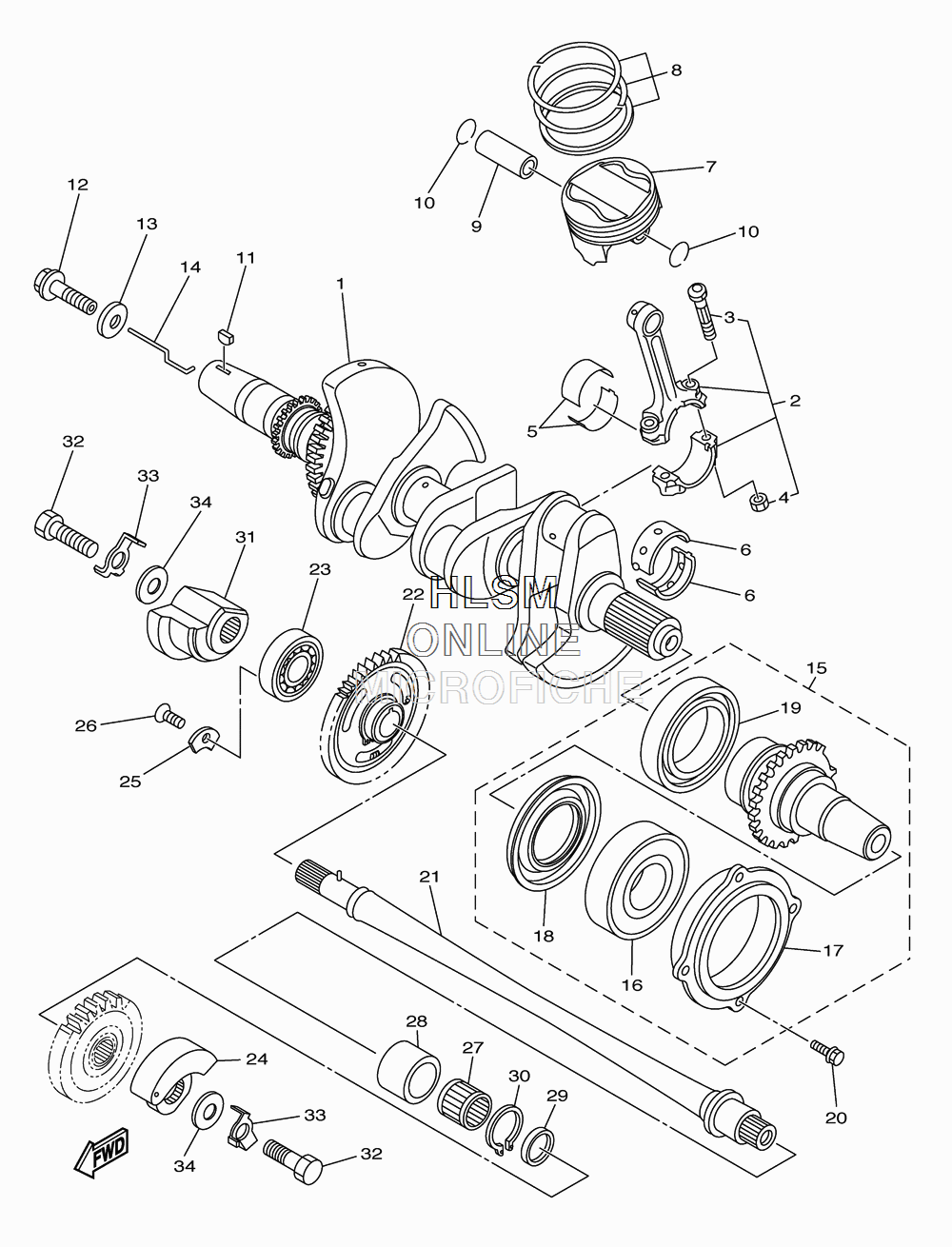

CRANKSHAFT W/ PISTON ASSY для Yamaha VECTOR LTX - 2012 года выпуска`
-
№АртикулНазвание
-
18GL-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
28GL-11650-00-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
35JW-11654-00-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
490179-08327-00 ...NUT, SPEC'L SHAPE...NUT, SPEC'L SHAPE
-
55JW-11656-20-00 PLANE BEARING, CONNECTING ROD (BROWN)PLANE BEARING, CONNECTING ROD (BROWN)
-
55JW-11656-30-00 PLANE BEARING, CONNECTING ROD (GREEN)PLANE BEARING, CONNECTING ROD (GREEN)
-
55JW-11656-A0-00 PLANE BEARING, CONNECTING ROD (WHITE)PLANE BEARING, CONNECTING ROD (WHITE)
-
55JW-11656-40-00 PLANE BEARING, CONNECTING ROD (YELLOW)PLANE BEARING, CONNECTING ROD (YELLOW)
-
55JW-11656-00-00 PLANE BEARING, CONNECTING ROD (BLUE)PLANE BEARING, CONNECTING ROD (BLUE)
-
55JW-11656-10-00 PLANE BEARING, CONNECTING ROD (BLACK)PLANE BEARING, CONNECTING ROD (BLACK)
-
63LD-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (BROWN)PLANE BEARING, CRANKSHAFT 1 (BROWN)
-
63LD-11416-30-00 PLANE BEARING, CRANKSHAFT 1 (GREEN)PLANE BEARING, CRANKSHAFT 1 (GREEN)
-
63LD-11416-40-00 PLANE BEARING, CRANKSHAFT 1 (YELLOW)PLANE BEARING, CRANKSHAFT 1 (YELLOW)
-
63LD-11416-50-00 PLANE BEARING, CRANKSHAFT 1 (PINK)PLANE BEARING, CRANKSHAFT 1 (PINK)
-
63LD-11416-60-00 PLANE BEARING, CRANKSHAFT 1 (RED)PLANE BEARING, CRANKSHAFT 1 (RED)
-
63LD-11416-70-00 PLANE BEARING, CRANKSHAFT 1 (WHITE)PLANE BEARING, CRANKSHAFT 1 (WHITE)
-
63LD-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (BLACK)PLANE BEARING, CRANKSHAFT 1 (BLACK)
-
78GL-11631-00-00 PISTON (STD)PISTON (STD)
-
88GL-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
98GL-11633-00-00 PIN, PISTONPIN, PISTON
-
1093450-19095-00 CIRCLIPCIRCLIP
-
1190280-03045-00 KEY, WOODRUFFKEY, WOODRUFF
-
1290105-12032-00 BOLT, FLANGEBOLT, FLANGE
-
1390201-121H0-00 WASHER, PLATEWASHER, PLATE
-
1459J-11455-00-00 SHAFT 1SHAFT 1
-
158GL-11406-00-00 SHAFT ASSYSHAFT ASSY
-
1693306-30721-00 ...BEARING...BEARING
-
178ES-16775-00-00 ...HOUSING, BEARING...HOUSING, BEARING
-
1893102-45008-00 ...OIL SEAL...OIL SEAL
-
1993306-01003-00 ...BEARING...BEARING
-
2095812-06020-00 BOLT, FLANGEBOLT, FLANGE
-
218ES-11407-02-00 SHAFT ASSY, 2SHAFT ASSY, 2
-
228ES-11530-00-00 BALANCER WEIGHT GEAR COMP.BALANCER WEIGHT GEAR COMP.
-
2393306-30323-00 BEARINGBEARING
-
248ES-11454-00-00 WEIGHT 1WEIGHT 1
-
254JT-15381-01-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
2690151-06024-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
2793310-42239-00 BEARINGBEARING
-
288ES-11428-01-00 BEARING 1BEARING 1
-
298ES-11478-00-00 COLLARCOLLAR
-
3093450-32152-00 CIRCLIPCIRCLIP
-
318ES-11464-00-00 WEIGHT 2WEIGHT 2
-
3297012-10025-00 BOLTBOLT
-
3390215-10003-00 WASHER, LOCKWASHER, LOCK
-
3490201-10591-00 WASHER, PLATEWASHER, PLATE
