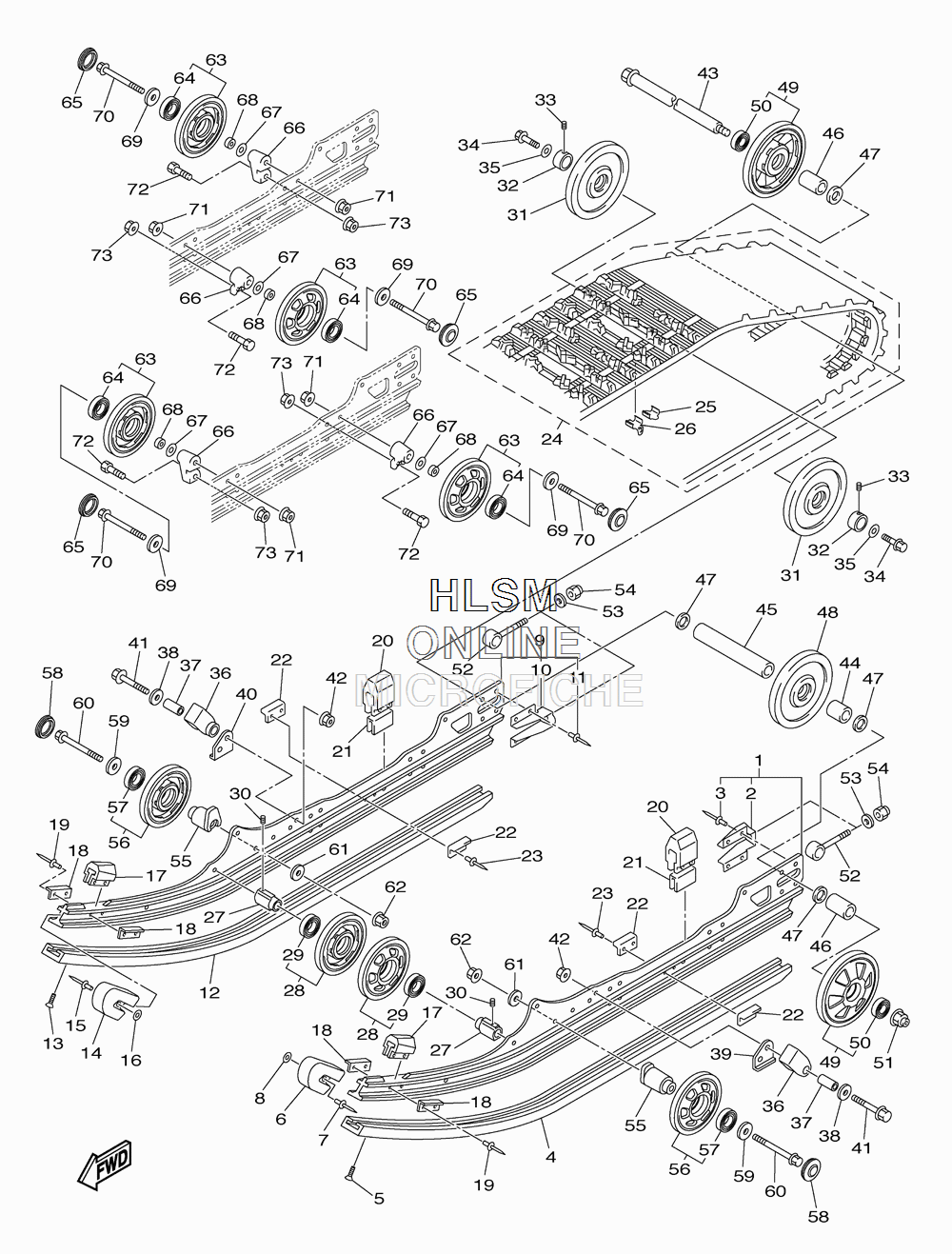

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha RS VENTURE GT - 2012 года выпуска`
-
№АртикулНазвание
-
18HX-47411-00-00 FRAME, SLIDING 1FRAME, SLIDING 1
-
28HX-4741B-00-00 ...BRACKET...BRACKET
-
38HX-47468-00-00 ...RIVET...RIVET
-
48HX-47421-00-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
590151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
68ED-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
790267-48194-00 RIVET, BLINDRIVET, BLIND
-
890201-047R8-00 WASHER, PLATEWASHER, PLATE
-
98HX-47412-00-00 FRAME, SLIDING 2FRAME, SLIDING 2
-
108HX-4741B-00-00 ...BRACKET...BRACKET
-
118HX-47468-00-00 ...RIVET...RIVET
-
128HX-47421-00-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
1390151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
148ED-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
1590267-48194-00 RIVET, BLINDRIVET, BLIND
-
1690201-047R8-00 WASHER, PLATEWASHER, PLATE
-
178ES-47456-00-00 DAMPER 1DAMPER 1
-
188K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
1990267-48199-00 RIVET, BLINDRIVET, BLIND
-
208AC-47457-00-00 DAMPER 2DAMPER 2
-
218AC-47341-00-00 SPACERSPACER
-
228AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
2390267-48199-00 RIVET, BLINDRIVET, BLIND
-
248ET-47110-30-00 TRACK ASSYTRACK ASSY
-
258HR-47113-09-00 ...PLATE, REINFORCEMENT...PLATE, REINFORCEMENT
-
268HR-47115-09-00 ...METAL, SLIDE...METAL, SLIDE
-
278ES-47319-01-00 COLLARCOLLAR
-
288HF-47310-10-00 SUSPENSION WHEEL ASSY (BLACK)SUSPENSION WHEEL ASSY (BLACK)
-
2993306-00507-00 ...BEARING...BEARING
-
3090113-06039-00 BOLT, SETBOLT, SET
-
318AC-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
328ES-47365-00-00 COLLAR 1COLLAR 1
-
3390113-06039-00 BOLT, SETBOLT, SET
-
3490109-10030-00 BOLTBOLT
-
3590201-10039-00 WASHER, PLATEWASHER, PLATE
-
368HF-47446-00-00 HOOK 1HOOK 1
-
3790387-10081-00 COLLARCOLLAR
-
3890201-10072-00 WASHER, PLATEWASHER, PLATE
-
398HF-47374-00-00 WASHER 1WASHER 1
-
408HF-47375-00-00 WASHER 2WASHER 2
-
4195812-10055-00 BOLT, FLANGEBOLT, FLANGE
-
4295602-10200-00 NUT, U FLANGENUT, U FLANGE
-
438L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
4490387-20015-00 COLLARCOLLAR
-
4590387-20016-00 COLLARCOLLAR
-
4690387-20019-00 COLLARCOLLAR
-
4790201-20022-00 WASHER, PLATEWASHER, PLATE
-
488CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
498HF-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
5093306-00444-00 ...BEARING...BEARING
-
5195602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
528DM-47479-00-00 COLLAR 3COLLAR 3
-
5392902-10600-00 WASHER, PLATEWASHER, PLATE
-
5495702-10300-00 NUT, NYLONNUT, NYLON
-
558ES-47419-00-00 BRACKET 7BRACKET 7
-
568HF-47310-10-00 SUSPENSION WHEEL ASSY (BLACK)SUSPENSION WHEEL ASSY (BLACK)
-
5793306-00507-00 ...BEARING...BEARING
-
588HF-47317-00-00 CAP, WHEELCAP, WHEEL
-
5990201-10038-00 WASHER, PLATEWASHER, PLATE
-
6095812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
6190201-10052-00 WASHER, PLATEWASHER, PLATE
-
6295602-10200-00 NUT, U FLANGENUT, U FLANGE
-
638HF-47310-10-00 SUSPENSION WHEEL ASSY (BLACK)SUSPENSION WHEEL ASSY (BLACK)
-
6493306-00507-00 ...BEARING...BEARING
-
658HF-47317-00-00 CAP, WHEELCAP, WHEEL
-
668CM-47419-10-00 BRACKET 7BRACKET 7
-
6790201-10714-00 WASHER, PLATEWASHER, PLATE
-
6890387-10031-00 COLLARCOLLAR
-
6990201-101U2-00 WASHER, PLATEWASHER, PLATE
-
7090105-10241-00 BOLT, FLANGEBOLT, FLANGE
-
7195602-10200-00 NUT, U FLANGENUT, U FLANGE
-
7290101-08063-00 BOLTBOLT
-
7395602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
