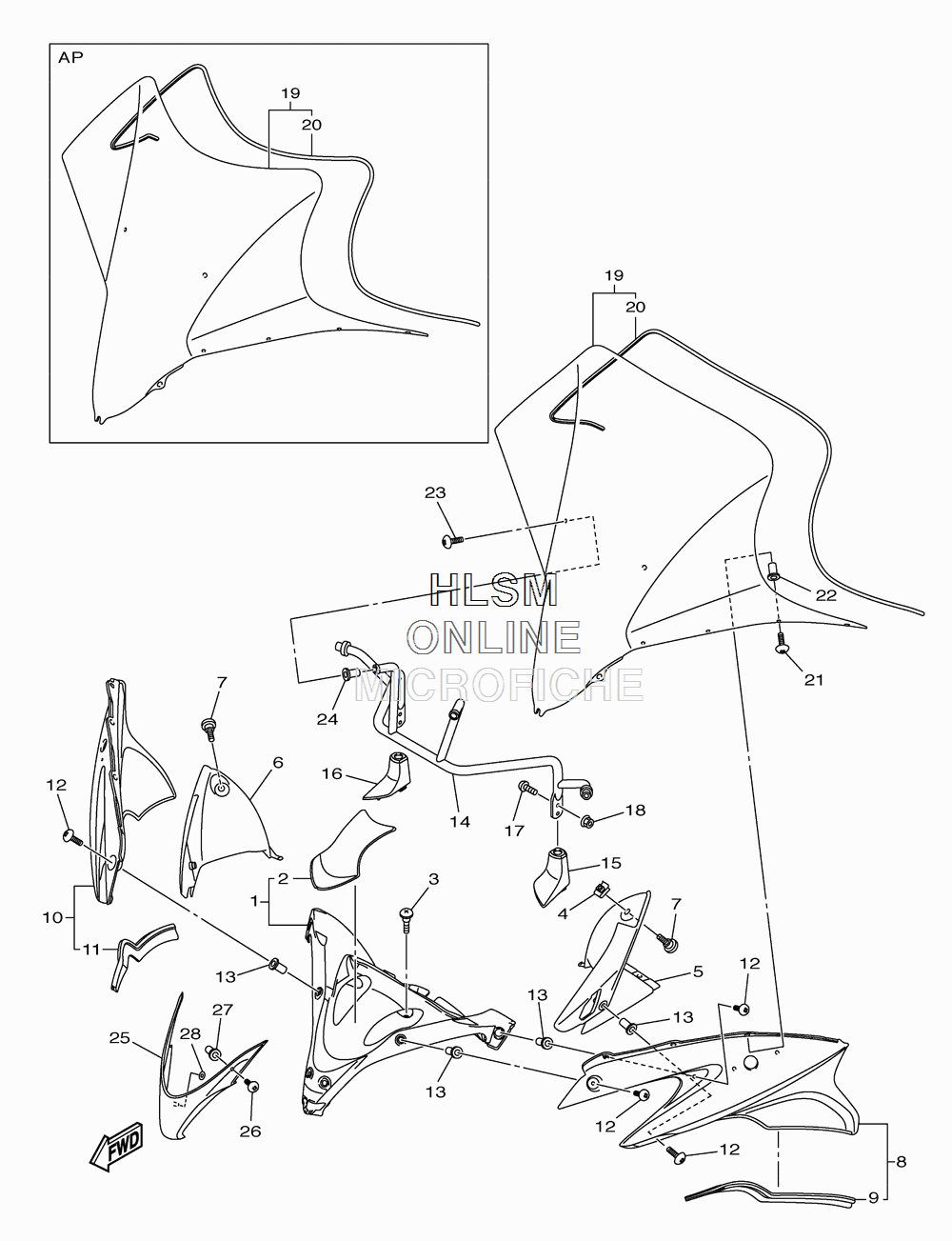

HOOD - WINDSHIELD ASSY для Yamaha RS VENTURE GT - 2012 года выпуска`
-
№АртикулНазвание
-
18FP-Y7725-00-00 COVER, HEADLIGHT ASSYCOVER, HEADLIGHT ASSY
-
28HF-77198-00-00 ...DAMPER 1...DAMPER 1
-
390154-06009-00 SCREW, BINDINGSCREW, BINDING
-
490183-06100-00 NUT, SPRINGNUT, SPRING
-
58FP-77185-00-00 PLATE 1PLATE 1
-
68FP-77186-00-00 PLATE 2PLATE 2
-
790154-06009-00 SCREW, BINDINGSCREW, BINDING
-
88HF-K723A-00-00 FAIRING 2FAIRING 2
-
98HF-K7165-00-00 ...TRIM 1...TRIM 1
-
108HF-K723B-00-00 FAIRING 3FAIRING 3
-
118HF-K7166-00-00 ...TRIM 2...TRIM 2
-
1290150-05024-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
1390179-05523-00 NUTNUT
-
148HX-77125-00-00 STAY 1STAY 1
-
158HF-77431-00-00 GROMMET 1GROMMET 1
-
168HF-77432-00-00 GROMMET 2GROMMET 2
-
1792012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1895602-06200-00 NUT-UNUT-U
-
198HF-K7210-00-00 WINDSHIELD COMP. (STD)WINDSHIELD COMP. (STD)
-
198HF-K7210-10-00 WINDSHIELD COMP. (OPT)WINDSHIELD COMP. (OPT)
-
208HF-K7213-00-00 ...TRIM, UPPER (STD)...TRIM, UPPER (STD)
-
208HF-K7213-10-00 ...TRIM, UPPER (OPT)...TRIM, UPPER (OPT)
-
2190149-05299-00 SCREWSCREW
-
2290179-05523-00 NUTNUT
-
2390150-05024-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
2490179-05003-00 NUTNUT
-
258HF-K7231-00-00 FAIRINGFAIRING
-
2690150-05024-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
2790179-05523-00 NUTNUT
-
2890183-06011-00 NUT, SPRINGNUT, SPRING
