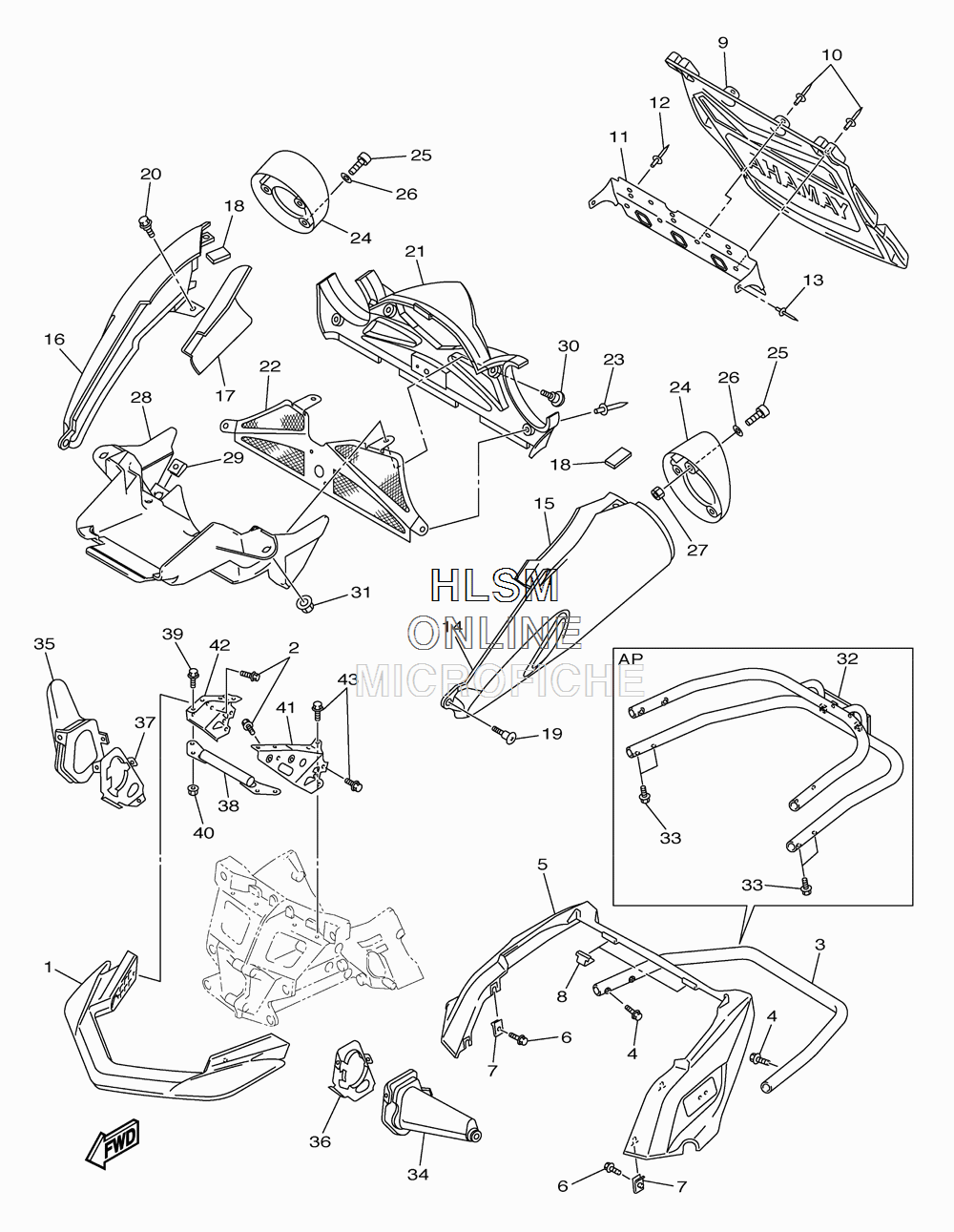

BUMPER - FRONT AND REAR для Yamaha RS VENTURE GT - 2012 года выпуска`
-
№АртикулНазвание
-
18FA-77511-01-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
295812-08016-00 BOLT, FLANGE (JN5)BOLT, FLANGE (JN5)
-
38FP-77541-01-00 BUMPER, REAR 1BUMPER, REAR 1
-
495822-08020-00 BOLT, FLANGE(8AB)BOLT, FLANGE(8AB)
-
58FA-77542-00-00 BUMPER, REAR 2BUMPER, REAR 2
-
695802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
790183-06053-00 NUT, SPRING (4ES)NUT, SPRING (4ES)
-
88HV-7717H-00-00 TAPE 4TAPE 4
-
98GW-K7595-00-00 FLAPFLAP
-
1090267-47187-00 RIVET, BLINDRIVET, BLIND
-
118GW-77596-01-00 STOPPER, FLAPSTOPPER, FLAP
-
1290267-48095-00 RIVET, BLIND (4.8X12.6 SILVER)RIVET, BLIND (4.8X12.6 SILVER)
-
1390267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
148FP-77551-01-33 PROTECTOR 1 (YAMAHA BLACK)PROTECTOR 1 (YAMAHA BLACK)
-
148FP-77551-01-P0 PROTECTOR 1 (DEEP RED METALLIC K)PROTECTOR 1 (DEEP RED METALLIC K)
-
158HV-77261-00-00 LINING, SHROUD 1LINING, SHROUD 1
-
168FP-77552-01-33 PROTECTOR 2 (YAMAHA BLACK)PROTECTOR 2 (YAMAHA BLACK)
-
168FP-77552-01-P0 PROTECTOR 2 (DEEP RED METALLIC K)PROTECTOR 2 (DEEP RED METALLIC K)
-
178HV-77262-00-00 LINING, SHROUD 2LINING, SHROUD 2
-
188HV-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
1990154-06009-00 SCREW, BINDINGSCREW, BINDING
-
2090109-06220-00 BOLTBOLT
-
218FP-84516-01-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
228FP-77441-00-00 LOUVER 1LOUVER 1
-
2390267-47187-00 RIVET, BLINDRIVET, BLIND
-
248FP-77517-00-00 CAPCAP
-
2591314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2692990-06200-00 ...WASHER, PLAIN...WASHER, PLAIN
-
2795380-06600-00 NUT, HEXAGONNUT, HEXAGON
-
288FP-2117E-01-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
2990183-06053-00 NUT, SPRING (4ES)NUT, SPRING (4ES)
-
3090109-06220-00 BOLTBOLT
-
3195602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
328ET-77541-01-00 BUMPER, REAR 1BUMPER, REAR 1
-
3395822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
348FU-2198F-01-00 COVER 1COVER 1
-
358FU-2198J-01-00 COVER 3COVER 3
-
368FU-2195E-01-00 PLATE, STEERING BRACKET 1PLATE, STEERING BRACKET 1
-
378FU-2195F-01-00 PLATE, STEERING BRACKET 2PLATE, STEERING BRACKET 2
-
388FP-21979-00-00 BRACKET, FRONT HOODBRACKET, FRONT HOOD
-
3995822-06014-00 BOLT, FLANGEBOLT, FLANGE
-
4095702-06500-00 NUT, FLANGENUT, FLANGE
-
418FA-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
428FA-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
4395822-08016-00 BOLT, FLANGEBOLT, FLANGE
