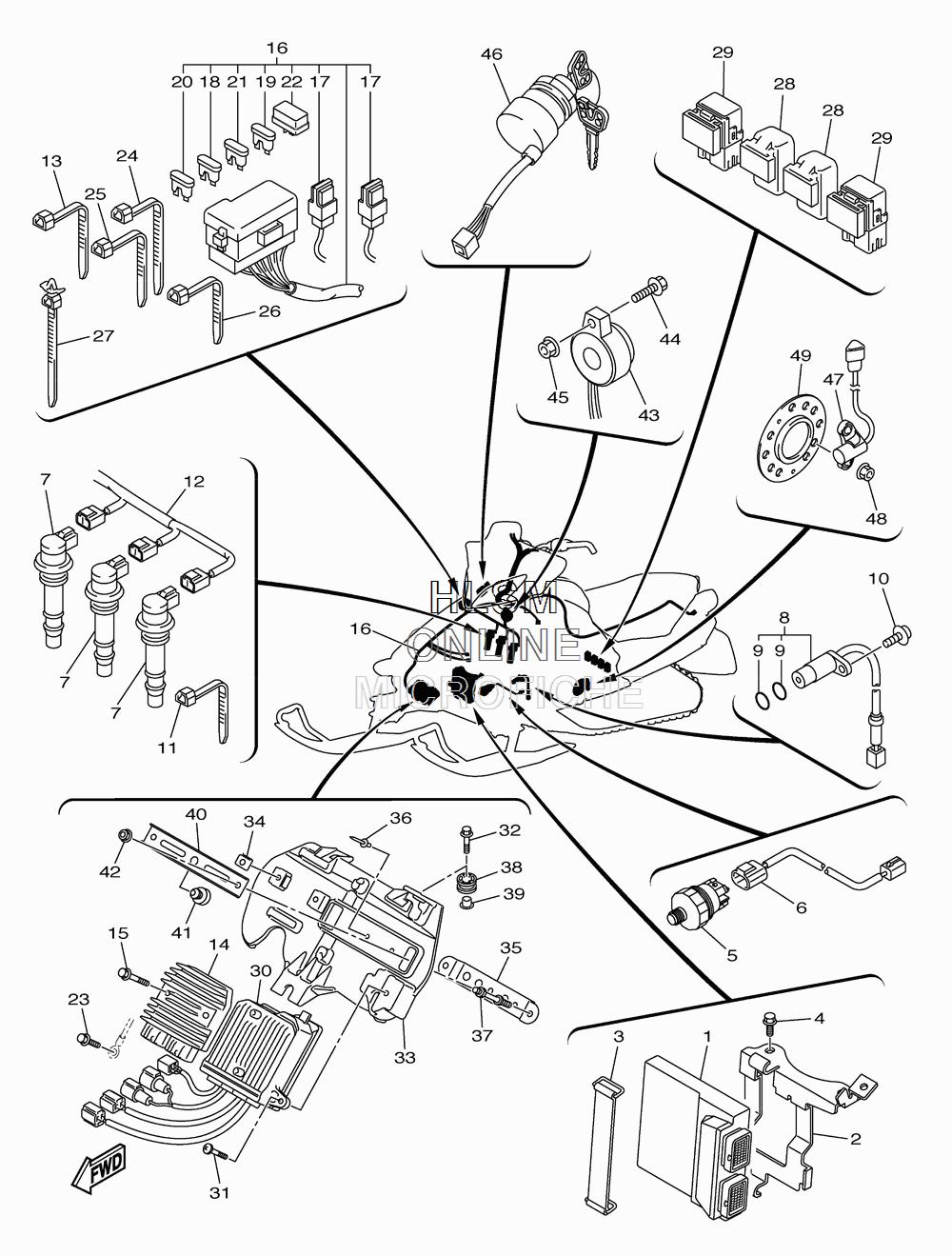

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha RS VENTURE GT - 2012 года выпуска`
-
№АртикулНазвание
-
18HX-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
28HF-85991-00-00 BRACKET, UNITBRACKET, UNIT
-
32T4-82131-00-00 BAND, BATTERYBAND, BATTERY
-
495822-06010-00 BOLT, FLANGEBOLT, FLANGE
-
58FP-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
68GL-82318-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
78ES-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
88GL-81670-00-00 PICK-UP ASSYPICK-UP ASSY
-
95VY-8A8E1-00-00 ...O-RING 1...O-RING 1
-
1090110-06218-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1190464-13073-00 CLAMPCLAMP
-
128HV-81515-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
1390464-13073-00 CLAMPCLAMP
-
141D7-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
1595802-06025-00 BOLT, FLANGEBOLT, FLANGE
-
168HX-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
175PS-82151-00-00 ...FUSE (40A)...FUSE (40A)
-
185JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
195JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
205JJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
215JJ-82151-50-00 ...FUSE...FUSE
-
224WA-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
2395802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2490464-15195-00 CLAMPCLAMP
-
2590464-13073-00 CLAMPCLAMP
-
2690464-13077-00 CLAMPCLAMP
-
2790464-12036-00 CLAMPCLAMP
-
285DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
298HG-81950-09-00 RELAY ASSYRELAY ASSY
-
308HG-859A0-00-00 POWER STEERING CONTROL UNIT ASSYPOWER STEERING CONTROL UNIT ASSY
-
3198902-06020-00 SCREW, BINDSCREW, BIND
-
3290119-06105-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
338HG-2830X-00-00 BRACKET, CONTROL UNITBRACKET, CONTROL UNIT
-
3490183-06053-00 NUT, SPRING (4ES)NUT, SPRING (4ES)
-
358HG-2836A-00-00 BRACKET 1BRACKET 1
-
3690267-48059-00 RIVET, BLINDRIVET, BLIND
-
378HG-82133-00-00 SCREW, FITTINGSCREW, FITTING
-
3890480-12023-00 GROMMETGROMMET
-
3990387-06203-00 COLLARCOLLAR
-
408HG-81948-00-00 BRACKETBRACKET
-
4122W-24741-00-00 PAD, SEATPAD, SEAT
-
4295702-06500-00 NUT, FLANGENUT, FLANGE
-
438GL-83383-00-00 BUZZERBUZZER
-
4490159-05035-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
4595702-05500-00 NUT, FLANGENUT, FLANGE
-
468HV-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
478HG-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
4895702-08300-00 NUT, LOCKNUT, LOCK
-
498EK-47551-00-00 HOUSING, FRONT AXLEHOUSING, FRONT AXLE
