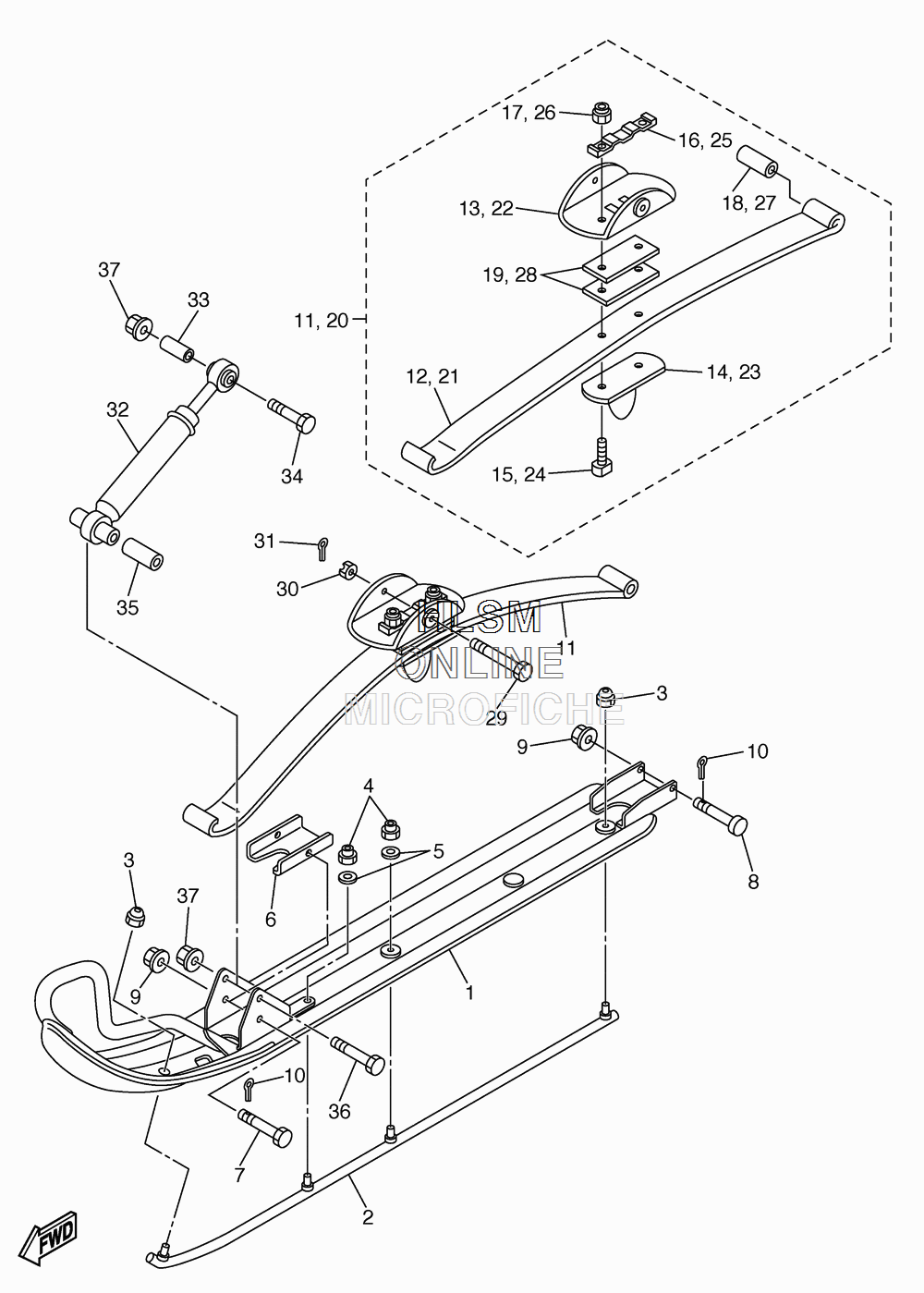

SUSPENSION - FRONT W/ SKI ASSY для Yamaha BRAVO 250 - 2011 года выпуска`
-
№АртикулНазвание
-
18BD-23710-00-00 SKI COMP. 1SKI COMP. 1
-
28E3-23731-01-00 RUNNER 1RUNNER 1
-
395607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
490185-08055-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
592907-08600-00 WASHER, PLATEWASHER, PLATE
-
6888-23735-00-00 PLATE, WEAR 1PLATE, WEAR 1
-
790102-08028-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
890102-08027-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
995707-08300-00 NUT, NYLONNUT, NYLON
-
1091401-20015-00 PIN, COTTERPIN, COTTER
-
118BD-23760-00-00 SPRING ASSY 1SPRING ASSY 1
-
128BD-23761-00-00 LEAF 1LEAF 1
-
138G6-23766-00-00 SADDLE 1SADDLE 1
-
14878-23768-00-00 SEAT, SPRING 1SEAT, SPRING 1
-
158BD-23767-00-00 BOLTBOLT
-
1690215-10155-00 WASHER, LOCKWASHER, LOCK
-
1790185-10085-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
188BD-2376B-00-00 BUSHBUSH
-
198BD-23787-00-00 SPACERSPACER
-
208BD-23770-00-00 SPRING ASSY 2SPRING ASSY 2
-
218BD-23761-00-00 LEAF 1LEAF 1
-
228G6-23766-00-00 SADDLE 1SADDLE 1
-
23878-23768-00-00 SEAT, SPRING 1SEAT, SPRING 1
-
248BD-23767-00-00 BOLTBOLT
-
2590215-10155-00 WASHER, LOCKWASHER, LOCK
-
2690185-10085-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
278BD-2376B-00-00 BUSHBUSH
-
288BD-23787-00-00 SPACERSPACER
-
2990102-12030-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
3095307-12900-00 NUTNUT
-
3191401-30025-00 PIN, COTTERPIN, COTTER
-
328J6-23350-00-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
3390387-08262-00 COLLARCOLLAR
-
3497007-08055-00 BOLTBOLT
-
3590387-08224-00 COLLARCOLLAR
-
3697007-08070-00 BOLTBOLT
-
3795707-08300-00 NUT, NYLONNUT, NYLON
