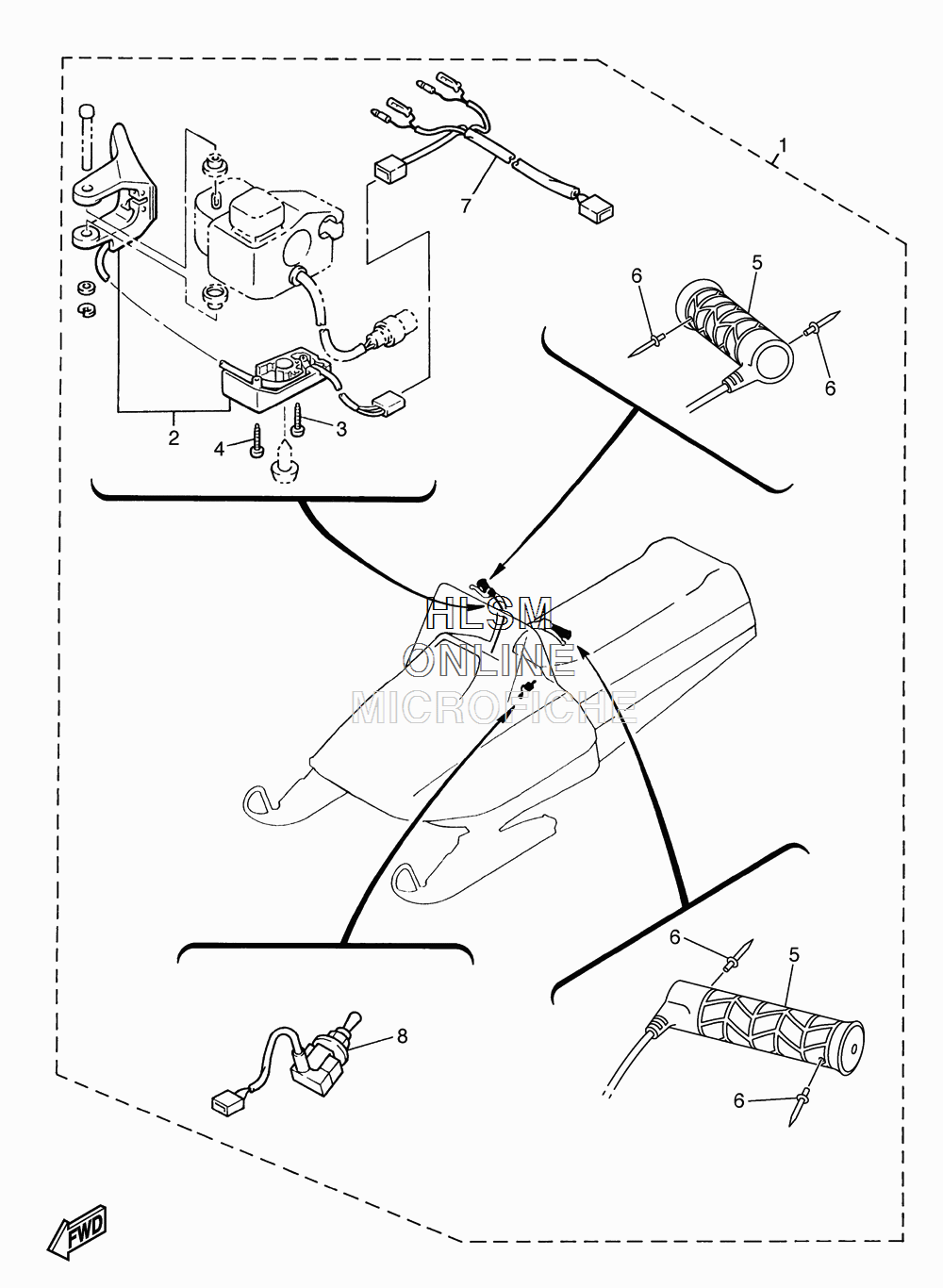

THUMB WARMER KIT (OPT) для Yamaha BRAVO 250 - 2011 года выпуска`
-
№АртикулНазвание
-
18BD-W8293-03-00 THUMB WARMER KITTHUMB WARMER KIT
-
28AU-82970-02-00 THUMB WARMER ASSYTHUMB WARMER ASSY
-
397706-30620-00 SCREW, TAPPINGSCREW, TAPPING
-
497707-30630-00 SCREW, TAPPINGSCREW, TAPPING
-
58DX-26240-01-00 GRIP ASSYGRIP ASSY
-
690267-48014-00 RIVET, BLIND (4.8X15.1 BLACK)RIVET, BLIND (4.8X15.1 BLACK)
-
78BD-82318-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
88BE-82917-00-00 SWITCHSWITCH
Все узлы модели:
- AIR SHROUD W/ FAN
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CARBURETOR ASSY
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CONSOLE ASSY
- CRANKCASE ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- FUEL TANK ASSY 2
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - COLOR CHART
- OIL PUMP ASSY
- OIL PUMP DRIVE GEAR
- OIL TANK ASSY
- REAR VIEW MIRROR ASSY (OPTION)
- SEAT ASSY
- STARTER - REDUCTION GEAR W/ CLUTCH ASSY
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2
- • THUMB WARMER KIT (OPT)
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
