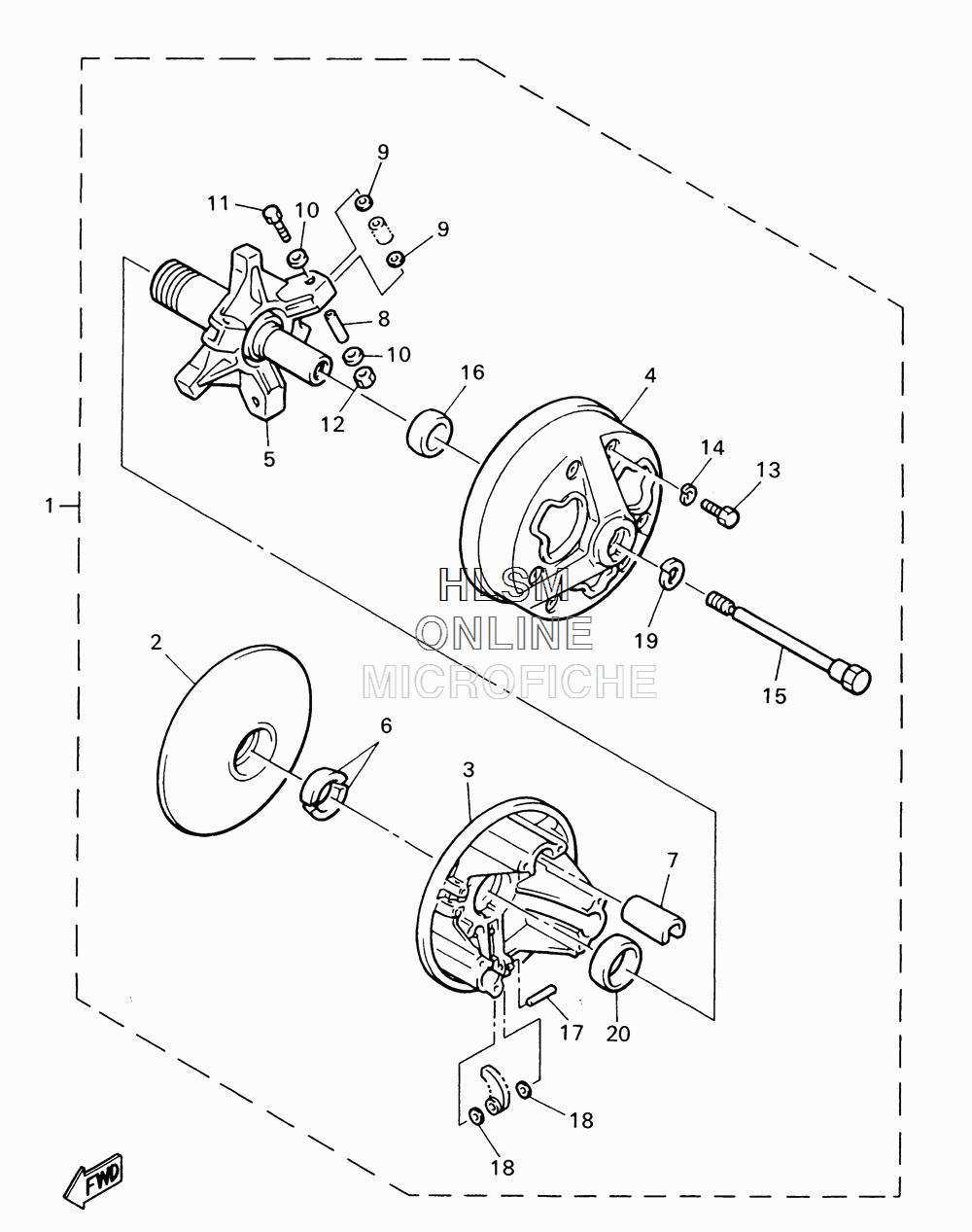

CLUTCH - REPAIR KIT (OPTION) для Yamaha BRAVO 250 - 2011 года выпуска
-
№АртикулНазвание
-
189X-17601-09-00 CLUTCH REPAIR KITCLUTCH REPAIR KIT
-
284J-17611-00-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
38V0-17621-01-00 SHEAVE, PRIMARY SLIDINGSHEAVE, PRIMARY SLIDING
-
48V0-17631-00-00 CAPCAP
-
58V0-17640-02-00 SPIDER COMPLETESPIDER COMPLETE
-
68V0-17639-00-00 STOPPERSTOPPER
-
788X-17653-00-00 SLIDERSLIDER
-
890387-057W5-00 COLLARCOLLAR
-
990202-08205-00 WASHER, PLATEWASHER, PLATE
-
1090201-050P9-00 WASHER, PLATEWASHER, PLATE
-
1197027-05035-00 BOLT, HEXAGONBOLT, HEXAGON
-
1295617-05100-00 NUT, UNUT, U
-
1397017-06030-00 BOLTBOLT
-
1492907-06600-00 WASHER, PLATEWASHER, PLATE
-
158V0-17647-00-00 BOLT (L=156.5MM)BOLT (L=156.5MM)
-
1690389-28032-00 BUSH, SPEC'L SHAPEBUSH, SPEC'L SHAPE
-
1793607-44190-00 PIN, DOWELPIN, DOWEL
-
1890201-077F5-00 WASHER, PLATEWASHER, PLATE
-
1992907-16100-00 WASHERWASHER
-
2090389-40029-00 BUSH, SPEC'L SHAPEBUSH, SPEC'L SHAPE
