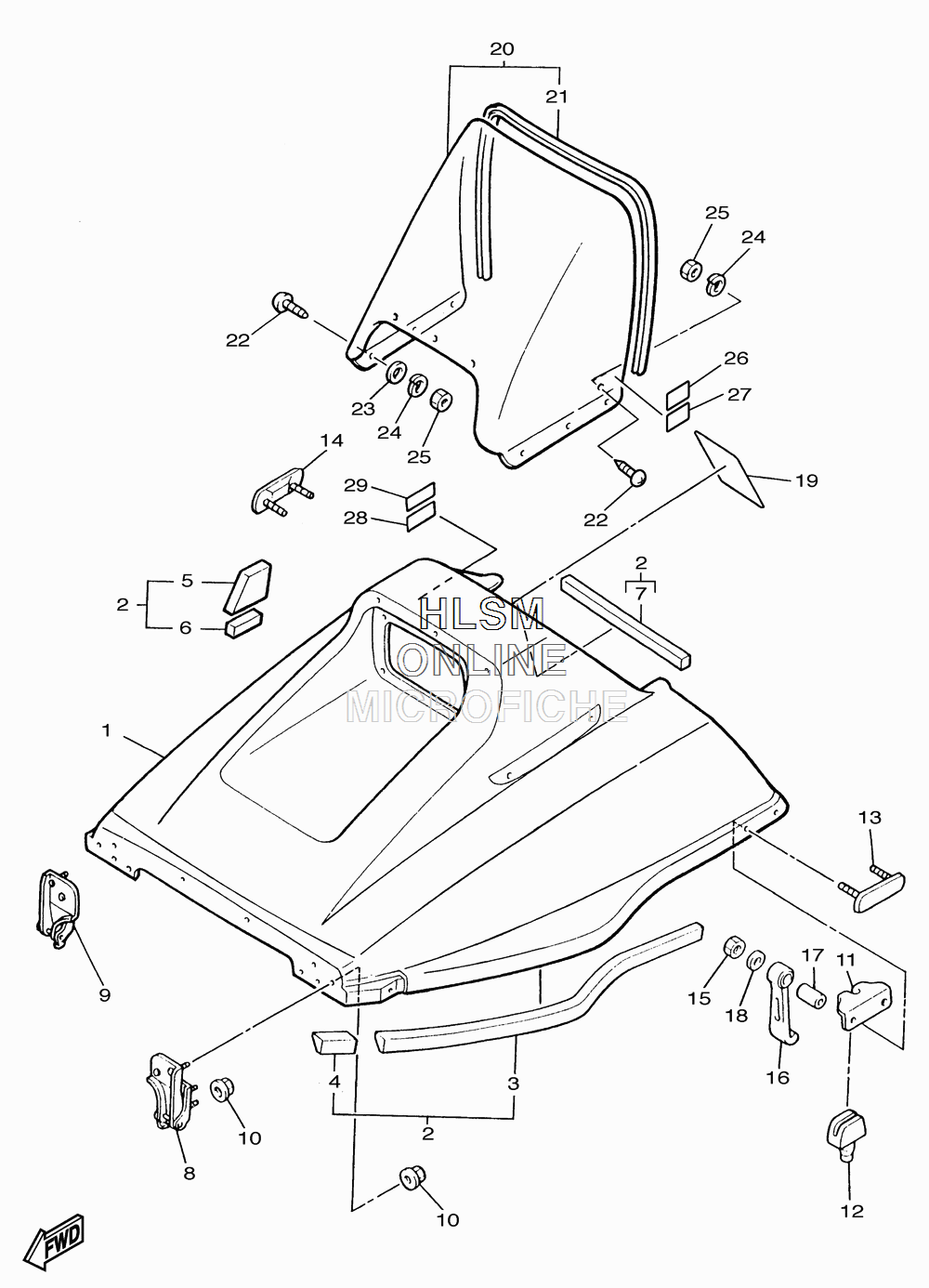

HOOD - WINDSHIELD ASSY для Yamaha BRAVO 250 - 2011 года выпуска`
-
№АртикулНазвание
-
18BD-77111-40-00 SHROUDSHROUD
-
28BD-W7726-00-00 LINING SETLINING SET
-
38X8-21965-00-00 PATCH 5PATCH 5
-
480F-21966-00-00 PATCH 6PATCH 6
-
580F-77261-00-00 LINING, SHROUD 1LINING, SHROUD 1
-
680F-77262-00-00 LINING, SHROUD 2LINING, SHROUD 2
-
780F-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
88R4-77140-00-00 HINGE ASSYHINGE ASSY
-
98R4-7714A-00-00 HINGE ASSY 2HINGE ASSY 2
-
1095707-06500-00 NUT, FLANGENUT, FLANGE
-
118R4-77136-00-00 CLAMP 2CLAMP 2
-
128R4-77188-00-00 STOPPERSTOPPER
-
1380F-77185-00-00 PLATE 1PLATE 1
-
1480F-77186-00-00 PLATE 2PLATE 2
-
1595607-06100-00 NUT, UNUT, U
-
168R4-77171-00-00 BODY, LATCH 1BODY, LATCH 1
-
1790387-06027-00 COLLARCOLLAR
-
1890201-06380-00 WASHER PLAINWASHER PLAIN
-
1987S-77761-10-00 LABEL, WARNING 1LABEL, WARNING 1
-
2080J-77210-10-00 WINDSHIELD COMP.WINDSHIELD COMP.
-
2187T-77213-10-00 TRIM, UPPERTRIM, UPPER
-
2290164-05007-00 SCREW, TAPPINGSCREW, TAPPING
-
2392907-05200-00 WASHERWASHER
-
2492907-05100-00 WASHER, SPRINGWASHER, SPRING
-
2595307-05600-00 NUTNUT
-
264B5-2815K-00-00 LABEL, NOTICE WINDSHIELD 1LABEL, NOTICE WINDSHIELD 1
-
274B5-2815K-10-00 LABEL, NOTICE WINDSHIELD 1LABEL, NOTICE WINDSHIELD 1
-
288AF-47578-00-00 LABEL 1LABEL 1
-
298AE-1417E-00-00 LABEL, CAUTIONLABEL, CAUTION
