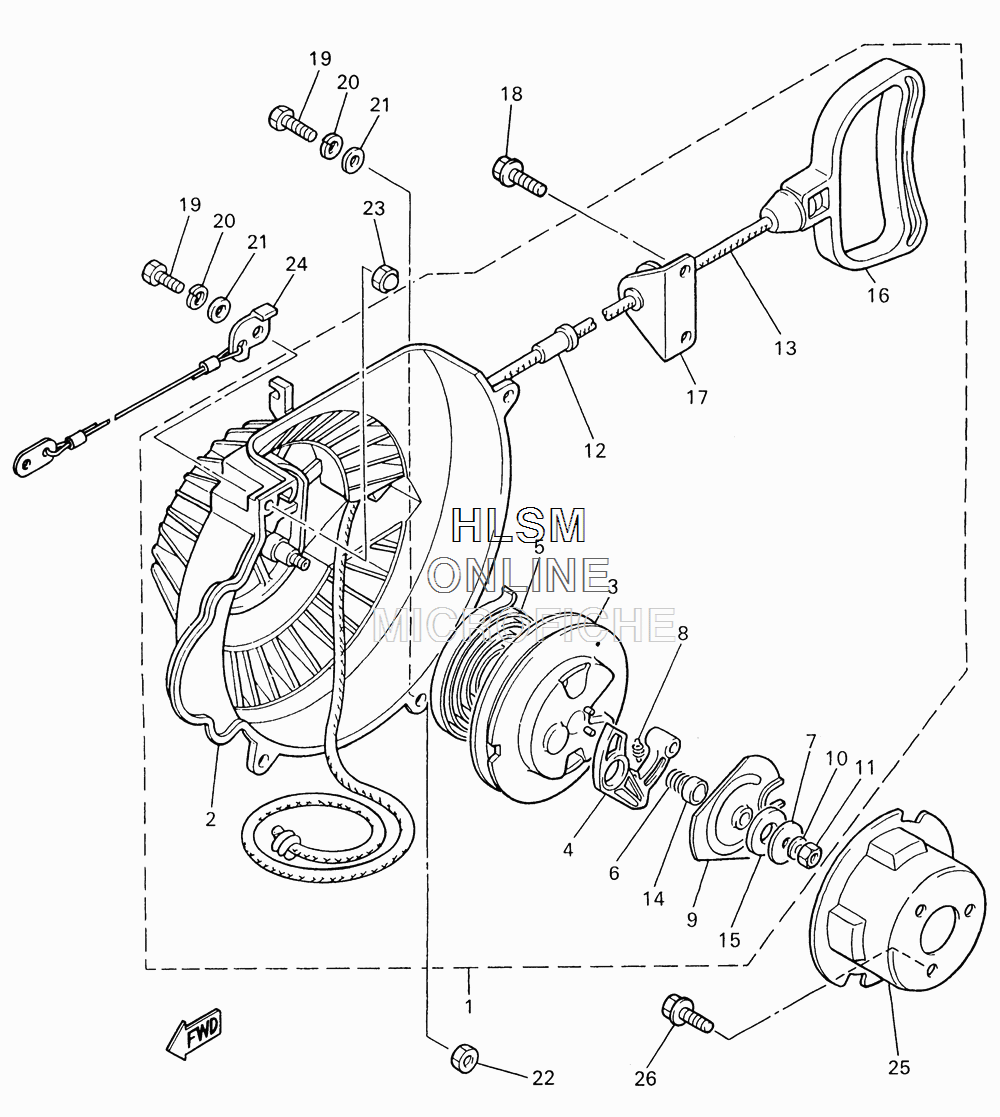

STARTER - REDUCTION GEAR W/ CLUTCH ASSY для Yamaha BRAVO 250 - 2011 года выпуска`
-
№АртикулНазвание
-
18R4-15710-01-00 STARTER ASSYSTARTER ASSY
-
28R4-15711-00-00 CASE, STARTERCASE, STARTER
-
38F3-15714-01-00 DRUM, SHEAVEDRUM, SHEAVE
-
48F3-15741-01-00 PAWL, DRIVEPAWL, DRIVE
-
58F3-15713-01-00 SPRING, STARTERSPRING, STARTER
-
68F3-15715-00-00 SPRING, FRICTIONSPRING, FRICTION
-
78F3-15739-01-00 WASHER, THRUSTWASHER, THRUST
-
88F3-15734-00-00 SPRING, RETURNSPRING, RETURN
-
98F3-15716-03-00 PLATE, DRIVEPLATE, DRIVE
-
1092901-06100-00 WASHER, SPRINGWASHER, SPRING
-
1195301-06700-00 NUTNUT
-
128F3-15758-00-00 GUIDE, ROPEGUIDE, ROPE
-
138F3-15751-00-00 WIRE, STARTERWIRE, STARTER
-
148G5-15716-00-00 COLLARCOLLAR
-
158G5-15739-00-00 WASHER, THRUSTWASHER, THRUST
-
168R4-15755-00-00 HANDLE, STARTERHANDLE, STARTER
-
178R4-15788-01-00 HOLDER, HANDLEHOLDER, HANDLE
-
1895807-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1997007-06025-00 BOLTBOLT
-
2092907-06100-00 WASHER, SPRINGWASHER, SPRING
-
2192907-06600-00 WASHER, PLATEWASHER, PLATE
-
2295307-06600-00 NUTNUT
-
2390176-06038-00 NUT, CROWNNUT, CROWN
-
248R4-77118-00-00 STOPPER, SHROUDSTOPPER, SHROUD
-
2581L-15723-00-00 PULLEY, STARTERPULLEY, STARTER
-
2695807-08012-00 BOLT, FLANGEBOLT, FLANGE
