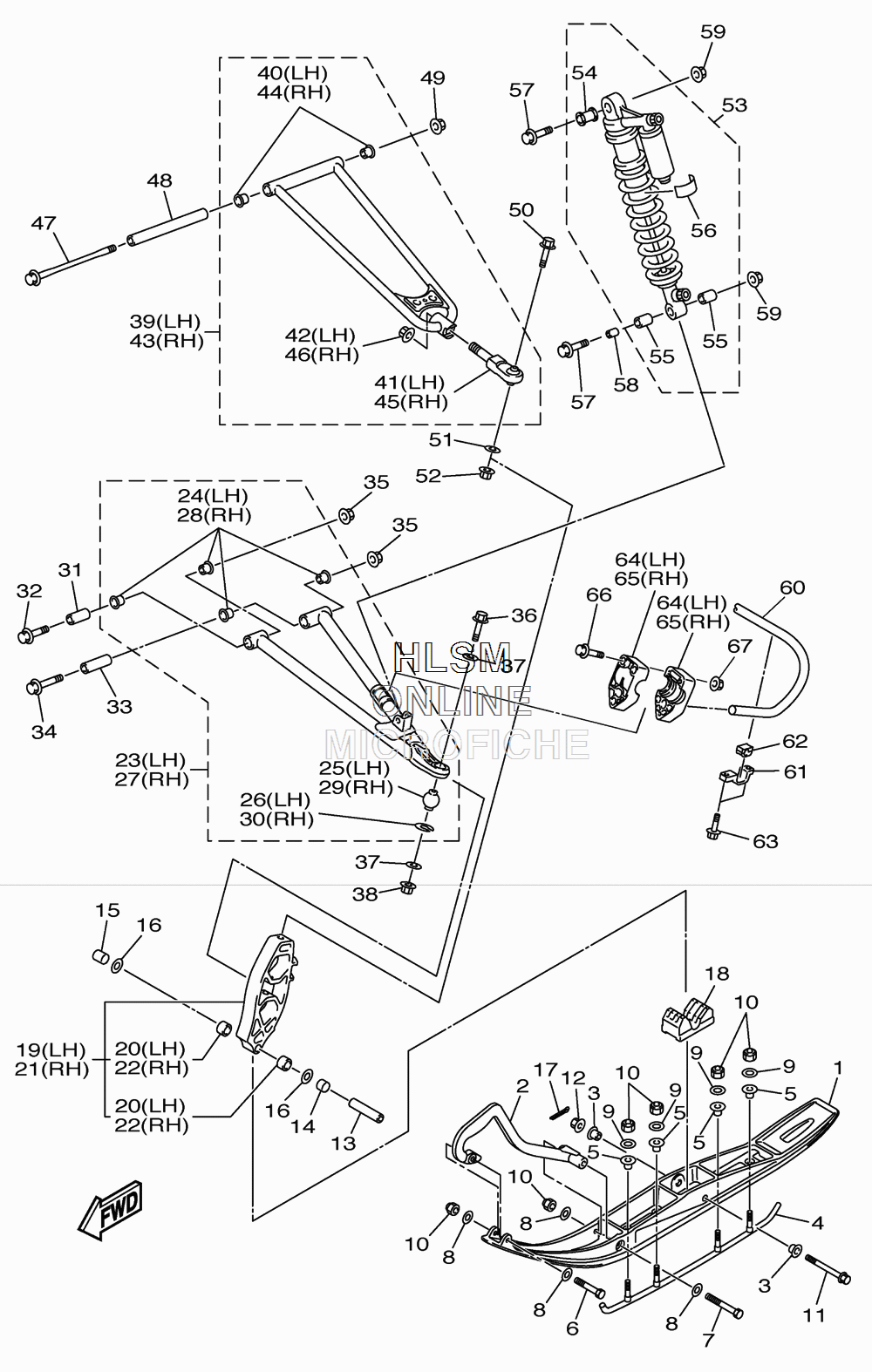

SUSPENSION - FRONT W/ SKI ASSY для Yamaha PHAZER GT - 2010 года выпуска`
-
№АртикулНазвание
-
18EX-23711-00-BK SKI 1 (BLACK)SKI 1 (BLACK)
-
28DM-F3712-00-00 BLACK 8DM HANDLE PLASTICBLACK 8DM HANDLE PLASTIC
-
38EX-F3754-00-00 COLLAR, 1COLLAR, 1
-
48GK-F3731-00-00 RUNNER 8RUNNER 8
-
58EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
69702M-08055-00 BOLTBOLT
-
79702M-08100-00 BOLTBOLT
-
890201-08784-00 WASHER, PLATEWASHER, PLATE
-
990201-086P8-00 WASHER, PLATEWASHER, PLATE
-
109570M-08300-00 NUT, NYLONNUT, NYLON
-
1190105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
1295602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
1390387-1012H-00 COLLARCOLLAR
-
1490387-16017-00 COLLARCOLLAR
-
1590387-16018-00 COLLARCOLLAR
-
1690201-16022-00 WASHER, PLATEWASHER, PLATE
-
1791401-20020-00 PIN, COTTERPIN, COTTER
-
188GK-23743-00-00 STOPPER 1STOPPER 1
-
198GK-23501-01-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
2090384-16N51-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
218GK-23502-01-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
2290384-16N51-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
238GK-23570-C0-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
2490381-16003-00 BUSH, SOLIDBUSH, SOLID
-
258GK-23579-01-00 BALL JOINT 2BALL JOINT 2
-
2699009-35700-00 CIRCLIPCIRCLIP
-
278GK-23580-C0-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
2890381-16003-00 BUSH, SOLIDBUSH, SOLID
-
298GK-23579-01-00 BALL JOINT 2BALL JOINT 2
-
3099009-35700-00 CIRCLIPCIRCLIP
-
3190387-10093-00 COLLARCOLLAR
-
3290105-10211-00 BOLT, FLANGEBOLT, FLANGE
-
3390387-10074-00 COLLARCOLLAR
-
3490105-10212-00 BOLT, FLANGEBOLT, FLANGE
-
3595602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
3690105-10210-00 BOLT, FLANGEBOLT, FLANGE
-
3790201-10051-00 WASHER, PLATEWASHER, PLATE
-
3895602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
398GK-23540-C0-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
4090381-15003-00 BUSH, SOLIDBUSH, SOLID
-
418GK-23549-00-00 BALL JOINT 1BALL JOINT 1
-
4295602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
438GK-23550-C0-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
4490381-15003-00 BUSH, SOLIDBUSH, SOLID
-
458GK-23549-00-00 BALL JOINT 1BALL JOINT 1
-
4695602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4790105-10213-00 BOLT, FLANGEBOLT, FLANGE
-
4890387-10073-00 COLLARCOLLAR
-
4995602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
5091312-10045-00 BOLTBOLT
-
5190201-10052-00 WASHER, PLATEWASHER, PLATE
-
5295602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
538GK-2376A-50-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
548GN-2331R-00-00 DAMPER, BUSH BDAMPER, BUSH B
-
5590384-15N51-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
564AA-22259-70-00 LABEL, WARNINGLABEL, WARNING
-
5795812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
5890387-10024-00 COLLARCOLLAR
-
5995602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
608GK-2386E-10-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
618GK-2386C-00-00 HOLDER, STABILIZER FRONTHOLDER, STABILIZER FRONT
-
628GK-2386G-10-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
6395812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
648GK-2385L-10-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
658GK-2385M-10-00 JOINT, STABILIZER 2JOINT, STABILIZER 2
-
6695812-06040-00 BOLT, FLANGEBOLT, FLANGE
-
6795602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
