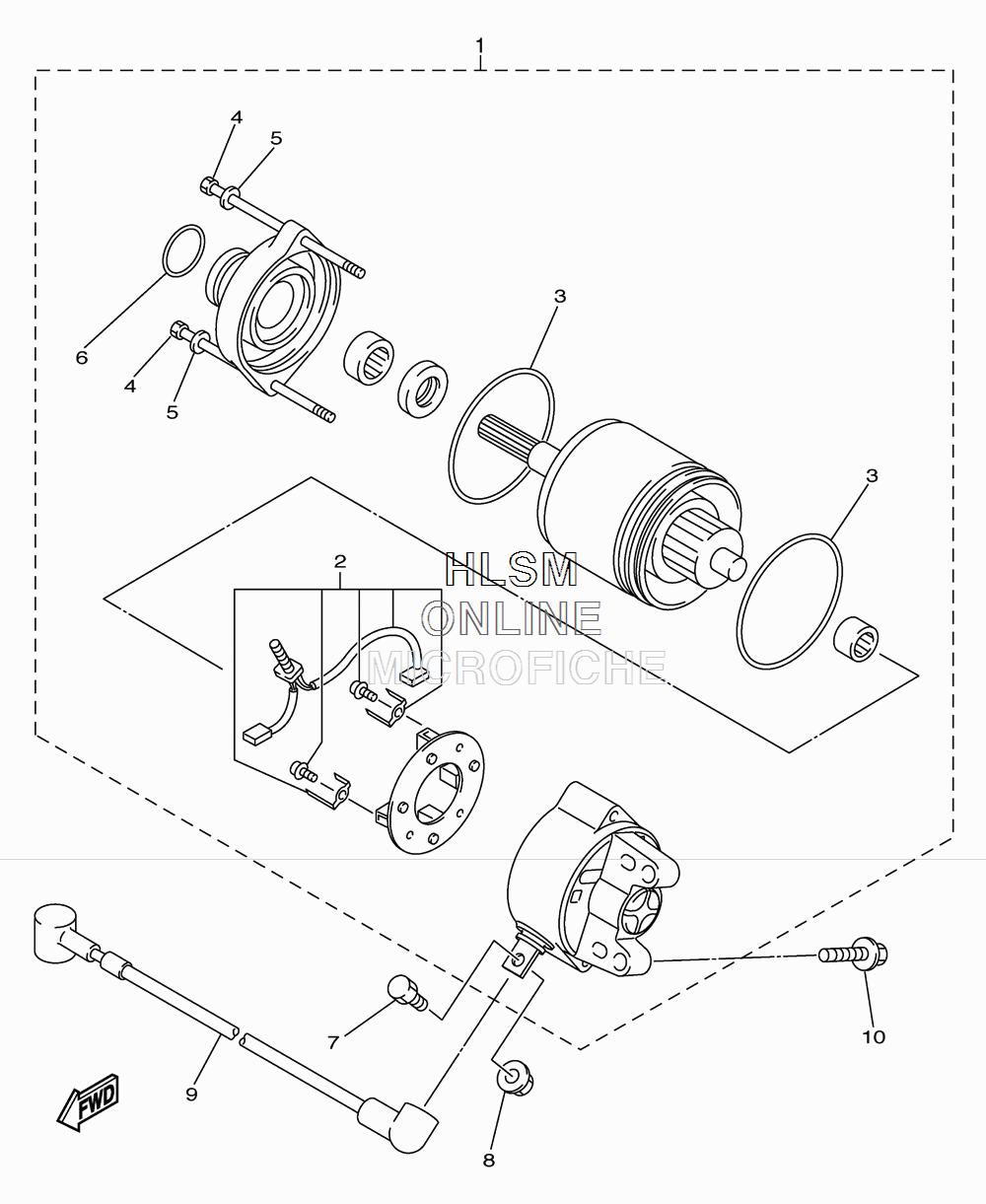

STARTER - ELECTRICAL STARTER ASSY для Yamaha PHAZER GT - 2010 года выпуска`
-
№АртикулНазвание
-
18GC-81890-01-00 MOTOR ASSYMOTOR ASSY
-
28GC-81801-00-00 BRUSH SETBRUSH SET
-
393210-55669-00 O-RINGO-RING
-
48GC-81846-00-00 SCREWSCREW
-
58GC-8181L-00-00 WASHER, PLAINWASHER, PLAIN
-
693210-25711-00 O-RINGO-RING
-
75PW-81828-00-00 BOLT 2BOLT 2
-
895380-05700-00 NUTNUT
-
98GC-8183G-00-00 CORD COMP.CORD COMP.
-
1095812-06025-00 BOLT, FLANGEBOLT, FLANGE
