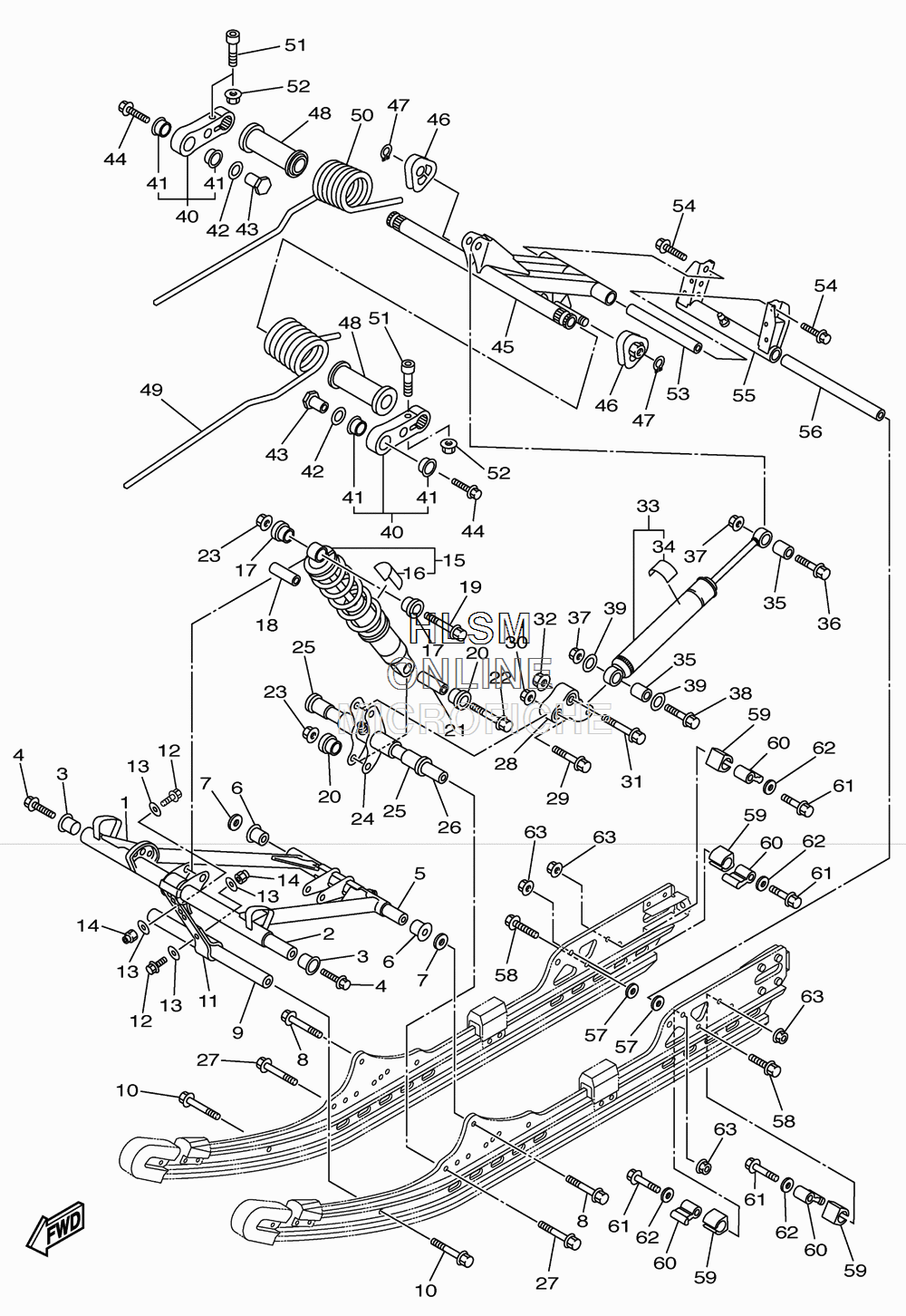

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha PHAZER GT - 2010 года выпуска`
-
№АртикулНазвание
-
18GN-47331-03-00 ARM, PIVOT 1ARM, PIVOT 1
-
28GC-47465-10-00 SHAFT 1SHAFT 1
-
390386-22001-00 BUSHBUSH
-
490109-10030-00 BOLTBOLT
-
58ES-47486-00-00 SHAFT 4SHAFT 4
-
690387-10022-00 COLLARCOLLAR
-
790201-10064-00 WASHER, PLATEWASHER, PLATE
-
890105-10329-00 BOLT, FLANGEBOLT, FLANGE
-
98ES-47485-00-00 SHAFT 3SHAFT 3
-
1090105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
118GC-47495-00-00 STOPPER 1STOPPER 1
-
1297002-06025-00 BOLTBOLT
-
1390201-06036-00 WASHER, PLATEWASHER, PLATE
-
1495702-06300-00 NUT, NYLONNUT, NYLON
-
158GK-47481-C0-00 SHOCK ABSORBER 2SHOCK ABSORBER 2
-
164AA-22259-60-00 LABEL, WARNINGLABEL, WARNING
-
1790387-15009-00 COLLARCOLLAR
-
1890387-10054-00 COLLARCOLLAR
-
1995812-10060-00 BOLT, FLANGEBOLT, FLANGE
-
2090381-14101-00 BUSH, SOLIDBUSH, SOLID
-
2190387-105G5-00 COLLARCOLLAR
-
2290101-10738-00 BOLTBOLT
-
2395602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
248GT-47349-01-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
2590386-20001-00 BUSHBUSH
-
268GN-47487-00-00 SHAFT 5SHAFT 5
-
2790105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
288GN-4741B-00-00 BRACKETBRACKET
-
2995812-10055-00 BOLT, FLANGEBOLT, FLANGE
-
3095602-10200-00 NUT, U FLANGENUT, U FLANGE
-
3195812-12060-00 BOLT, FLANGEBOLT, FLANGE
-
3295602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
338GK-47480-C0-00 SHOCK ABSORBERSHOCK ABSORBER
-
344AA-22259-60-00 LABEL, WARNINGLABEL, WARNING
-
3590387-10023-00 COLLARCOLLAR
-
3695812-10040-00 BOLT, FLANGEBOLT, FLANGE
-
3795602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
3890105-10295-00 BOLT, FLANGEBOLT, FLANGE
-
3990201-10052-00 WASHER, PLATEWASHER, PLATE
-
408GC-47361-00-00 ARM, REAR PIVOT 1ARM, REAR PIVOT 1
-
4190381-20002-00 BUSH, SOLIDBUSH, SOLID
-
4290201-225M9-00 WASHER, PLATEWASHER, PLATE
-
438GC-47368-00-00 NUTNUT
-
4490105-12054-00 BOLT, FLANGEBOLT, FLANGE
-
458GC-47332-02-00 ARM, PIVOT 2ARM, PIVOT 2
-
468ES-47447-00-00 HOOK 2HOOK 2
-
4799009-14400-00 CIRCLIPCIRCLIP
-
488GC-47445-00-00 PROTECTORPROTECTOR
-
498GC-47473-00-00 SPRING, REAR 1 (K=2500NMM/DEG)SPRING, REAR 1 (K=2500NMM/DEG)
-
498GK-47473-00-00 SPRING, REAR 1 (K=2100NMM/DEG)SPRING, REAR 1 (K=2100NMM/DEG)
-
498GP-47473-00-00 SPRING, REAR 1 (K=1700NMM/DEG)SPRING, REAR 1 (K=1700NMM/DEG)
-
508GC-47474-00-00 SPRING, REAR 2 (K=2500NMM/DEG)SPRING, REAR 2 (K=2500NMM/DEG)
-
508GK-47474-00-00 SPRING, REAR 2 (K=2100NMM/DEG)SPRING, REAR 2 (K=2100NMM/DEG)
-
508GP-47474-00-00 SPRING, REAR 2 (K=1700NMM/DEG)SPRING, REAR 2 (K=1700NMM/DEG)
-
5191312-08045-00 BOLTBOLT
-
5295602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
538GC-47488-00-00 SHAFT 6SHAFT 6
-
5490105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
558GC-47417-A0-00 BRACKET 3BRACKET 3
-
568FU-47485-00-00 SHAFT 3SHAFT 3
-
5790201-10136-00 WASHER, PLATEWASHER, PLATE
-
5890105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
598GC-47496-00-00 STOPPER 2STOPPER 2
-
608GN-47338-00-00 COLLARCOLLAR
-
6197012-10050-00 BOLTBOLT
-
6290201-10061-00 WASHER, PLATEWASHER, PLATE
-
6395602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
