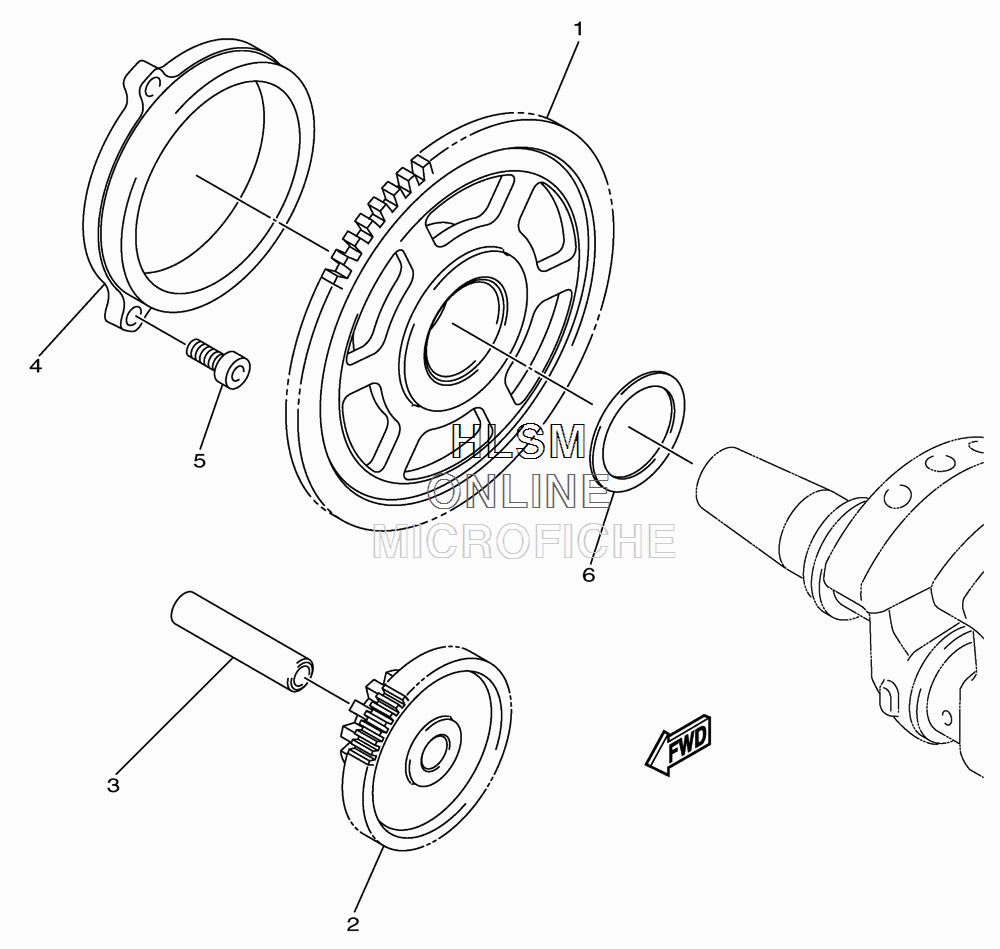

STARTER - REDUCTION GEAR W/ CLUTCH ASSY для Yamaha PHAZER GT - 2010 года выпуска`
-
№АртикулНазвание
-
18GC-15515-00-00 GEAR 3GEAR 3
-
28GC-15512-00-00 GEAR, IDLER 1GEAR, IDLER 1
-
336Y-15521-01-00 SHAFT 1SHAFT 1
-
48GC-15590-10-00 STARTER ONE-WAY ASSYSTARTER ONE-WAY ASSY
-
590110-06168-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
690201-30013-00 WASHER, PLATEWASHER, PLATE
