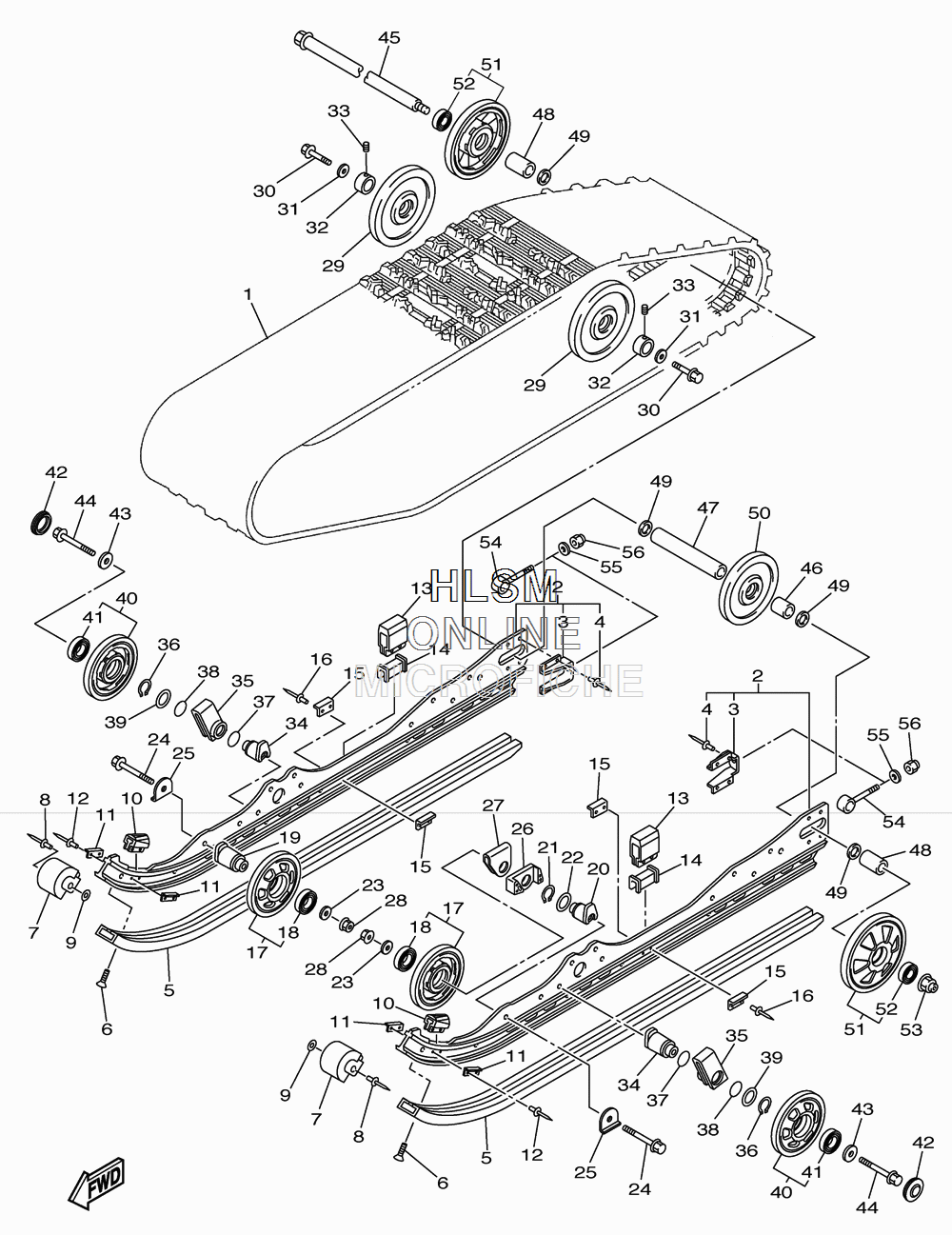

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha FX NYTRO RTX - 2010 года выпуска`
-
№АртикулНазвание
-
18FA-47110-00-00 TRACK ASSYTRACK ASSY
-
28GL-W4741-00-00 FRAME, SLIDINGFRAME, SLIDING
-
38DM-4741B-00-00 BRACKETBRACKET
-
48V0-47468-00-00 RIVETRIVET
-
58GL-47421-00-00 FX NYTRO WIDE SLIDESFX NYTRO WIDE SLIDES
-
690151-06005-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
78GL-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
890267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
990201-047R8-00 WASHER, PLATEWASHER, PLATE
-
108ES-47456-00-00 DAMPER 1DAMPER 1
-
118K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
1290267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
138GL-47457-00-00 DAMPER 2DAMPER 2
-
148GL-47573-00-00 SPACERSPACER
-
158AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1690267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
178HF-47310-10-00 WHEEL BLK 130MMWHEEL BLK 130MM
-
1893306-00507-00 BEARINGBEARING
-
198ES-47419-00-00 BRACKET 7BRACKET 7
-
208ES-47419-10-00 BRACKET 7BRACKET 7
-
2199009-35400-00 CIRCLIPCIRCLIP
-
2290201-35013-00 WASHER, PLATEWASHER, PLATE
-
2390201-10038-00 WASHER, PLATEWASHER, PLATE
-
2495812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
2590214-10003-00 WASHER, CLAWWASHER, CLAW
-
268HB-47464-00-00 BRACKET 6BRACKET 6
-
278HB-47446-00-00 HOOK 1HOOK 1
-
2895602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
298CR-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
3090109-10030-00 BOLTBOLT
-
3190201-10064-00 WASHER, PLATEWASHER, PLATE
-
328FS-47365-00-00 COLLAR 1COLLAR 1
-
3390113-06039-00 BOLT, SETBOLT, SET
-
348ES-47419-10-00 BRACKET 7BRACKET 7
-
358ES-47446-00-00 HOOK 1HOOK 1
-
3699009-35400-00 CIRCLIPCIRCLIP
-
3793210-35537-00 O-RINGO-RING
-
3893210-34504-00 O-RINGO-RING
-
3990201-35013-00 WASHER, PLATEWASHER, PLATE
-
408HF-47310-10-00 WHEEL BLK 130MMWHEEL BLK 130MM
-
4193306-00507-00 BEARINGBEARING
-
428HF-47317-00-00 CAP, WHEELCAP, WHEEL
-
4390201-10038-00 WASHER, PLATEWASHER, PLATE
-
4495812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
458L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
4690387-20015-00 COLLARCOLLAR
-
4790387-20016-00 COLLARCOLLAR
-
4890387-20019-00 COLLARCOLLAR
-
4990201-20022-00 WASHER, PLATEWASHER, PLATE
-
508CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
518HF-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
5293306-00444-00 BEARINGBEARING
-
5395602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
548DM-47479-00-00 COLLAR 3COLLAR 3
-
5592902-10600-00 WASHER, PLATEWASHER, PLATE
-
5695702-10300-00 NUT, NYLONNUT, NYLON
