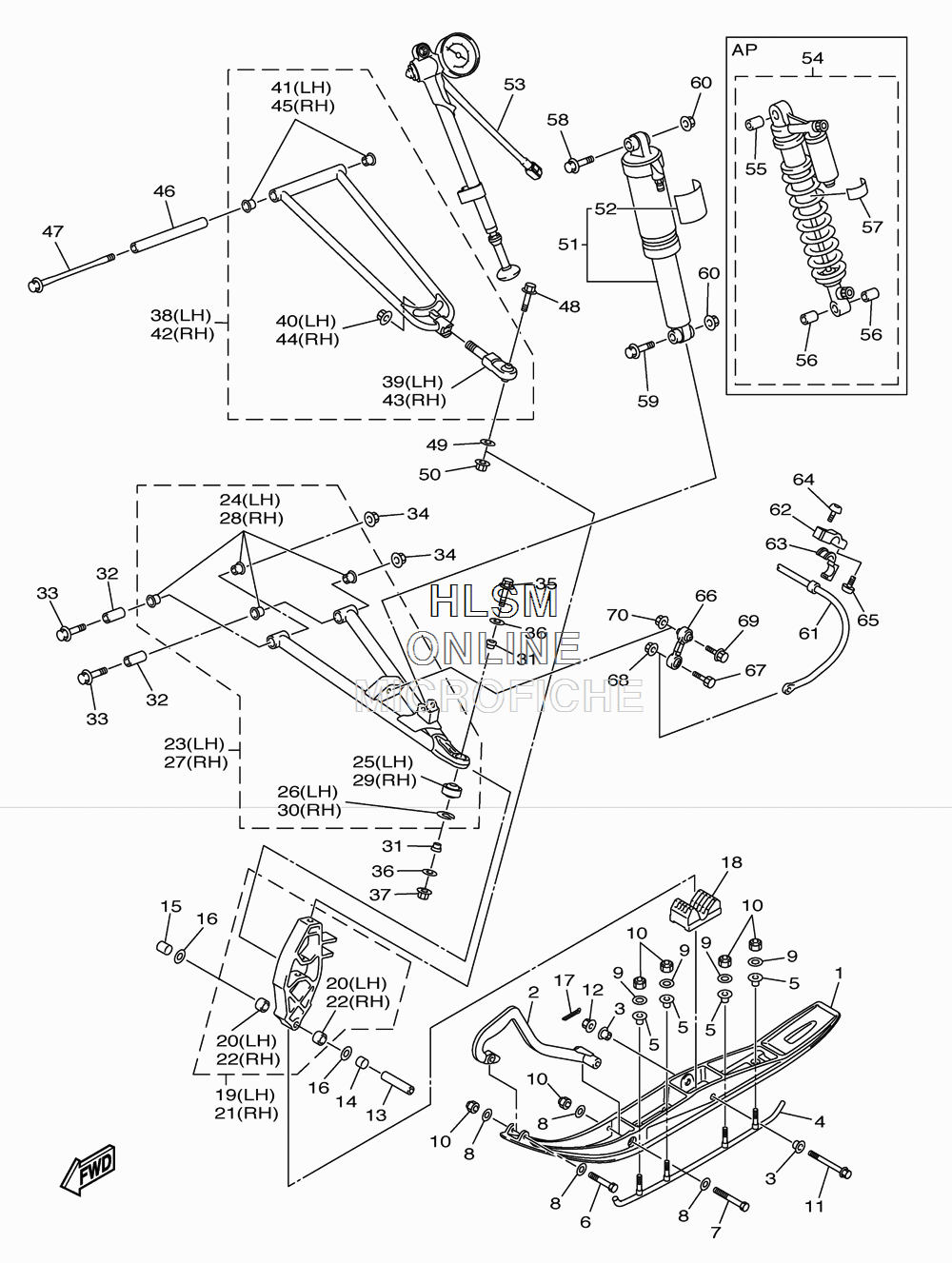

SUSPENSION - FRONT W/ SKI ASSY для Yamaha FX NYTRO RTX - 2010 года выпуска
-
№АртикулНазвание
-
18EX-F3711-00-00 SKI 1, BLACKSKI 1, BLACK
-
28DM-F3712-00-00 BLACK 8DM HANDLE PLASTICBLACK 8DM HANDLE PLASTIC
-
38EX-F3754-00-00 COLLAR, 1COLLAR, 1
-
48GK-F3731-00-00 RUNNER 8RUNNER 8
-
58EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
69702M-08055-00 BOLTBOLT
-
79702M-08100-00 BOLTBOLT
-
890201-08784-00 WASHER, PLATEWASHER, PLATE
-
990201-086P8-00 WASHER, PLATEWASHER, PLATE
-
109570M-08300-00 NUT, NYLONNUT, NYLON
-
1190105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
1295602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
1390387-1012H-00 COLLARCOLLAR
-
1490387-16017-00 COLLARCOLLAR
-
1590387-16018-00 COLLARCOLLAR
-
1690201-16022-00 WASHER, PLATEWASHER, PLATE
-
1791401-20020-00 PIN, COTTERPIN, COTTER
-
188HL-23743-00-00 STOPPER 1STOPPER 1
-
198HK-23501-00-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
2090384-16N51-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
218HK-23502-00-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
2290384-16N51-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
238HK-23570-10-P1 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
2490381-18N51-00 BUSH, SOLIDBUSH, SOLID
-
258HK-23579-00-00 BALL JOINT 2BALL JOINT 2
-
2699009-35700-00 CIRCLIPCIRCLIP
-
278HK-23580-10-P1 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
2890381-18N51-00 BUSH, SOLIDBUSH, SOLID
-
298HK-23579-00-00 BALL JOINT 2BALL JOINT 2
-
3099009-35700-00 CIRCLIPCIRCLIP
-
318HK-23754-00-00 COLLAR, 1COLLAR, 1
-
3290387-10065-00 COLLARCOLLAR
-
3390105-10211-00 BOLT, FLANGEBOLT, FLANGE
-
3495602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
3590105-10318-00 BOLT, FLANGEBOLT, FLANGE
-
3690201-10052-00 WASHER, PLATEWASHER, PLATE
-
3795602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
388HK-23540-00-P1 FRONT UPPER ARM COMP. (LEFT) (MAT BLK.)FRONT UPPER ARM COMP. (LEFT) (MAT BLK.)
-
398GK-23549-00-00 BALL JOINT 1BALL JOINT 1
-
4095602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4190381-18N51-00 BUSH, SOLIDBUSH, SOLID
-
428HK-23550-00-P1 FRONT UPPER ARM COMP. (RIGHT) (MAT BLK.)FRONT UPPER ARM COMP. (RIGHT) (MAT BLK.)
-
438GK-23549-00-00 BALL JOINT 1BALL JOINT 1
-
4495602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4590381-18N51-00 BUSH, SOLIDBUSH, SOLID
-
468HK-23373-00-00 COLLAR 1COLLAR 1
-
4790105-10353-00 BOLT, FLANGEBOLT, FLANGE
-
4891312-10045-00 BOLTBOLT
-
4990201-10052-00 WASHER, PLATEWASHER, PLATE
-
5095602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
518HB-F376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
528GT-F2259-50-00 LABEL, WARNINGLABEL, WARNING
-
538GT-F3703-00-00 FOX AIR PUMPFOX AIR PUMP
-
548GL-2376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
558FA-2331R-00-00 DAMPER, BUSH BDAMPER, BUSH B
-
5690384-15N51-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
574AA-22259-70-00 LABEL, WARNINGLABEL, WARNING
-
5890105-10122-00 BOLT, FLANGEBOLT, FLANGE
-
5990105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
6095602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
618GN-2386E-20-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
628GL-2386C-00-00 HOLDER, STABILIZER FRONTHOLDER, STABILIZER FRONT
-
638GN-2386G-20-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
6492012-08030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
6592012-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
668GN-2385L-10-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
6797012-10035-00 BOLTBOLT
-
6895602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
6995812-08040-00 BOLT, FLANGEBOLT, FLANGE
-
7095602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
