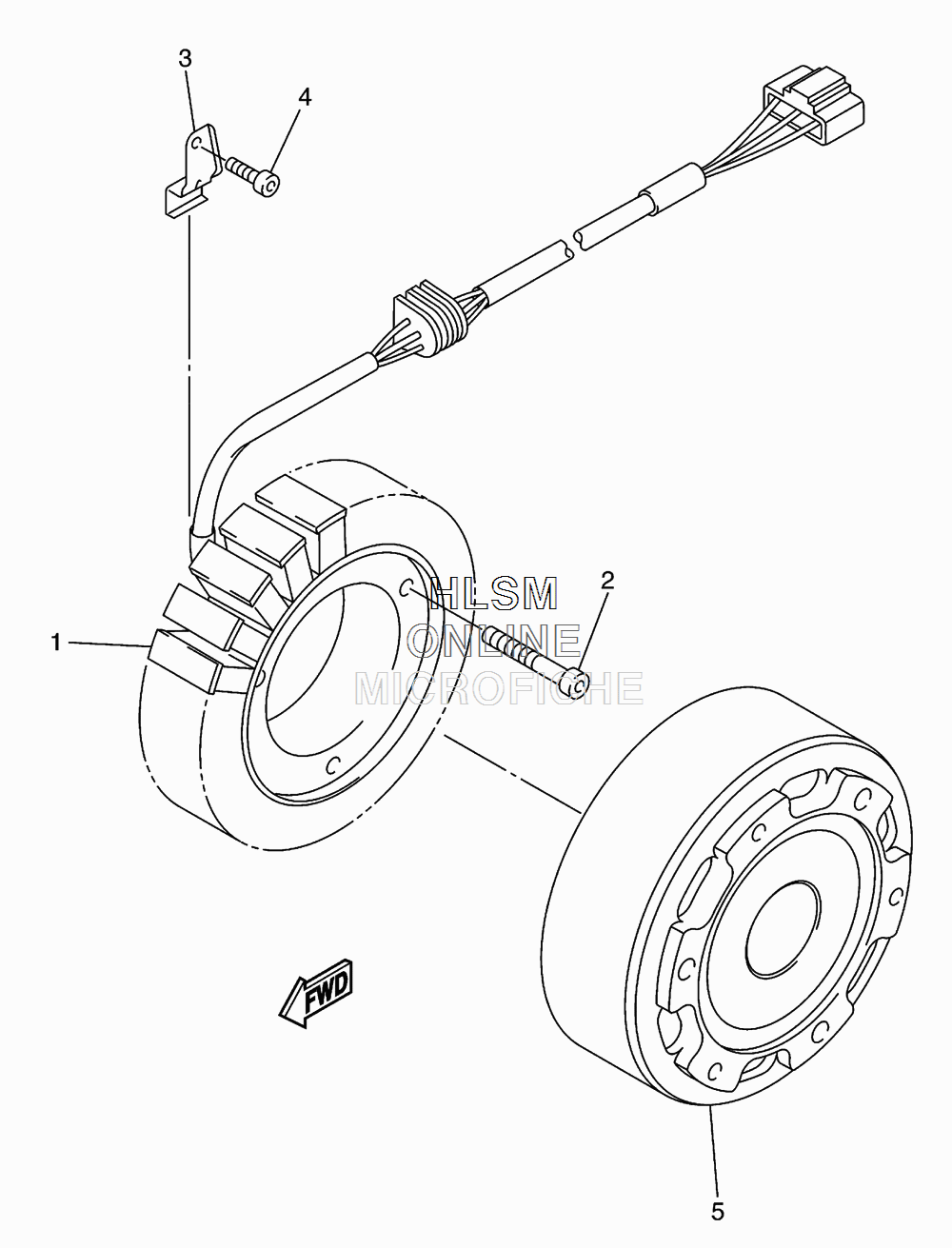

ELECTRICAL - MAGNETO ASSEMBLY для Yamaha FX NYTRO RTX - 2010 года выпуска`
-
№АртикулНазвание
-
18GL-81410-00-00 STATOR ASSYSTATOR ASSY
-
290110-06223-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
38FA-15113-00-00 PLATEPLATE
-
490110-06187-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
58GL-81450-00-00 ROTOR ASSYROTOR ASSY
