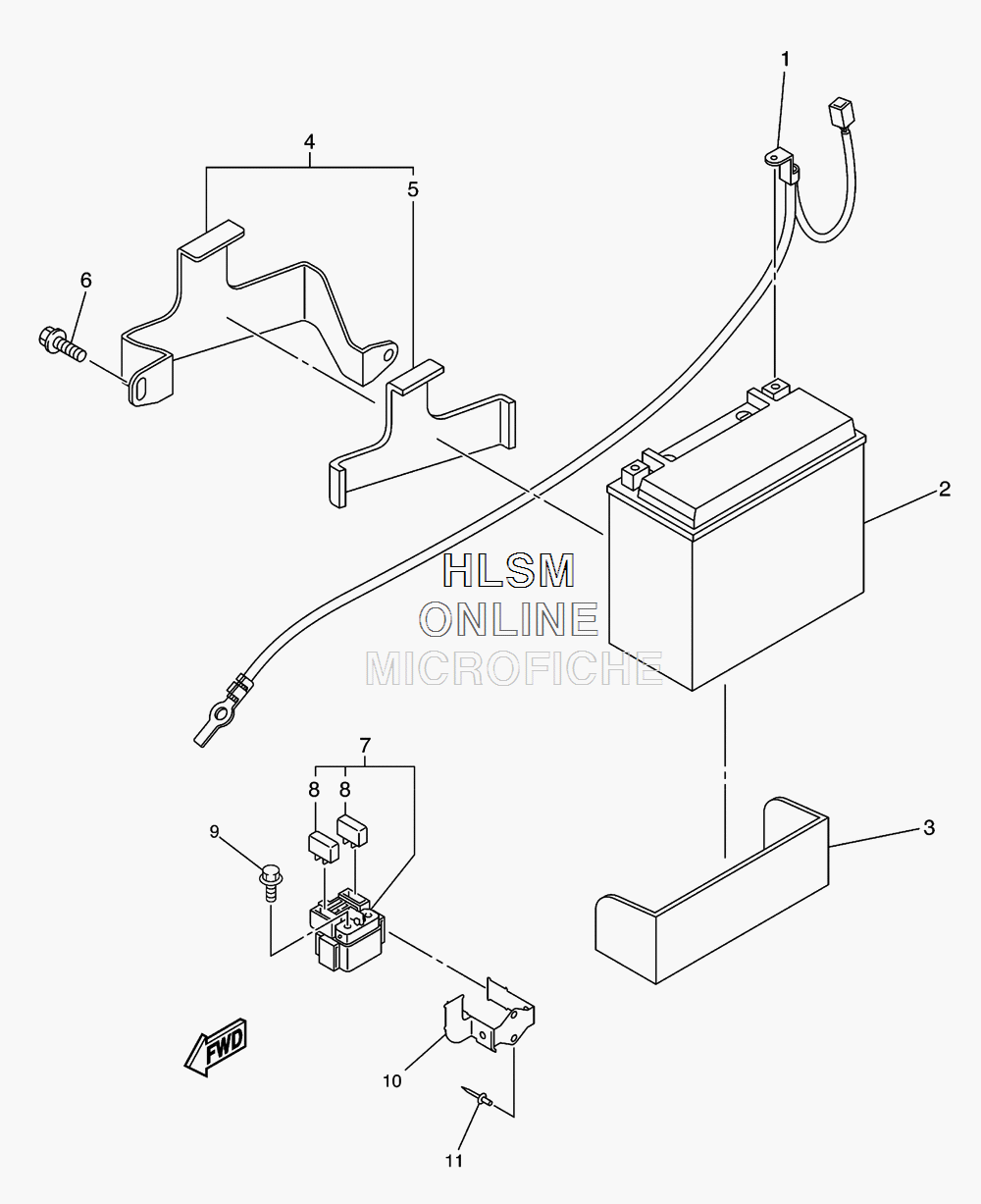

ELECTRICAL - BATTERY ASSY для Yamaha FX NYTRO RTX - 2010 года выпуска`
-
№АртикулНазвание
-
18GL-82116-00-00 WIRE, MINUS (NEG) LEADWIRE, MINUS (NEG) LEAD
-
2BTY-YTX20-LB-S0 BATTERY ASSY (YUASA YTX20L-BS)BATTERY ASSY (YUASA YTX20L-BS)
-
38GL-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
48GL-2199G-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
58GL-82176-00-00 DAMPERDAMPER
-
695822-08014-00 BOLT, FLANGEBOLT, FLANGE
-
73EL-81940-02-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
842X-82151-00-00 FUSE (10A-BL)FUSE (10A-BL)
-
995022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
108GL-81953-01-00 STAY, RELAYSTAY, RELAY
-
1190267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
