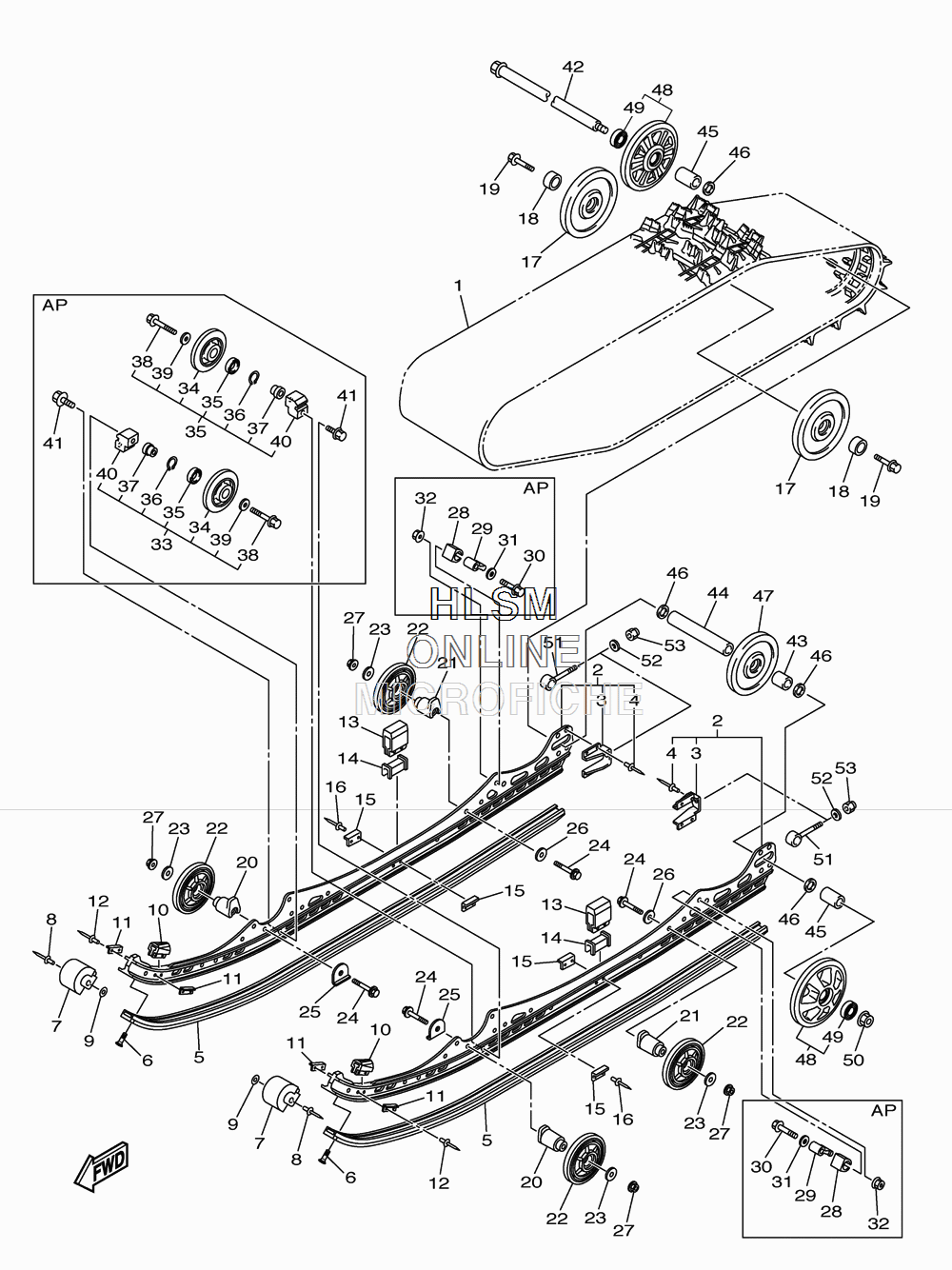

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha FX NYTRO MTX SE 153 - 2010 года выпуска`
-
№АртикулНазвание
-
18HA-47110-10-00 TRACK ASSYTRACK ASSY
-
28HU-W4741-00-00 FRAME, SLIDINGFRAME, SLIDING
-
38DM-4741B-00-00 BRACKETBRACKET
-
48V0-47468-00-00 RIVETRIVET
-
58HU-47421-00-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
690151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
78GL-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
890267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
990201-047R8-00 WASHER, PLATEWASHER, PLATE
-
108ES-47456-00-00 DAMPER 1DAMPER 1
-
118K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
1290267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
138GL-47457-00-00 DAMPER 2DAMPER 2
-
148GL-47573-00-00 SPACERSPACER
-
158AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1690267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
178AC-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
1890387-25005-00 COLLARCOLLAR
-
1990109-10030-00 BOLTBOLT
-
208ES-47419-20-00 BRACKET 7BRACKET 7
-
218ES-47419-00-00 BRACKET 7BRACKET 7
-
228FS-47310-01-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
2390201-10038-00 WASHER, PLATEWASHER, PLATE
-
2495812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
2590214-10004-00 WASHER, CLAWWASHER, CLAW
-
2690201-10052-00 WASHER, PLATEWASHER, PLATE
-
2795602-10200-00 NUT, U FLANGENUT, U FLANGE
-
288GC-47496-00-00 STOPPER 2STOPPER 2
-
298GN-47338-00-00 COLLARCOLLAR
-
3097012-10050-00 BOLTBOLT
-
3190201-10061-00 WASHER, PLATEWASHER, PLATE
-
3295602-10200-00 NUT, U FLANGENUT, U FLANGE
-
338GP-47320-10-00 SUSPENSION WHEEL COMP.SUSPENSION WHEEL COMP.
-
348AC-47320-00-00 SUSPENSION WHEEL COMP.SUSPENSION WHEEL COMP.
-
3593306-00444-00 BEARINGBEARING
-
3699009-42500-00 CIRCLIPCIRCLIP
-
378GP-47319-00-00 COLLARCOLLAR
-
3895812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
3990201-10052-00 WASHER, PLATEWASHER, PLATE
-
408GP-47419-10-00 BRACKET 7BRACKET 7
-
4190105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
428L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
4390387-20015-00 COLLARCOLLAR
-
4490387-20016-00 COLLARCOLLAR
-
4590387-20019-00 COLLARCOLLAR
-
4690201-20022-00 WASHER, PLATEWASHER, PLATE
-
478CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
488HF-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
4993306-00444-00 BEARINGBEARING
-
5095602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
518DM-47479-00-00 COLLAR 3COLLAR 3
-
5292902-10600-00 WASHER, PLATEWASHER, PLATE
-
5395702-10300-00 NUT, NYLONNUT, NYLON
