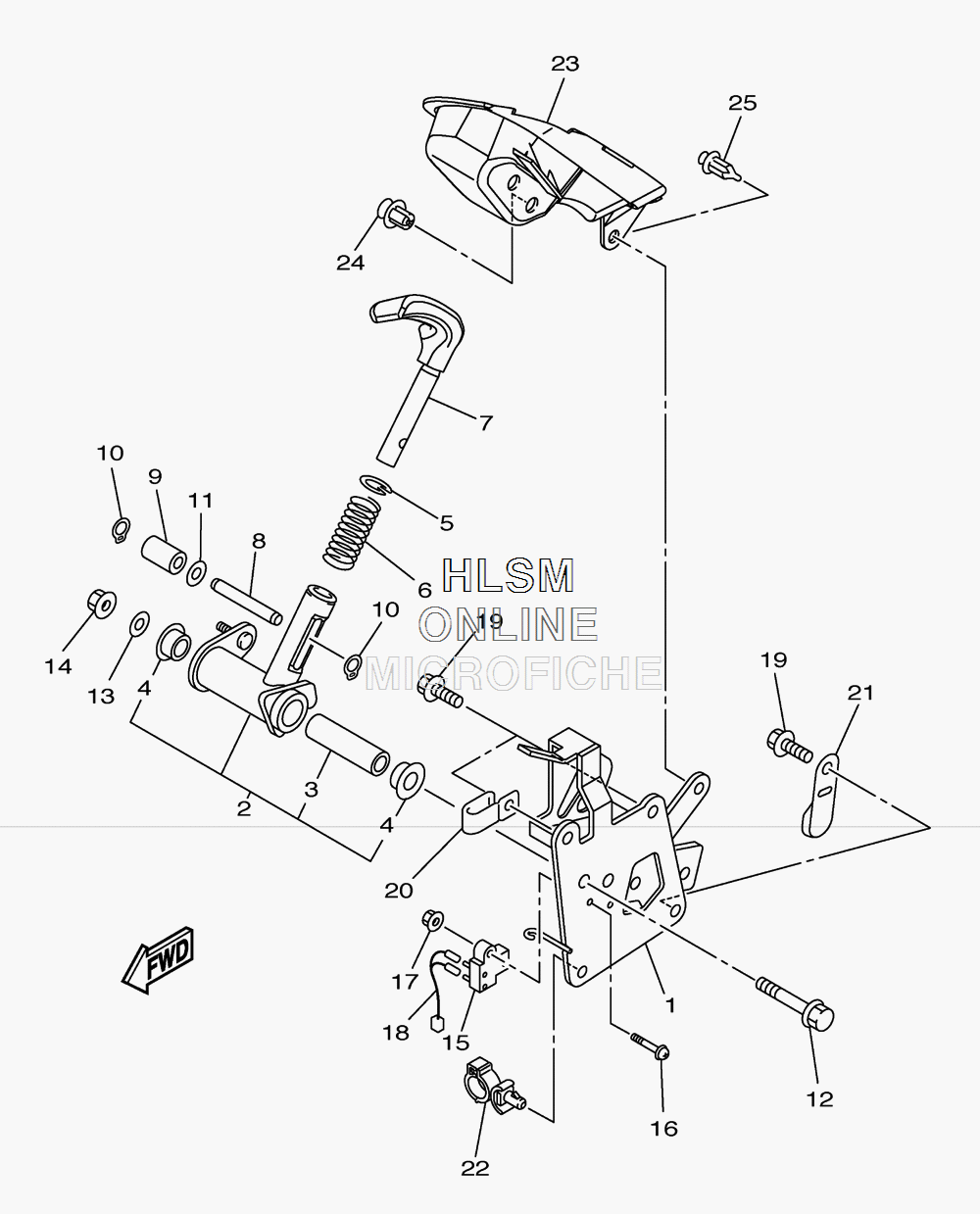

CHAINCASE ASSY 2 для Yamaha FX NYTRO MTX SE 153 - 2010 года выпуска`
-
№АртикулНазвание
-
18GL-18161-01-00 GUIDE, PLATE STOPPERGUIDE, PLATE STOPPER
-
28GL-18112-00-00 ARM, SHIFTARM, SHIFT
-
38GL-47488-00-00 SHAFT 6SHAFT 6
-
490386-15139-00 BUSH, SPEC'L NYLONBUSH, SPEC'L NYLON
-
599009-18400-00 CIRCLIPCIRCLIP
-
690501-130A2-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
78GL-18174-01-00 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
890249-06002-00 PINPIN
-
990387-06059-00 COLLARCOLLAR
-
1093410-06053-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
1190201-067F9-00 WASHER, PLATEWASHER, PLATE
-
1295812-08070-00 BOLT, FLANGEBOLT, FLANGE
-
1390201-08054-00 WASHER, PLATEWASHER, PLATE
-
1495602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
15J51-82817-00-00 SWITCH, NEUTRALSWITCH, NEUTRAL
-
1698902-04020-00 SCREW, BINDSCREW, BIND
-
1795602-04100-00 NUT, UNUT, U
-
188GL-82541-00-00 WIRE, LEADWIRE, LEAD
-
1995022-08016-00 BOLT, FLANGEBOLT, FLANGE
-
2090462-10022-00 CLAMPCLAMP
-
218GL-23469-00-00 CAP, BOLTCAP, BOLT
-
2290464-16011-00 CLAMPCLAMP
-
238GL-47716-00-00 COVERCOVER
-
2490269-08006-00 RIVETRIVET
-
2590269-07012-00 RIVETRIVET
