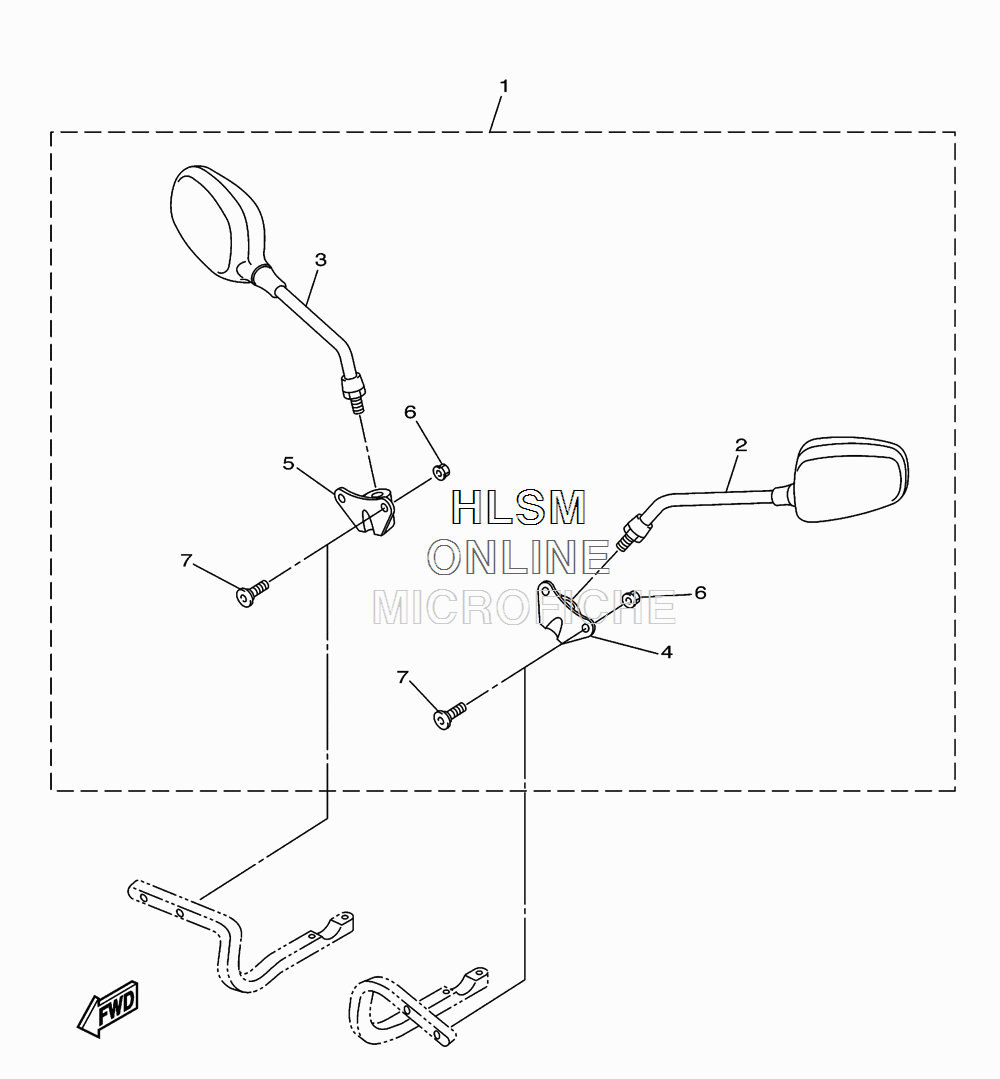

REAR VIEW MIRROR ASSY (OPTION) для Yamaha FX NYTRO MTX SE 153 - 2010 года выпуска`
-
№АртикулНазвание
-
18HB-W2628-00-00 REAR VIEW MIRROR SETREAR VIEW MIRROR SET
-
24GA-26280-10-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
34GA-26290-10-00 REAR VIEW MIRROR ASSY (RIGHTREAR VIEW MIRROR ASSY (RIGHT
-
48HB-2628N-00-00 BASE, MIRROR (LEFT)BASE, MIRROR (LEFT)
-
58HB-2628N-10-00 BASE, MIRROR (RIGHT)BASE, MIRROR (RIGHT)
-
695602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
790109-06234-00 BOLTBOLT
