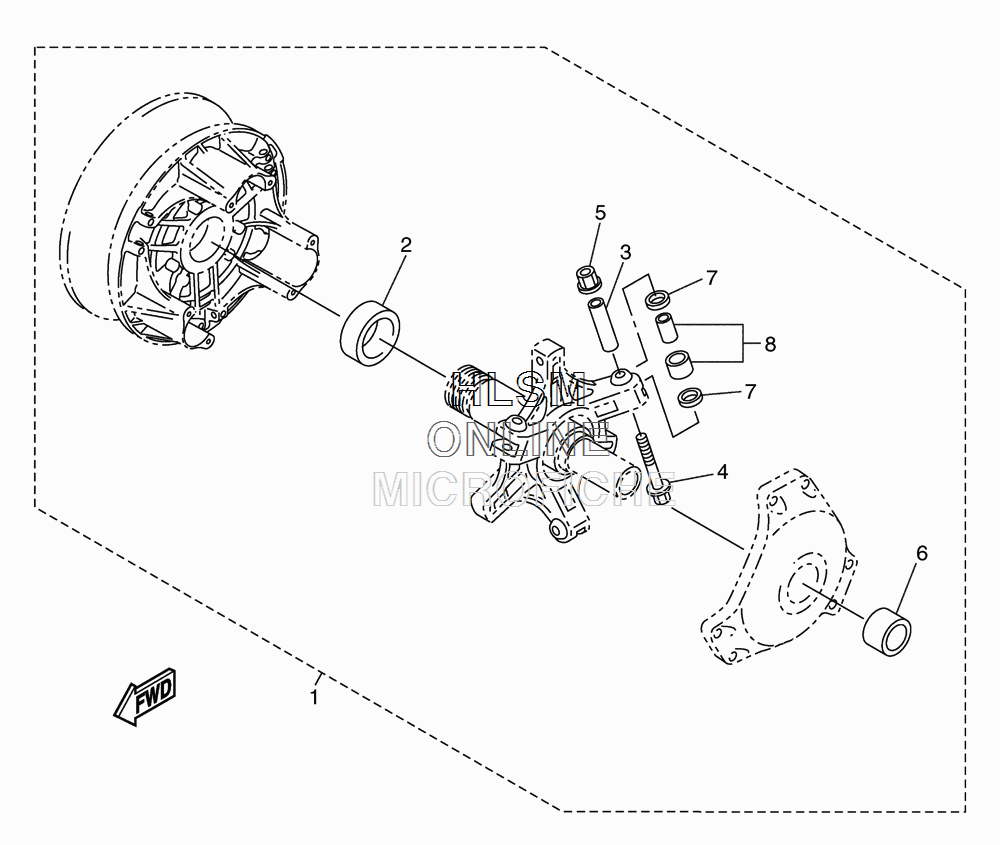

CLUTCH - TUNE-UP KIT (OPTION) для Yamaha FX NYTRO MTX SE 153 - 2010 года выпуска`
-
№АртикулНазвание
-
18EP-W176H-10-00 CLUTCH TUNE-UP KITCLUTCH TUNE-UP KIT
-
290384-41242-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
390387-0514U-00 COLLARCOLLAR
-
490105-05644-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
595607-05200-00 NUT, U FLANGENUT, U FLANGE
-
690380-28237-00 BUSH, SOLIDBUSH, SOLID
-
790202-09227-00 WASHER, PLATEWASHER, PLATE
-
88FG-17624-40-00 ROLLER, COMPROLLER, COMP
