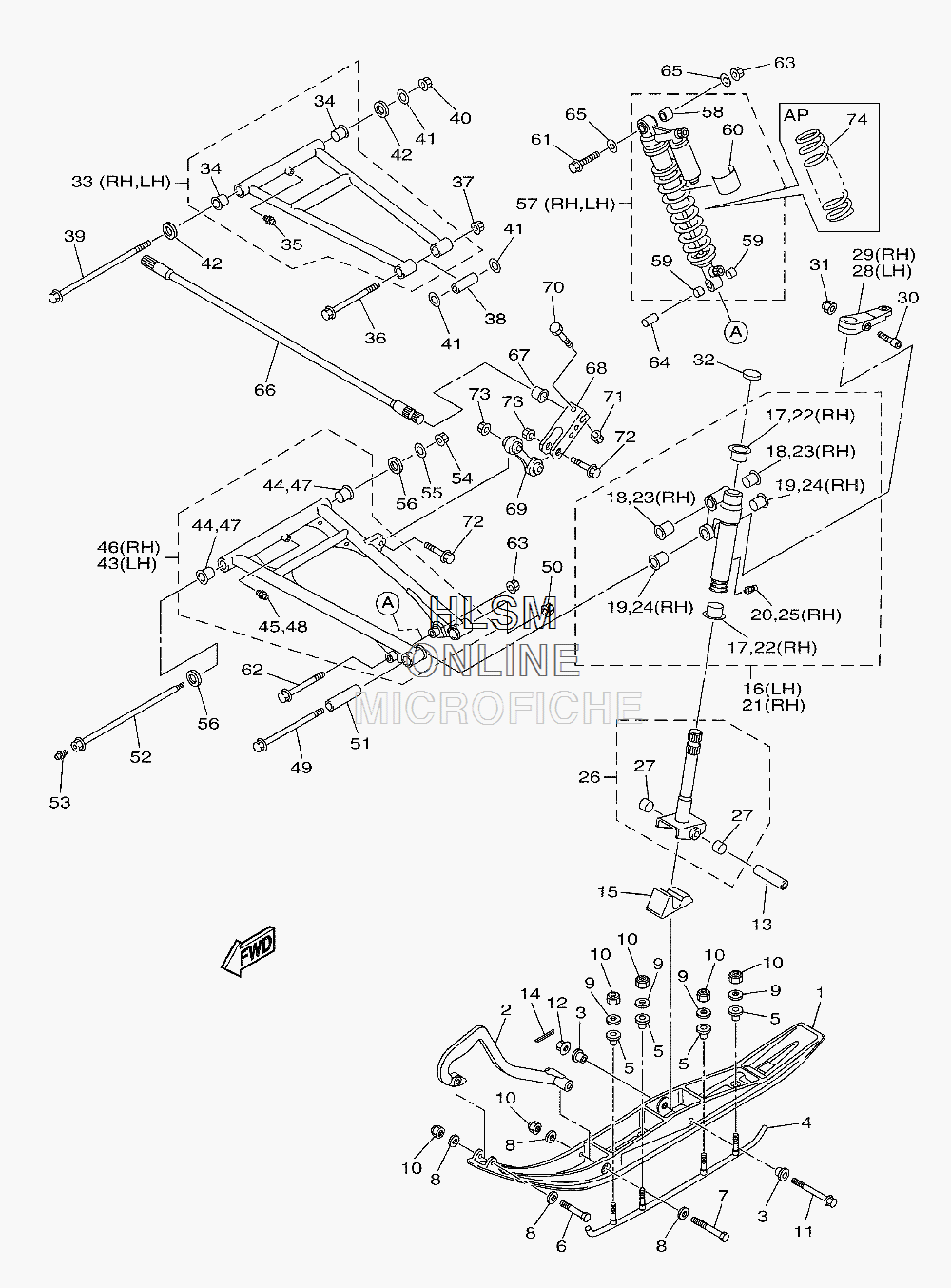

SUSPENSION - FRONT W/ SKI ASSY для Yamaha APEX GT - 2010 года выпуска`
-
№АртикулНазвание
-
18ES-F3711-00-00 SKI 1SKI 1
-
28EK-F3712-00-00 BLUE 8DM HANDLE PLASTIC (FOR DPBMC)BLUE 8DM HANDLE PLASTIC (FOR DPBMC)
-
28DM-F3712-00-00 BLACK 8DM HANDLE PLASTIC (FOR YB)BLACK 8DM HANDLE PLASTIC (FOR YB)
-
38EX-F3754-00-00 COLLAR, 1COLLAR, 1
-
48EK-F3731-01-00 RUNNER 1RUNNER 1
-
58EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
69702M-08055-00 BOLTBOLT
-
79702M-08100-00 BOLTBOLT
-
890201-08784-00 WASHER, PLATEWASHER, PLATE
-
990201-086P8-00 WASHER, PLATEWASHER, PLATE
-
109570M-08300-00 NUT, NYLONNUT, NYLON
-
1190105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
1295607-10200-00 NUT, U FLANGENUT, U FLANGE
-
1390387-1012H-00 COLLARCOLLAR
-
1491401-20020-00 PIN, COTTERPIN, COTTER
-
158CR-23743-10-00 STOPPER 1STOPPER 1
-
168ES-23501-00-00 STEERING KNUCKLE ASSY (LEFT) (FOR YB)STEERING KNUCKLE ASSY (LEFT) (FOR YB)
-
168ES-23501-10-00 STEERING KNUCKLE ASSY (LEFT) (FOR DPBMC)STEERING KNUCKLE ASSY (LEFT) (FOR DPBMC)
-
1790381-25115-00 BUSH, SOLIDBUSH, SOLID
-
1890381-15N50-00 BUSH, SOLIDBUSH, SOLID
-
1990381-18N51-00 BUSH, SOLIDBUSH, SOLID
-
2093700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
218ES-23502-00-00 STEERING KNUCKLE ASSY (RIGHT) (FOR YB)STEERING KNUCKLE ASSY (RIGHT) (FOR YB)
-
218ES-23502-10-00 STEERING KNUCKLE ASSY (RIGHT) (FOR DPBMC)STEERING KNUCKLE ASSY (RIGHT) (FOR DPBMC)
-
2290381-25115-00 BUSH, SOLIDBUSH, SOLID
-
2390381-15N50-00 BUSH, SOLIDBUSH, SOLID
-
2490381-18N51-00 BUSH, SOLIDBUSH, SOLID
-
2593700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
268ES-23803-00-00 COLUMN, SKI ASSYCOLUMN, SKI ASSY
-
2790384-16N51-00 BUSH, BIMETAL (FORMED)BUSH, BIMETAL (FORMED)
-
288FA-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
298FA-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
3090110-08N53-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3195607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
323YK-22472-40-00 CAP, CASECAP, CASE
-
338GD-23540-30-00 FRONT UPPER ARM COMP. (FOR DPBMC)FRONT UPPER ARM COMP. (FOR DPBMC)
-
338GD-23540-00-00 FRONT UPPER ARM COMP. (FOR YB)FRONT UPPER ARM COMP. (FOR YB)
-
3490381-15N50-00 BUSH, SOLIDBUSH, SOLID
-
3593700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
3690105-10N56-00 BOLT, FLANGEBOLT, FLANGE
-
3795607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3890387-10N58-00 COLLARCOLLAR
-
3990105-10N54-00 BOLT, FLANGEBOLT, FLANGE
-
4095607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4190201-106F2-00 WASHER, PLATEWASHER, PLATE
-
4290209-15N50-00 WASHERWASHER
-
438JA-23570-00-00 FRONT LOWER ARM COMP. (LEFT) (FOR YB)FRONT LOWER ARM COMP. (LEFT) (FOR YB)
-
438JA-23570-30-00 FRONT LOWER ARM COMP. (LEFT) (FOR DPBMC)FRONT LOWER ARM COMP. (LEFT) (FOR DPBMC)
-
4490381-16N51-00 BUSH, SOLIDBUSH, SOLID
-
4593700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
468JA-23580-00-00 FRONT LOWER ARM COMP. (RIGHT) (FOR YB)FRONT LOWER ARM COMP. (RIGHT) (FOR YB)
-
468JA-23580-30-00 FRONT LOWER ARM COMP. (RIGHT) (FOR DPBMC)FRONT LOWER ARM COMP. (RIGHT) (FOR DPBMC)
-
4790381-16N51-00 BUSH, SOLIDBUSH, SOLID
-
4893700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
4990105-12N54-00 BOLT, FLANGEBOLT, FLANGE
-
5095607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5190387-12N54-00 COLLARCOLLAR
-
5290401-10043-00 BOLT, UNIONBOLT, UNION
-
5393700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
5495607-10200-00 NUT, U FLANGENUT, U FLANGE
-
5590201-106F2-00 WASHER, PLATEWASHER, PLATE
-
5690209-15N50-00 WASHERWASHER
-
578GD-2376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
588FA-2331R-00-00 DAMPER, BUSH BDAMPER, BUSH B
-
5990384-15N51-00 BUSH, BIMETAL (FORMEDBUSH, BIMETAL (FORMED
-
604AA-22259-70-00 LABEL, WARNINGLABEL, WARNING
-
6190105-10232-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
6290105-10392-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
6395607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6490387-10N59-00 COLLARCOLLAR
-
6590201-106F2-00 WASHER, PLATEWASHER, PLATE
-
668FG-2386E-00-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
678FG-2386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
688FG-2386L-00-00 ARM, STABILIZERARM, STABILIZER
-
698ES-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
7090101-06765-00 BOLTBOLT
-
7195604-06200-00 NUT, U FLANGENUT, U FLANGE
-
7295814-08030-00 BOLT, FLANGEBOLT, FLANGE
-
7395604-08200-00 NUT, U FLANGENUT, U FLANGE
-
748FR-23760-00-00 SPRING ASSY 1 (K=2.3)SPRING ASSY 1 (K=2.3)
-
748FR-23760-10-00 SPRING ASSY 1 (K=3.0)SPRING ASSY 1 (K=3.0)
