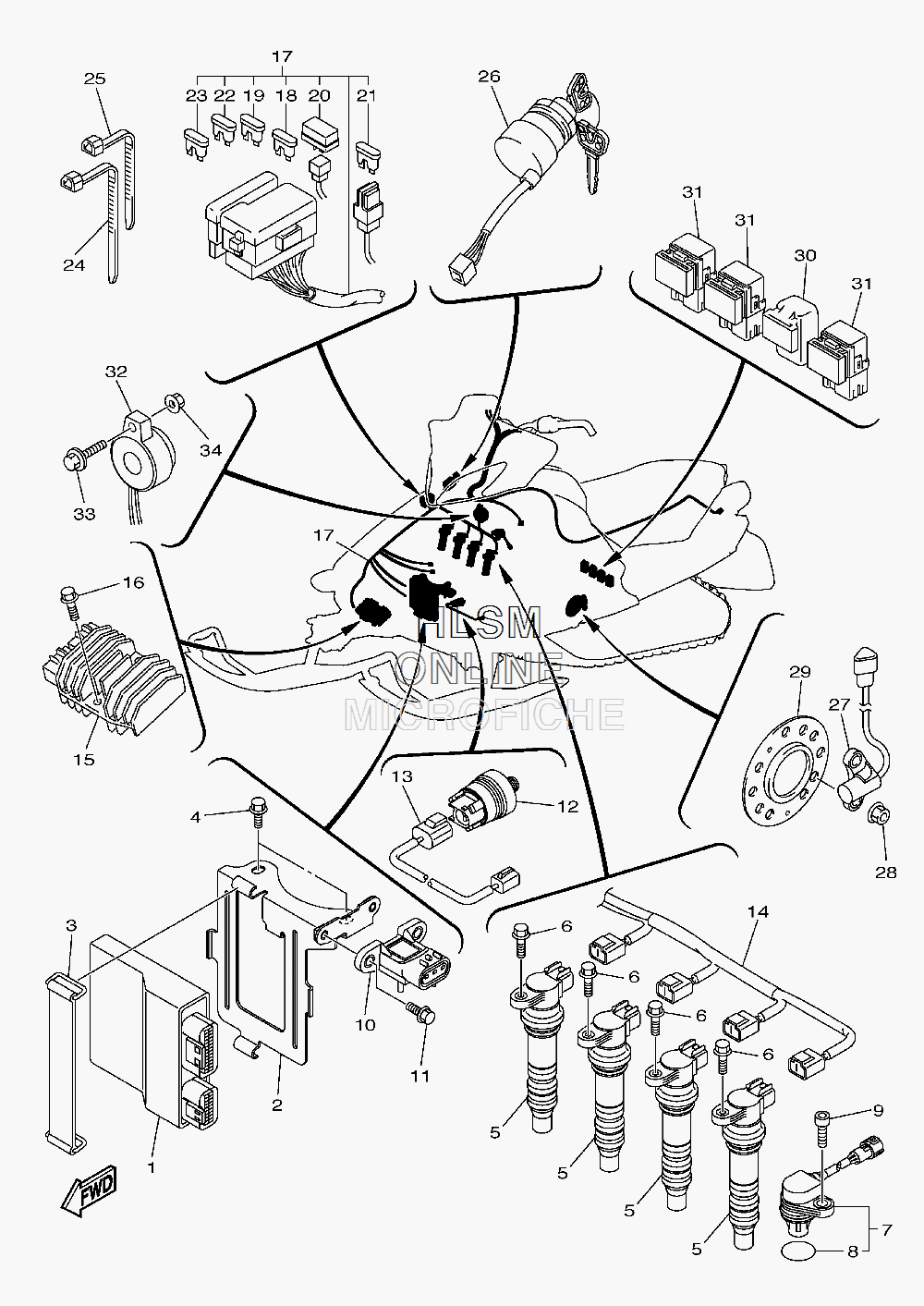

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha APEX GT - 2010 года выпуска`
-
№АртикулНазвание
-
18FP-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
28FP-85991-00-00 BRACKET, UNITBRACKET, UNIT
-
32T4-82131-00-00 BAND, BATTERYBAND, BATTERY
-
495822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
58FP-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
695812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
75VY-85896-00-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
84D9-81168-00-00 O-RINGO-RING
-
990110-06175-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
105PS-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
1195022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
128FP-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
138FP-82318-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
148FP-81515-01-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
155JW-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
1690105-06185-00 BOLT, FLANGEBOLT, FLANGE
-
178GD-82590-20-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
185JJ-82151-20-00 FUSE (20A-BL)FUSE (20A-BL)
-
195JJ-82151-30-00 FUSE (10A-BL)FUSE (10A-BL)
-
204WA-81980-00-00 DIODE ASSYDIODE ASSY
-
215PS-82151-00-00 FUSE (40A)FUSE (40A)
-
225JJ-82151-50-00 FUSE (3A-BL)FUSE (3A-BL)
-
235JJ-82151-40-00 FUSE (4A-BL)FUSE (4A-BL)
-
2490464-13073-00 CLAMPCLAMP
-
2590464-13077-00 CLAMPCLAMP
-
268FJ-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
278GK-83755-10-00 SENSOR, SPEEDSENSOR, SPEED
-
2895702-08300-00 NUT, NYLONNUT, NYLON
-
298EK-47551-00-00 HOUSING, FRONT AXLEHOUSING, FRONT AXLE
-
305DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
318FP-81950-01-00 RELAY ASSYRELAY ASSY
-
328GL-83383-00-00 BUZZERBUZZER
-
3390159-05035-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
3495702-05500-00 NUT, FLANGENUT, FLANGE
