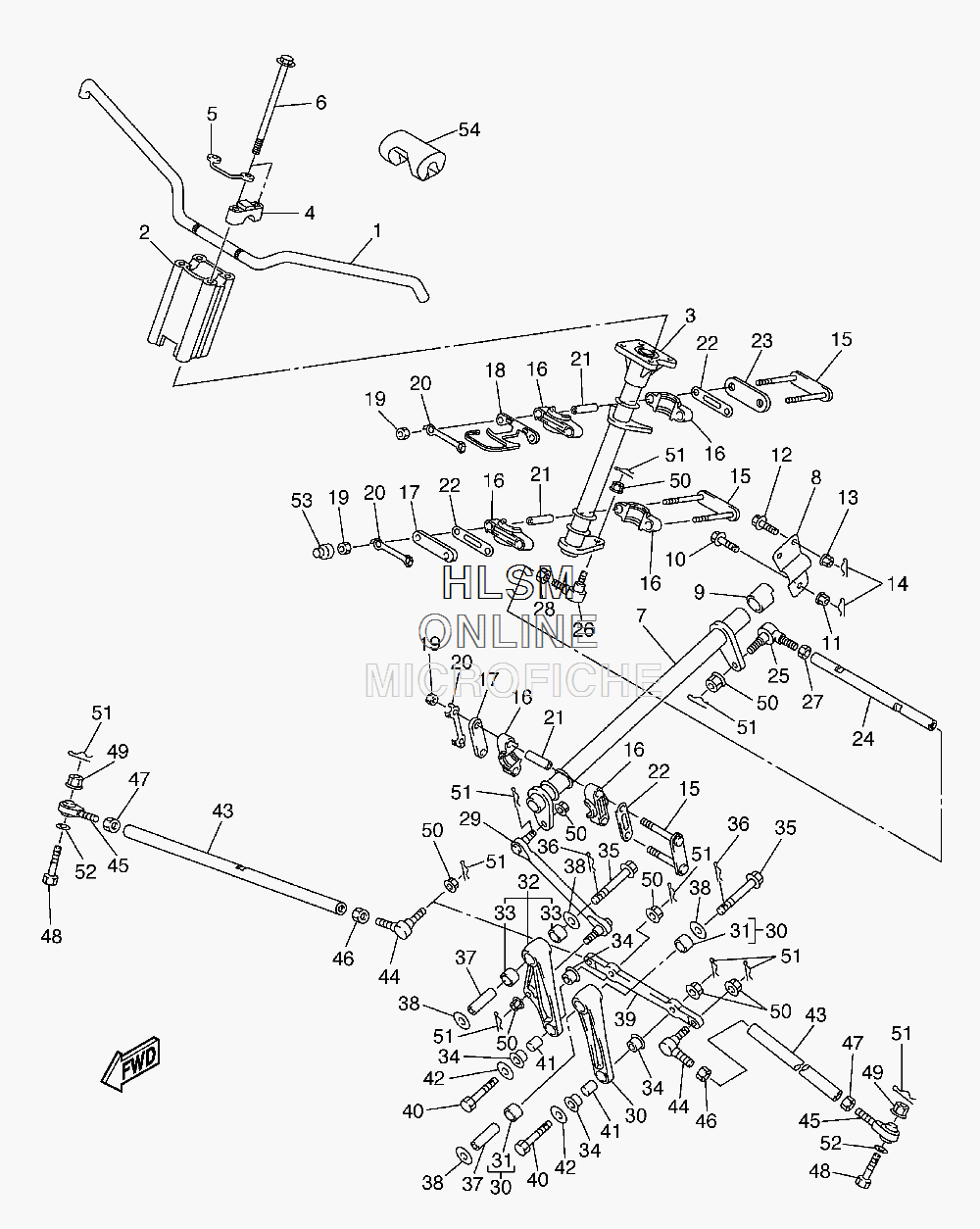

HANDLEBAR ASSY W/ STEERING ASSY для Yamaha APEX GT - 2010 года выпуска`
-
№АртикулНазвание
-
18GT-26111-00-00 HANDLEBARHANDLEBAR
-
28GT-2381B-00-00 JOINTJOINT
-
38FP-23813-00-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
43SP-23441-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
58FP-23857-00-00 HOLDERHOLDER
-
68GT-23876-00-00 BOLTBOLT
-
78FA-23811-00-00 COLUMN, STEERINGCOLUMN, STEERING
-
88FA-23818-02-00 COVER, STEERINGCOVER, STEERING
-
98FA-23873-00-00 BEARING, STEERING UPPERBEARING, STEERING UPPER
-
1090105-10728-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1195602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
1290105-08552-00 BOLT, FLANGEBOLT, FLANGE
-
1395602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1490468-12006-00 CLIPCLIP
-
158FA-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
168FA-23812-00-00 BEARING, STEERINGBEARING, STEERING
-
178FA-23867-00-00 HOLDER 2HOLDER 2
-
188FP-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
1995312-08600-00 NUTNUT
-
201UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
218HF-2412G-00-00 COLLARCOLLAR
-
228FA-23843-00-00 WASHER, PLAINWASHER, PLAIN
-
238FP-23843-00-00 WASHER, PLAINWASHER, PLAIN
-
248FA-23828-00-00 ROD, STEERINGROD, STEERING
-
258CR-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
268CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
2795307-10700-00 NUTNUT
-
2890170-10186-00 NUT,HEXAGON (L/H THREAD)NUT,HEXAGON (L/H THREAD)
-
298FA-23821-00-00 ROD, STEERING RELAYROD, STEERING RELAY
-
308FG-2389K-00-00 ARM PIVOT ASSYARM PIVOT ASSY
-
3190383-17001-00 BUSH, FORMEDBUSH, FORMED
-
328FA-2389M-00-00 ARM PIVOT ASSY. , 2ARM PIVOT ASSY. , 2
-
3393317-41785-00 BEARINGBEARING
-
3490381-14001-00 BUSH, SOLIDBUSH, SOLID
-
3590105-12017-00 BOLT, FLANGEBOLT, FLANGE
-
368FA-2384N-00-00 CLIP, RINGCLIP, RING
-
378FA-2412G-00-00 COLLARCOLLAR
-
3890201-121U3-00 WASHER, PLATEWASHER, PLATE
-
398FU-23826-00-00 ARM, IDLERARM, IDLER
-
4090102-10044-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
4190387-10008-00 COLLARCOLLAR
-
4290201-10742-00 WASHER, PLATEWASHER, PLATE
-
438ES-23831-00-00 ROD, TIEROD, TIE
-
448CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
458FA-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
4695307-10700-00 NUTNUT
-
4790170-10186-00 NUT, HEXAGON (L/H THREAD)NUT, HEXAGON (L/H THREAD)
-
4890102-10044-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
4995702-10300-00 NUT, NYLONNUT, NYLON
-
5095702-10500-00 NUT, FLANGENUT, FLANGE
-
5191402-20020-00 PIN, COTTERPIN, COTTER
-
5290201-08759-00 WASHER, PLATEWASHER, PLATE
-
5335R-25335-00-00 CAPCAP
-
548FR-23815-00-00 PAD, STEERINGPAD, STEERING
