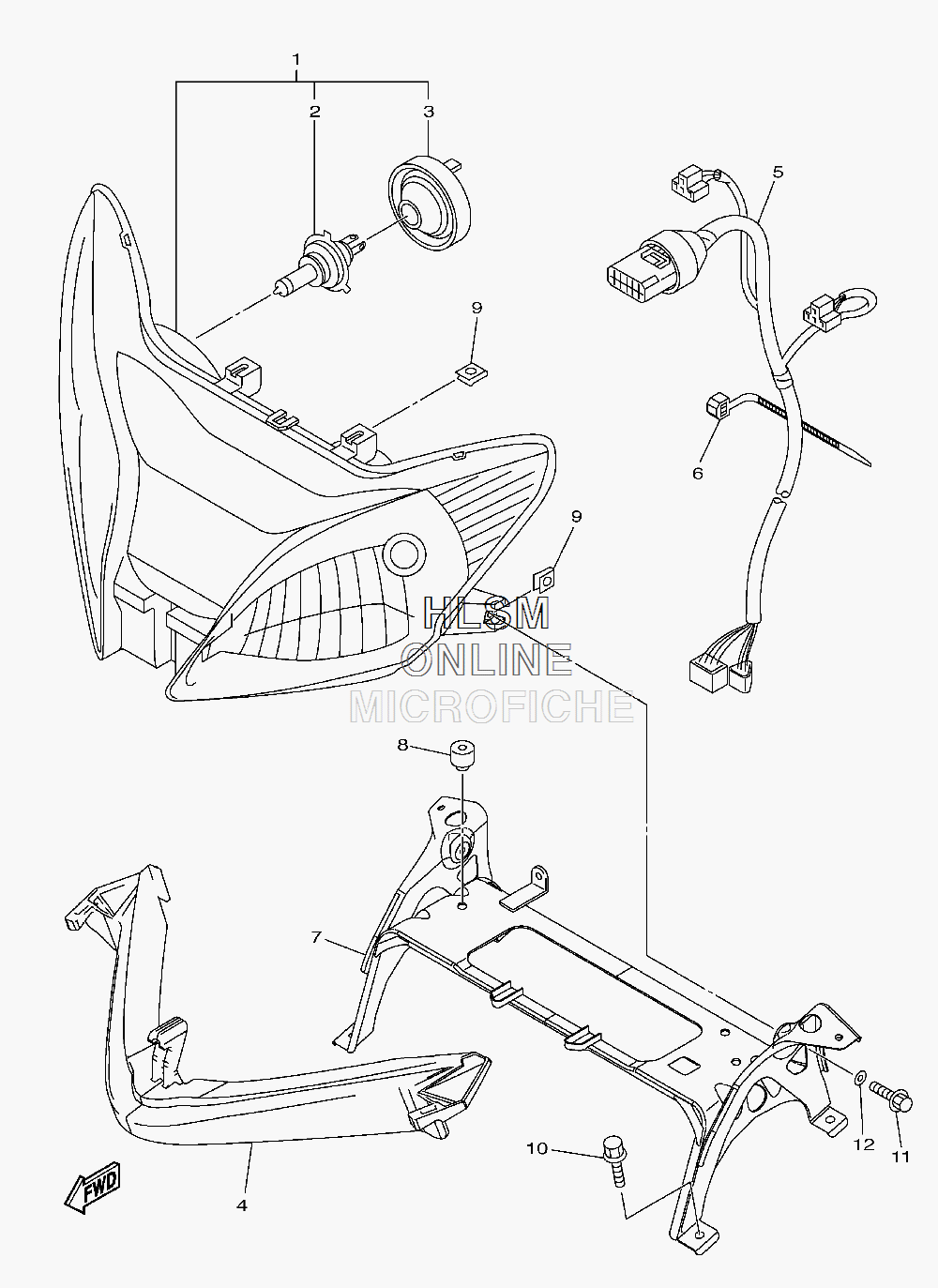

ELECTRICAL - HEADLIGHT ASSY для Yamaha APEX GT - 2010 года выпуска`
-
№АртикулНазвание
-
18FP-84310-10-00 HEADLIGHT UNIT ASSY (FOR DPBMC)HEADLIGHT UNIT ASSY (FOR DPBMC)
-
18FP-84310-00-00 HEADLIGHT UNIT ASSY (FOR YB)HEADLIGHT UNIT ASSY (FOR YB)
-
28FP-84314-00-00 BULB, HEADLIGHT (12V-60/55W)BULB, HEADLIGHT (12V-60/55W)
-
38EK-84397-00-00 COVER, SOCKETCOVER, SOCKET
-
48FP-84366-00-00 DAMPER, HEADLIGHT 1DAMPER, HEADLIGHT 1
-
58FP-84359-00-00 CORD, HEADLIGHTCORD, HEADLIGHT
-
690464-13077-00 CLAMPCLAMP
-
78FP-84118-03-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
81UJ-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
990183-06100-00 NUT, SPRINGNUT, SPRING
-
1095802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1197002-06016-00 BOLTBOLT
-
1292902-06100-00 WASHER, SPRINGWASHER, SPRING
