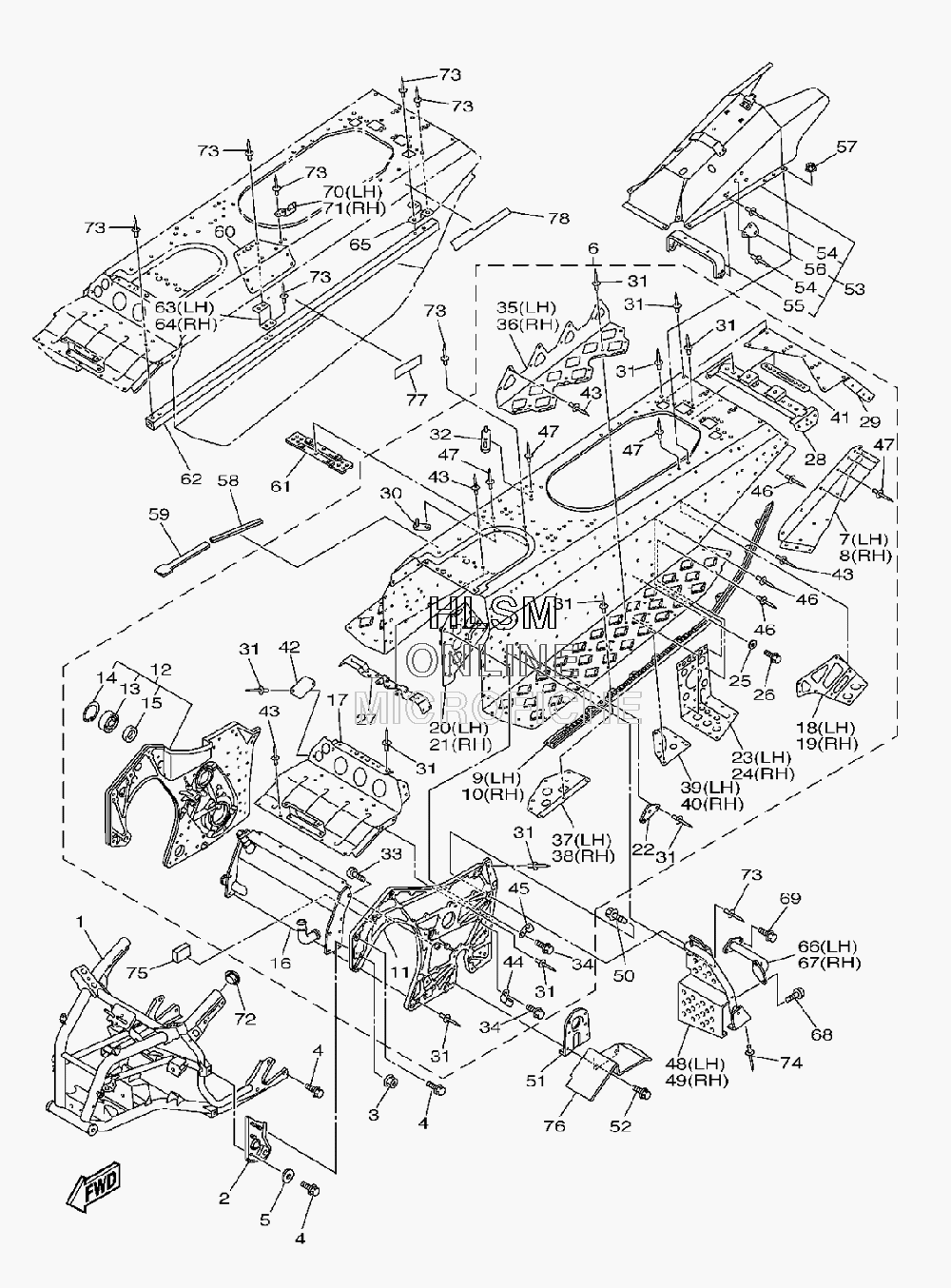

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha FX NYTRO RTX - 2009 года выпуска`
-
№АртикулНазвание
-
18GL-21940-01-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28GL-2194E-00-00 BRACKET, ENGINEBRACKET, ENGINE
-
390185-08054-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
495827-08016-00 BOLT,FLANGE (JN5)BOLT,FLANGE (JN5)
-
590201-086A3-00 WASHER, PLATEWASHER, PLATE
-
68GL-21950-01-00 REAR FRAME COMP.REAR FRAME COMP.
-
78GL-27452-00-00 BRACKET, FOOTREST 1BRACKET, FOOTREST 1
-
88GL-27462-00-00 BRACKET, FOOTREST 2BRACKET, FOOTREST 2
-
98GL-21926-01-00 REINFORCEMENT, FOOTREST 1REINFORCEMENT, FOOTREST 1
-
108GL-21936-01-00 REINFORCEMENT, FOOTREST 2REINFORCEMENT, FOOTREST 2
-
118GL-21925-00-00 REINF., HOUSING 1REINF., HOUSING 1
-
128GL-21930-00-00 HOUSING, REINF SUB-ASSYHOUSING, REINF SUB-ASSY
-
1393306-20601-00 BEARINGBEARING
-
1499009-62500-00 CIRCLIPCIRCLIP
-
1593102-30012-00 OIL SEALOIL SEAL
-
168GL-12440-00-00 HEAT EXCHANGER ASSYHEAT EXCHANGER ASSY
-
178GL-21915-00-00 PANEL, SUB FRAME 4PANEL, SUB FRAME 4
-
188GL-21963-00-00 PATCH 3PATCH 3
-
198GL-21964-00-00 PATCH 4PATCH 4
-
208GL-21943-00-00 BRACKET, MAIN TRACK 1BRACKET, MAIN TRACK 1
-
218GL-21953-00-00 BRACKET, MAIN TRACK 2BRACKET, MAIN TRACK 2
-
228FU-21919-00-00 BRACKET, MAIN TRACK 3BRACKET, MAIN TRACK 3
-
238GL-21944-00-00 BRACKET, RR. TRACK SUSPENSIONBRACKET, RR. TRACK SUSPENSION
-
248GL-21954-00-00 BRACKET, RR. TRACK SUSPENSIONBRACKET, RR. TRACK SUSPENSION
-
2590201-10064-00 WASHER, PLATEWASHER, PLATE
-
2695812-10020-00 BOLT, FLANGEBOLT, FLANGE
-
278GL-2194H-00-00 PROTECTOR, MUFFLERPROTECTOR, MUFFLER
-
288GL-2197N-00-00 BRACKET 7BRACKET 7
-
298GL-21923-00-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
308CR-2194N-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
3190267-47195-00 RIVET, BLIND (4.7X16.4 YELLORIVET, BLIND (4.7X16.4 YELLO
-
328GL-22512-00-00 BRACKET 8BRACKET 8
-
3392012-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3495022-08016-00 BOLT, FLANGEBOLT, FLANGE
-
358HB-21927-00-00 REINFORCEMENT, RR. FOOTREST 1REINFORCEMENT, RR. FOOTREST 1
-
368HB-21937-00-00 REINFORCEMENT, RR. FOOTREST 2REINFORCEMENT, RR. FOOTREST 2
-
378GL-21961-00-00 PATCH 1PATCH 1
-
388GL-21962-00-00 PATCH 2PATCH 2
-
398GL-21965-00-00 PATCH 5PATCH 5
-
408GL-21966-00-00 PATCH 6PATCH 6
-
418GL-21295-00-00 NUTNUT
-
428GL-2131D-00-00 PLATE, COVERPLATE, COVER
-
4390267-48010-00 RIVET, BLIND (4.8X12 YELLOW)RIVET, BLIND (4.8X12 YELLOW)
-
4490462-08061-00 CLAMPCLAMP
-
4590462-08064-00 CLAMPCLAMP
-
4690267-48016-00 RIVET, BLIND (4.8X16.4 YELLOW)RIVET, BLIND (4.8X16.4 YELLOW)
-
4790267-48023-00 RIVET, BLIND (4.8X12.1 YELLOW)RIVET, BLIND (4.8X12.1 YELLOW)
-
488GL-21960-00-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
498GL-21970-01-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
5095827-10030-00 BOLT, FLANGEBOLT, FLANGE
-
518GL-21920-00-00 HOUSING, REINF SUB-ASSY (L.H)HOUSING, REINF SUB-ASSY (L.H)
-
5295812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
538GL-21916-00-00 PANEL, SUB FRAME 5PANEL, SUB FRAME 5
-
5490267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
558GL-2194L-00-00 STAY, MUFFERSTAY, MUFFER
-
568GL-21946-00-00 BRACKET, SEAT FITTINGBRACKET, SEAT FITTING
-
5790176-06016-00 NUT, CROWNNUT, CROWN
-
588GL-22151-00-00 SEAL, GUARDSEAL, GUARD
-
598GL-22152-00-00 SEAL, GUARDSEAL, GUARD
-
608GL-21967-00-00 PATCH 7PATCH 7
-
618GL-21988-00-00 PATCH 8PATCH 8
-
628GL-21978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
638GL-2196M-00-00 BRACKET, 5BRACKET, 5
-
648GL-2197M-00-00 BRACKET, 6BRACKET, 6
-
658GL-21443-00-00 BRACKET, PROTECTOR REARBRACKET, PROTECTOR REAR
-
668GL-27471-00-00 BAR, FOOTREST 1BAR, FOOTREST 1
-
678GL-27472-00-00 BAR, FOOTREST 2BAR, FOOTREST 2
-
6892012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
6995812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
708GL-21151-00-00 BRACKET, REAR FENDER 1BRACKET, REAR FENDER 1
-
718GL-21152-00-00 BRACKET, REAR FENDER 2BRACKET, REAR FENDER 2
-
72180-22117-00-00 CAPCAP
-
7390267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
7490267-48016-00 RIVET, BLIND (4.8X16.4 YELLOW)RIVET, BLIND (4.8X16.4 YELLOW)
-
758GL-21852-00-00 DAMPERDAMPER
-
768GL-2197B-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
778GL-2179D-10-00 PLATE, EPA OFFROAD 2PLATE, EPA OFFROAD 2
-
788GL-2199A-30-00 GRAPHIC 1 FOR DPBSEGRAPHIC 1 FOR DPBSE
-
788GL-2199A-40-00 GRAPHIC 1 FOR YBGRAPHIC 1 FOR YB
