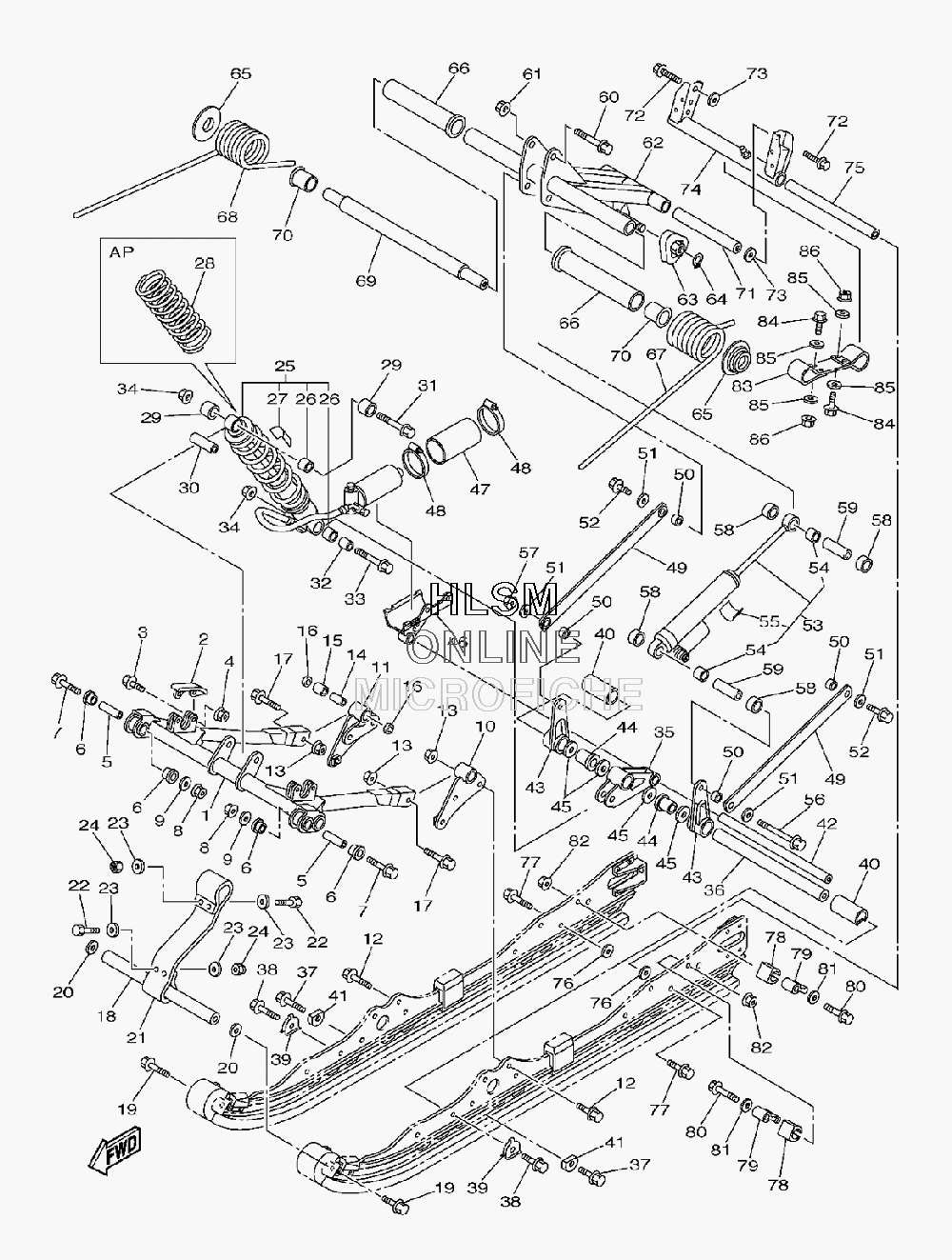

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha FX NYTRO RTX - 2009 года выпуска
-
№АртикулНазвание
-
18GL-47331-00-00 ARM, PIVOT 1ARM, PIVOT 1
-
28F3-47422-01-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
390105-06164-00 BOLT, FLANGEBOLT, FLANGE
-
495602-06200-00 NUT-UNUT-U
-
58GL-47465-00-00 SHAFT 1SHAFT 1
-
690381-18068-00 BUSH, SOLIDBUSH, SOLID
-
790105-10135-00 BOLT, FLANGEBOLT, FLANGE
-
895602-10200-00 NUT, U FLANGENUT, U FLANGE
-
990201-10046-00 WASHER, PLATEWASHER, PLATE
-
108GL-47415-00-00 BRACKET 1BRACKET 1
-
118GL-47418-00-00 BRACKET 4BRACKET 4
-
1295812-10025-00 BOLT,FLANGE (3GD)BOLT,FLANGE (3GD)
-
1395602-10200-00 NUT, U FLANGENUT, U FLANGE
-
1490387-1012A-00 COLLARCOLLAR
-
1593315-31758-00 BEARINGBEARING
-
1693109-17071-00 OIL SEALOIL SEAL
-
1795812-10045-00 BOLT,FLANGE (4GB)BOLT,FLANGE (4GB)
-
188FU-47485-00-00 SHAFT 3SHAFT 3
-
1990105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
2090201-10126-00 WASHER, PLATEWASHER, PLATE
-
218GL-47495-00-00 STOPPER 1STOPPER 1
-
2297002-06025-00 BOLT,HEXAGONBOLT,HEXAGON
-
2390201-06036-00 WASHER, PLATEWASHER, PLATE
-
2495702-06300-00 NUT, NYLONNUT, NYLON
-
258HB-47481-30-00 SHOCK ABSORBER 2SHOCK ABSORBER 2
-
2690384-17N50-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
274AA-22259-70-00 LABEL, WARNINGLABEL, WARNING
-
288HB-47336-10-00 SPRING, 2 (K=30N/MM) APSPRING, 2 (K=30N/MM) AP
-
298FU-47341-00-00 SPACERSPACER
-
3090387-10034-00 COLLARCOLLAR
-
3190105-10335-00 BOLT, FLANGEBOLT, FLANGE
-
3290387-10064-00 COLLARCOLLAR
-
3395812-10045-00 BOLT,FLANGE (4GB)BOLT,FLANGE (4GB)
-
3495602-10200-00 NUT, U FLANGENUT, U FLANGE
-
358GL-47349-00-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
368GL-47487-00-00 SHAFT 5SHAFT 5
-
3790105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
3890105-10332-00 BOLT, FLANGEBOLT, FLANGE
-
398GL-47384-00-00 WASHERWASHER
-
4090387-26010-00 COLLARCOLLAR
-
418GL-47341-00-00 SPACERSPACER
-
428GL-47486-00-00 SHAFT 4SHAFT 4
-
438GL-47416-00-00 BRACKET 2BRACKET 2
-
4490386-25002-00 BUSHBUSH
-
4590201-256E4-00 WASHER, PLATE (T=1.5)WASHER, PLATE (T=1.5)
-
468HB-4748A-00-00 HOLDER, ABSORBERHOLDER, ABSORBER
-
478HB-4748B-00-00 BRACKETBRACKET
-
4890450-60001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
498GL-47490-00-00 RELAY ROD ASSYRELAY ROD ASSY
-
5090387-10066-00 COLLARCOLLAR
-
5190201-16027-00 WASHER, PLATEWASHER, PLATE
-
5290105-10287-00 BOLT, FLANGEBOLT, FLANGE
-
538HB-47480-30-00 SHOCK ABSORBERSHOCK ABSORBER
-
5490384-17N50-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
554AA-22259-70-00 LABEL, WARNINGLABEL, WARNING
-
5690105-10338-00 BOLT, FLANGEBOLT, FLANGE
-
5795602-10200-00 NUT, U FLANGENUT, U FLANGE
-
588FU-47341-00-00 SPACERSPACER
-
5990387-10034-00 COLLARCOLLAR
-
6090105-10335-00 BOLT, FLANGEBOLT, FLANGE
-
6195602-10200-00 NUT, U FLANGENUT, U FLANGE
-
628GL-47332-00-00 ARM, PIVOT 2ARM, PIVOT 2
-
638ES-47447-00-00 HOOK 2HOOK 2
-
6499009-14400-00 CIRCLIPCIRCLIP
-
658ES-47467-00-00 PLATE, GUIDEPLATE, GUIDE
-
668GL-47445-00-00 PROTECTORPROTECTOR
-
678GL-47473-00-00 SPRING, REAR 1 (K=1900NMM/DEG) APSPRING, REAR 1 (K=1900NMM/DEG) AP
-
678GL-47473-10-00 SPRING, REAR 1 (K=2100NMM/DEG) APSPRING, REAR 1 (K=2100NMM/DEG) AP
-
678GL-47473-20-00 SPRING, REAR 1 (K=1400NMM/DEG)SPRING, REAR 1 (K=1400NMM/DEG)
-
688GL-47474-00-00 SPRING, REAR 2 (K=1900NMM/DEG) APSPRING, REAR 2 (K=1900NMM/DEG) AP
-
688GL-47474-10-00 SPRING, REAR 2 (K=2100NMM/DEG) APSPRING, REAR 2 (K=2100NMM/DEG) AP
-
688GL-47474-20-00 SPRING, REAR 2 (K=1400NMM/DEG)SPRING, REAR 2 (K=1400NMM/DEG)
-
698GL-47475-00-00 SHAFT 2SHAFT 2
-
7090381-28108-00 BUSH, SOLIDBUSH, SOLID
-
718GC-47488-00-00 SHAFT 6SHAFT 6
-
7290105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
7390201-19008-00 WASHER, PLATEWASHER, PLATE
-
748GC-47417-10-00 BRACKET 3BRACKET 3
-
758FU-47485-00-00 SHAFT 3SHAFT 3
-
7690201-10136-00 WASHER, PLATEWASHER, PLATE
-
7790105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
788GC-47496-00-00 STOPPER 2STOPPER 2
-
798GN-47338-00-00 COLLARCOLLAR
-
8097012-10050-00 BOLTBOLT
-
8190201-10061-00 WASHER, PLATEWASHER, PLATE
-
8295602-10200-00 NUT, U FLANGENUT, U FLANGE
-
838GL-47496-10-00 STOPPER 2STOPPER 2
-
8497002-06025-00 BOLT,HEXAGONBOLT,HEXAGON
-
8590201-06036-00 WASHER, PLATEWASHER, PLATE
-
8695702-06300-00 NUT,FLANGENUT,FLANGE
