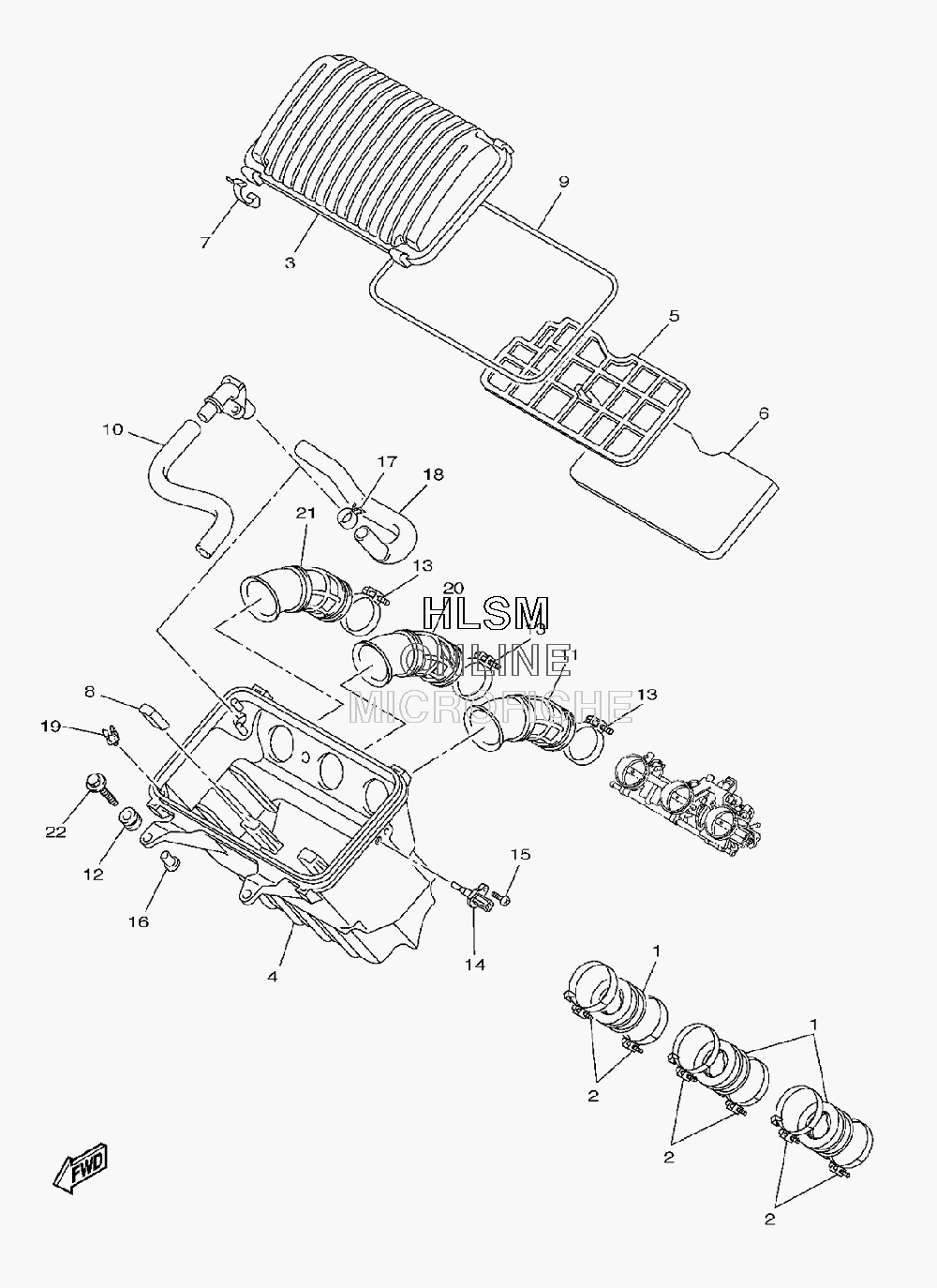

INTAKE W/ AIR BOX ASSY - FUEL PUMP для Yamaha FX NYTRO RTX - 2009 года выпуска`
-
№АртикулНазвание
-
18GL-13595-00-00 JOINTJOINT
-
290450-60004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
38GL-14431-00-00 SILENCER, INTAKE 1SILENCER, INTAKE 1
-
48GL-W1444-10-00 SILENCER, INTAKE 2SILENCER, INTAKE 2
-
58GL-14472-00-00 PLATE, ELEMENTPLATE, ELEMENT
-
68GL-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
78GL-14436-00-00 HOOKHOOK
-
88GL-14425-00-00 DAMPER 1DAMPER 1
-
98GL-14452-00-00 SEALSEAL
-
108GL-14419-00-00 PIPEPIPE
-
118GL-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
1290480-14198-00 GROMMETGROMMET
-
1390450-56009-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
148FP-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
1597702-50520-00 SCREW, TAPPINGSCREW, TAPPING
-
1690387-08M45-00 COLLARCOLLAR
-
1790467-22097-00 CLIPCLIP
-
188GL-21745-00-00 PIPE, OIL TANK BREATHERPIPE, OIL TANK BREATHER
-
198GL-14459-00-00 HOLDER, GUIDEHOLDER, GUIDE
-
208GL-14463-00-00 JOINT, AIR CLEANER 2JOINT, AIR CLEANER 2
-
218GL-14454-00-00 JOINTJOINT
-
2290119-06231-00 BOLT, WITH WASHERBOLT, WITH WASHER
