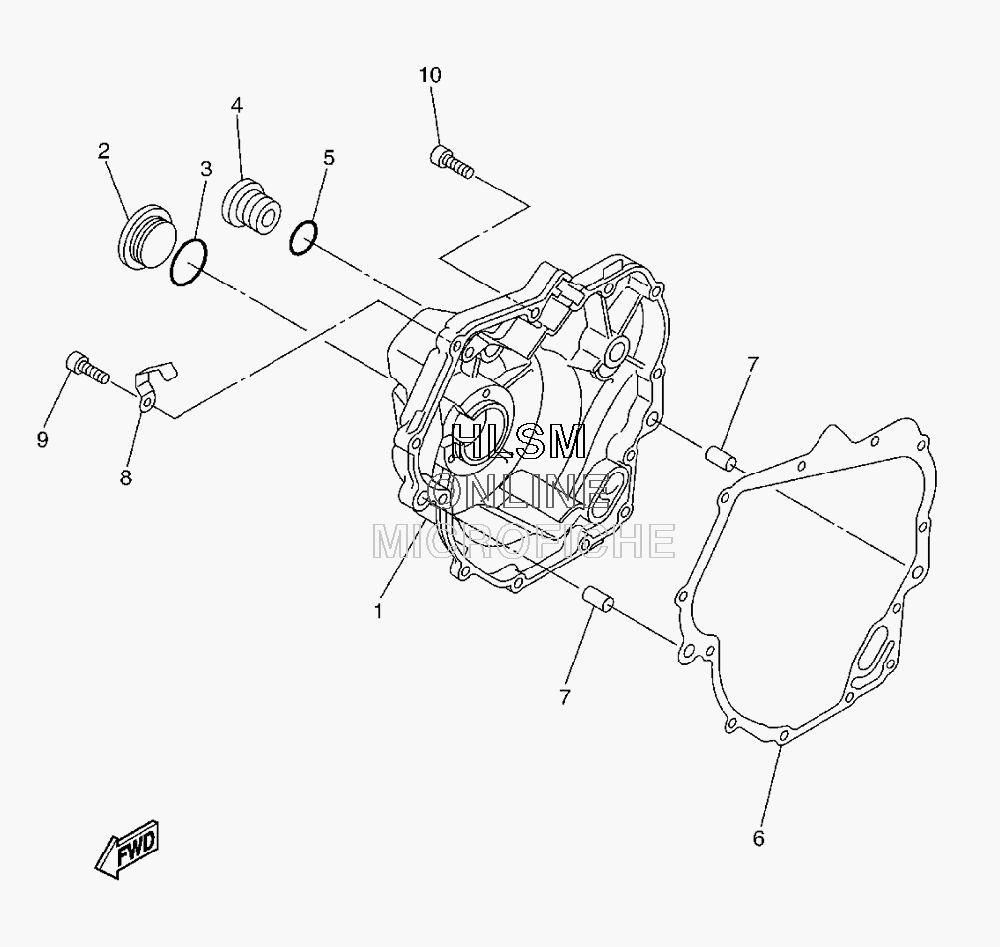

CRANKCASE COVER ASSY для Yamaha FX NYTRO RTX - 2009 года выпуска`
-
№АртикулНазвание
-
18GL-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
290340-32080-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
393210-32172-00 O-RINGO-RING
-
490340-14117-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
593210-14369-00 O-RINGO-RING
-
68ES-15461-01-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
799530-08012-00 PIN, DOWELPIN, DOWEL
-
890462-08225-00 CLAMPCLAMP
-
990109-06015-00 BOLTBOLT
-
1090110-06234-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
