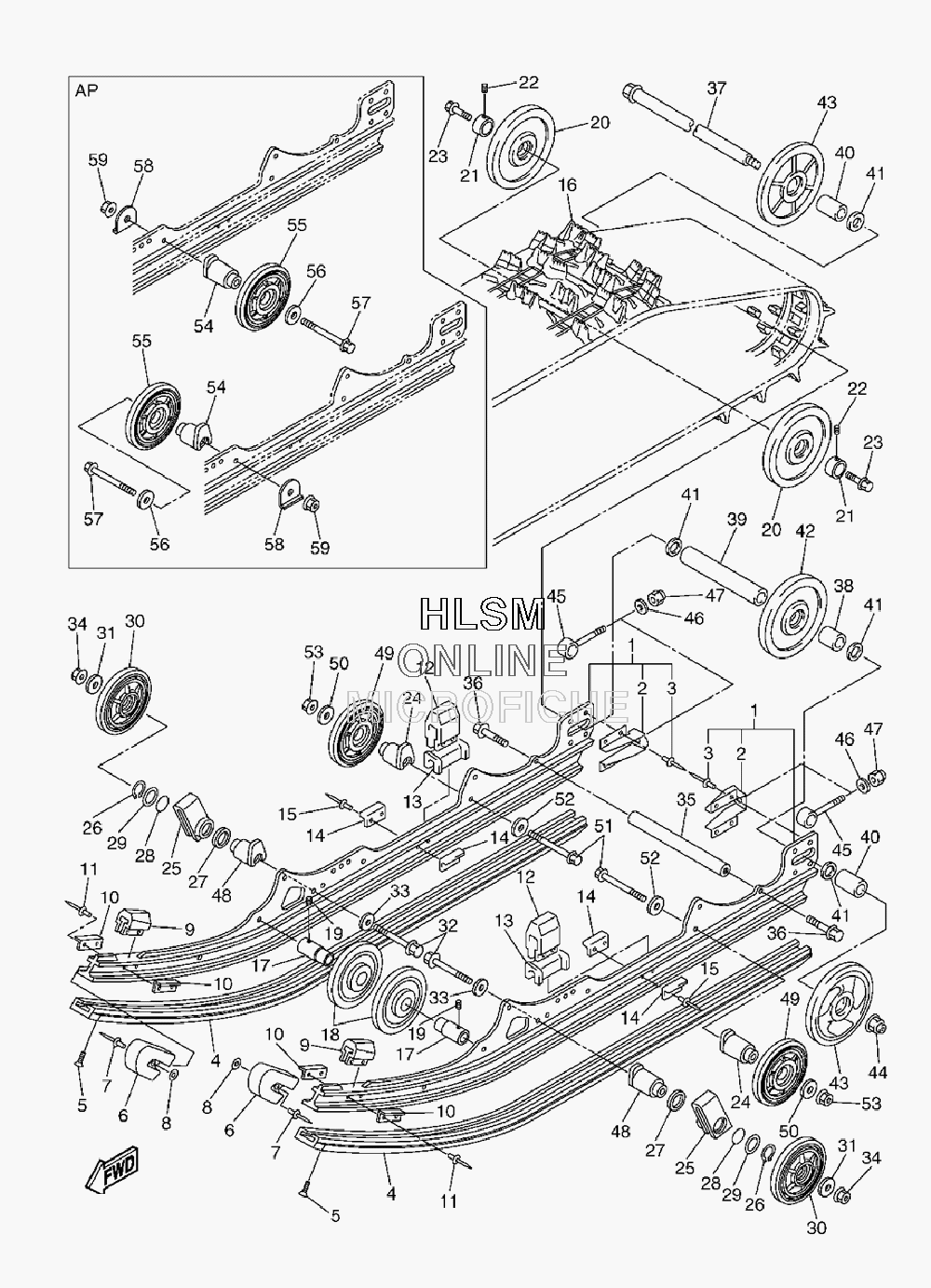

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha APEX MTX - 2009 года выпуска`
-
№АртикулНазвание
-
18FS-W4741-00-00 FRAME, SLIDINGFRAME, SLIDING
-
28DM-4741B-00-00 BRACKETBRACKET
-
38V0-47468-00-00 RIVETRIVET
-
48FS-47421-00-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
590151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
68ED-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
790267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
890201-047R8-00 WASHER, PLATEWASHER, PLATE
-
98ES-47456-00-00 DAMPER 1DAMPER 1
-
108K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
1190267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
128CM-47457-00-00 DAMPER 2DAMPER 2
-
138CM-47341-00-00 SPACERSPACER
-
148AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1590267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
168FS-47110-00-00 TRACK ASSY 16X162X2.2TRACK ASSY 16X162X2.2
-
178ES-47319-01-00 COLLARCOLLAR
-
188ET-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
1990113-06039-00 BOLT, SETBOLT, SET
-
208CR-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
218FS-47365-00-00 COLLAR 1COLLAR 1
-
2290113-06039-00 BOLT, SETBOLT, SET
-
2390105-103A1-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
248ES-47419-00-00 BRACKET 7BRACKET 7
-
258ES-47446-00-00 HOOK 1HOOK 1
-
2699009-35400-00 CIRCLIPCIRCLIP
-
2793210-35537-00 O-RINGO-RING
-
2893210-34504-00 O-RINGO-RING
-
2990201-35013-00 WASHER, PLATEWASHER, PLATE
-
308FS-47310-01-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
3190201-104A7-00 WASHER, PLATEWASHER, PLATE
-
3295817-10080-00 BOLT, FLANGEBOLT, FLANGE
-
3390201-106F2-00 WASHER, PLATEWASHER, PLATE
-
3495607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
358ES-47485-00-00 SHAFT 3SHAFT 3
-
3690105-10092-00 BOLT, FLANGEBOLT, FLANGE
-
378L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
3890387-20015-00 COLLARCOLLAR
-
3990387-20016-00 COLLARCOLLAR
-
4090387-20019-00 COLLARCOLLAR
-
4190201-205R6-00 WASHER, PLATEWASHER, PLATE
-
428CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
438EK-47550-10-00 GUIDE WHEEL ASSY FOR DPBMCGUIDE WHEEL ASSY FOR DPBMC
-
438EK-47550-20-00 GUIDE WHEEL ASSY FOR YBGUIDE WHEEL ASSY FOR YB
-
4495607-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
458DM-47479-00-00 COLLAR 3COLLAR 3
-
4692902-10600-00 WASHER, PLATEWASHER, PLATE
-
4795702-10300-00 NUT, NYLONNUT, NYLON
-
488ES-47419-10-00 BRACKET 7BRACKET 7
-
498FS-47310-01-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
5090201-104A7-00 WASHER, PLATEWASHER, PLATE
-
5195817-10080-00 BOLT, FLANGEBOLT, FLANGE
-
5290201-106F2-00 WASHER, PLATEWASHER, PLATE
-
5395607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
548ES-47419-00-00 BRACKET 7BRACKET 7
-
558FS-47310-01-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
5690201-104A7-00 WASHER, PLATEWASHER, PLATE
-
5795817-10080-00 BOLT, FLANGEBOLT, FLANGE
-
5890214-10003-00 WASHER, CLAWWASHER, CLAW
-
5995607-10200-00 NUT, U FLANGENUT, U FLANGE
