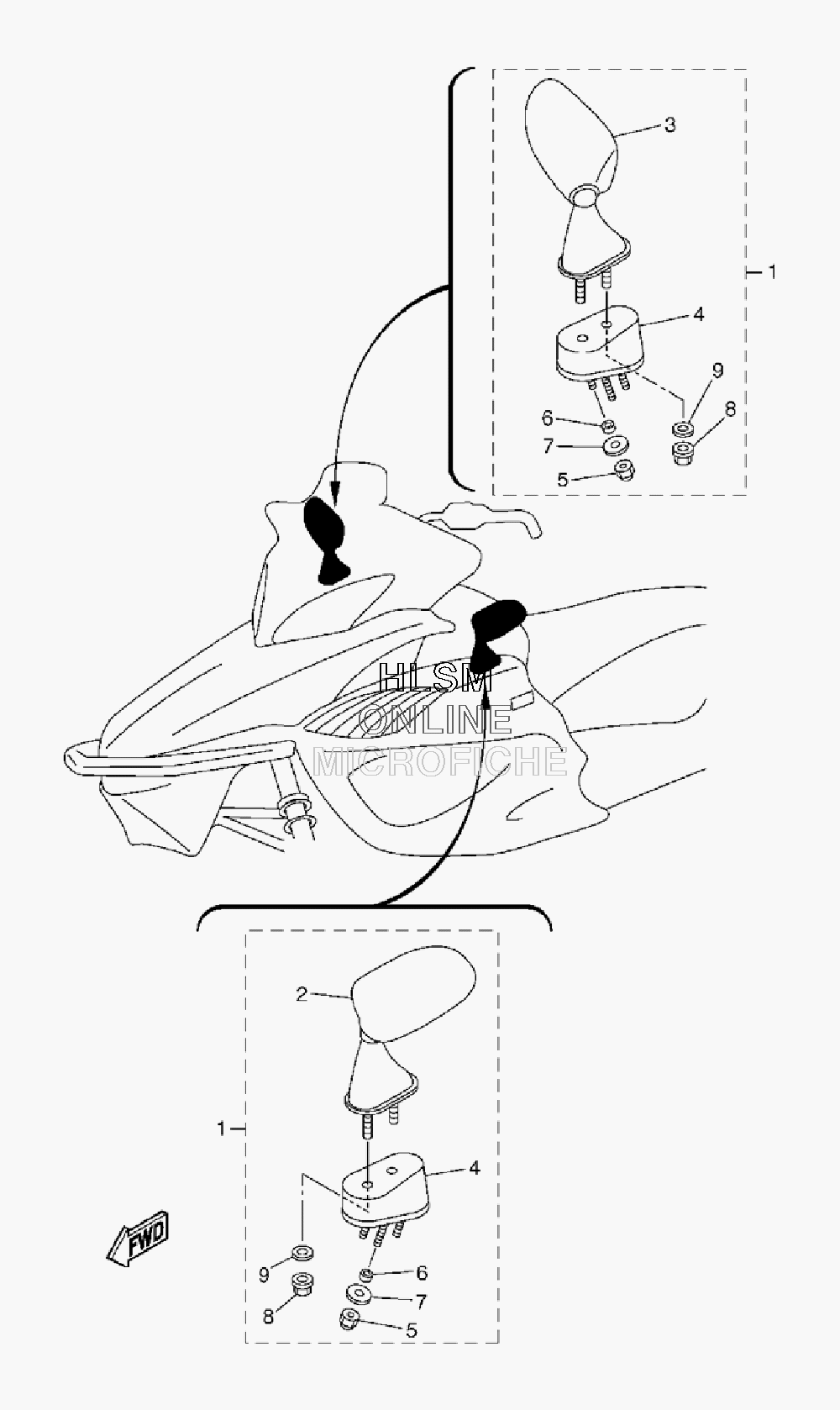

REAR VIEW MIRROR ASSY (OPTION) для Yamaha APEX MTX - 2009 года выпуска`
-
№АртикулНазвание
-
18FP-W2628-03-00 REAR VIEW MIRROR SETREAR VIEW MIRROR SET
-
24SV-26280-00-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
34SV-26290-00-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
48FP-2628N-10-00 BASE, MIRRORBASE, MIRROR
-
595707-06300-00 NUT, FLANGENUT, FLANGE
-
690387-06008-00 COLLARCOLLAR
-
790201-06557-00 WASHER, PLATEWASHER, PLATE
-
895602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
990201-063A5-00 WASHER, PLATEWASHER, PLATE
