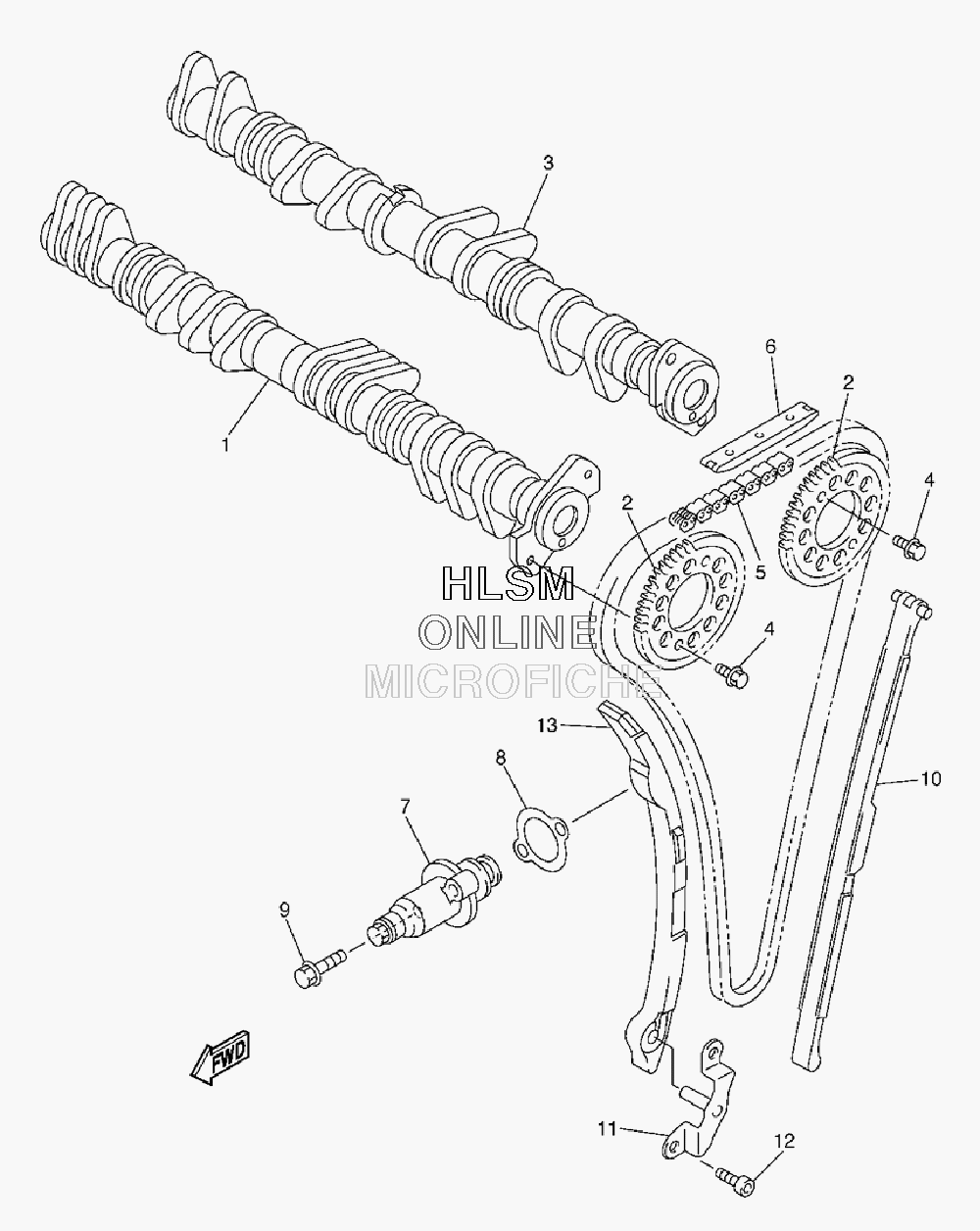

CAMSHAFT W/ CAMSHAFT CHAIN ASSY для Yamaha APEX MTX - 2009 года выпуска`
-
№АртикулНазвание
-
18FP-12171-00-00 CAMSHAFT 1CAMSHAFT 1
-
28FP-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
38FP-12181-00-00 CAMSHAFT 2CAMSHAFT 2
-
490105-07004-00 BOLT, FLANGEBOLT, FLANGE
-
594591-61130-00 CHAINCHAIN
-
65BE-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
78FP-12210-00-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
84FM-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
995022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
104XV-12251-00-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
118FA-12233-00-00 PLATE, GUIDE STOPPER 1PLATE, GUIDE STOPPER 1
-
1290110-06187-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
138FA-12252-00-00 DAMPER, CHAIN 2DAMPER, CHAIN 2
