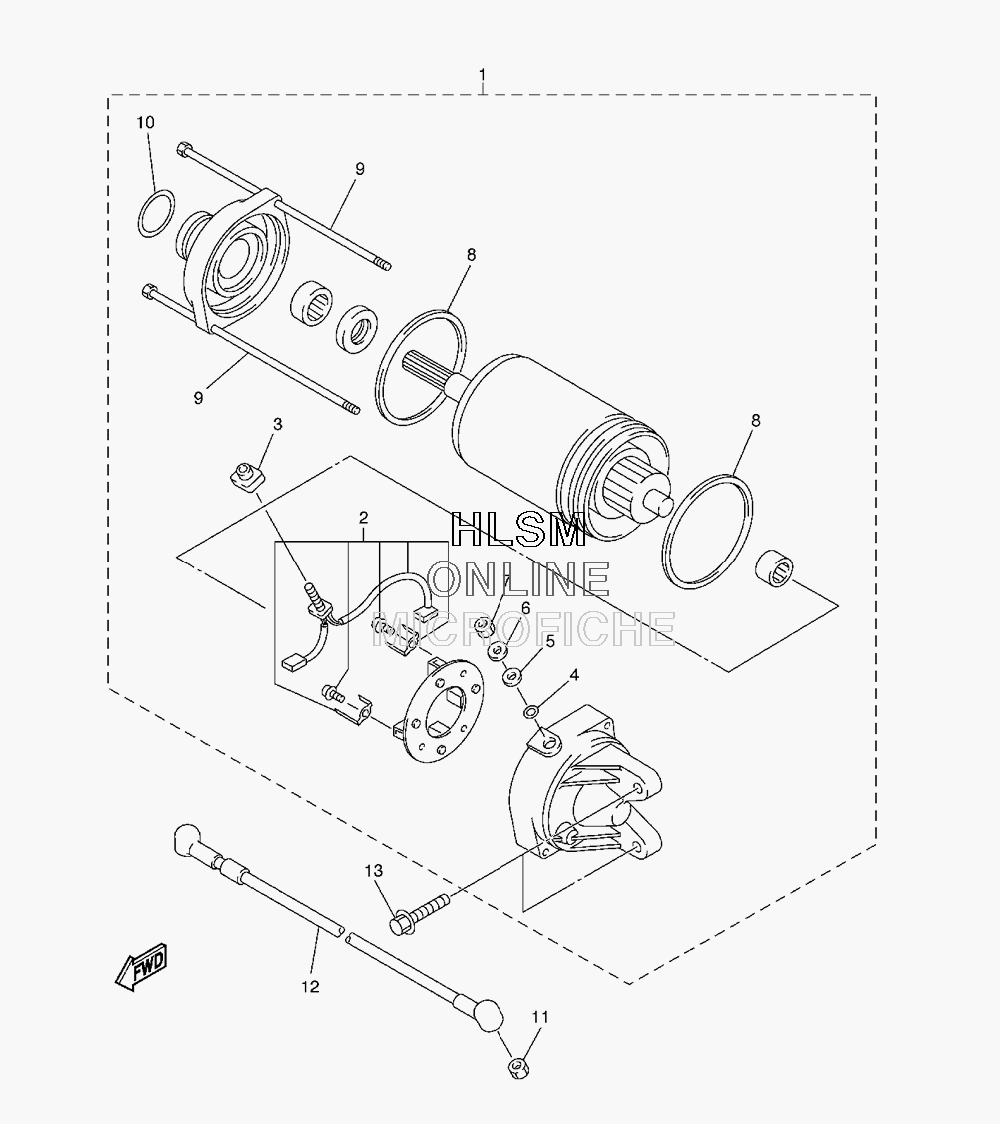

STARTER - ELECTRICAL STARTER ASSY для Yamaha APEX MTX - 2009 года выпуска`
-
№АртикулНазвание
-
18FP-81890-00-00 MOTOR ASSYMOTOR ASSY
-
28ES-81801-00-00 BRUSH SETBRUSH SET
-
35PX-8182G-00-00 BUSH, TERMINALBUSH, TERMINAL
-
493210-06001-00 O-RINGO-RING
-
58FA-8181L-00-00 WASHER, PLAINWASHER, PLAIN
-
690201-06726-00 WASHER, PLATEWASHER, PLATE
-
795304-06700-00 NUTNUT
-
85PX-81861-00-00 GASKETGASKET
-
98FA-81846-00-00 SCREWSCREW
-
1093210-24235-00 O-RINGO-RING
-
1195304-06700-00 NUTNUT
-
128FA-8183G-00-00 CORD COMP.CORD COMP.
-
1395812-08030-00 BOLT, FLANGEBOLT, FLANGE
