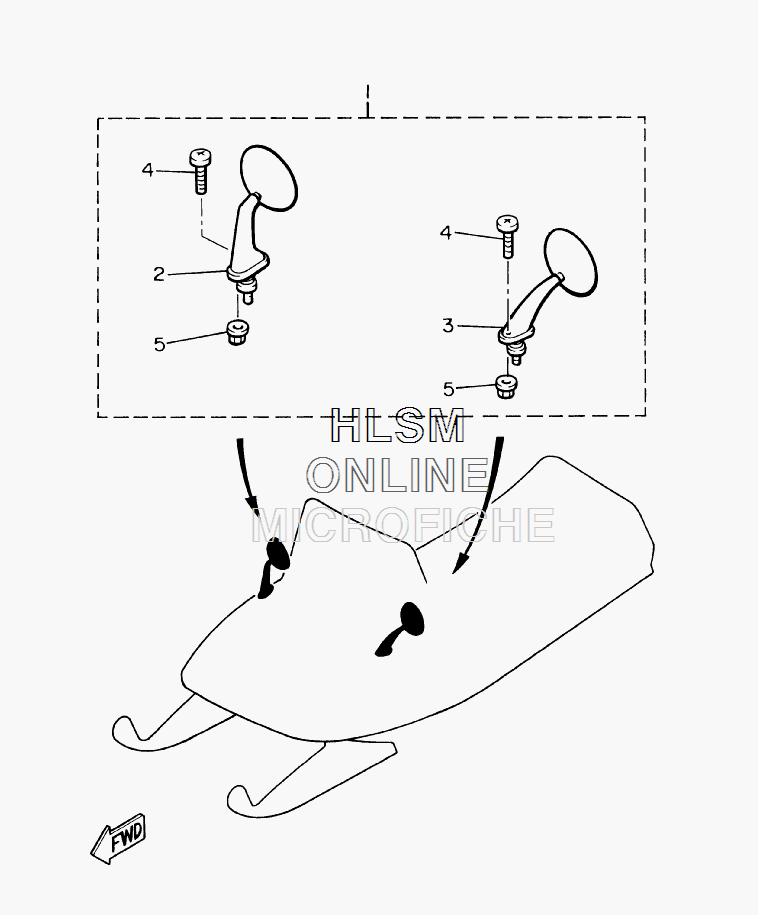

REAR VIEW MIRROR ASSY (OPTION) для Yamaha BRAVO T - 2008 года выпуска`
-
№АртикулНазвание
-
18E1-W2628-00-00 REAR VIEW MIRROR SET (OPT)REAR VIEW MIRROR SET (OPT)
-
28E1-26280-00-00 ...REAR VIEW MIRROR ASSY (RIGHT)...REAR VIEW MIRROR ASSY (RIGHT)
-
38E1-26290-00-00 ...REAR VIEW MIRROR ASSY (LEFT)...REAR VIEW MIRROR ASSY (LEFT)
-
498507-04016-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
595707-04500-00 ...NUT, FLANGE...NUT, FLANGE
