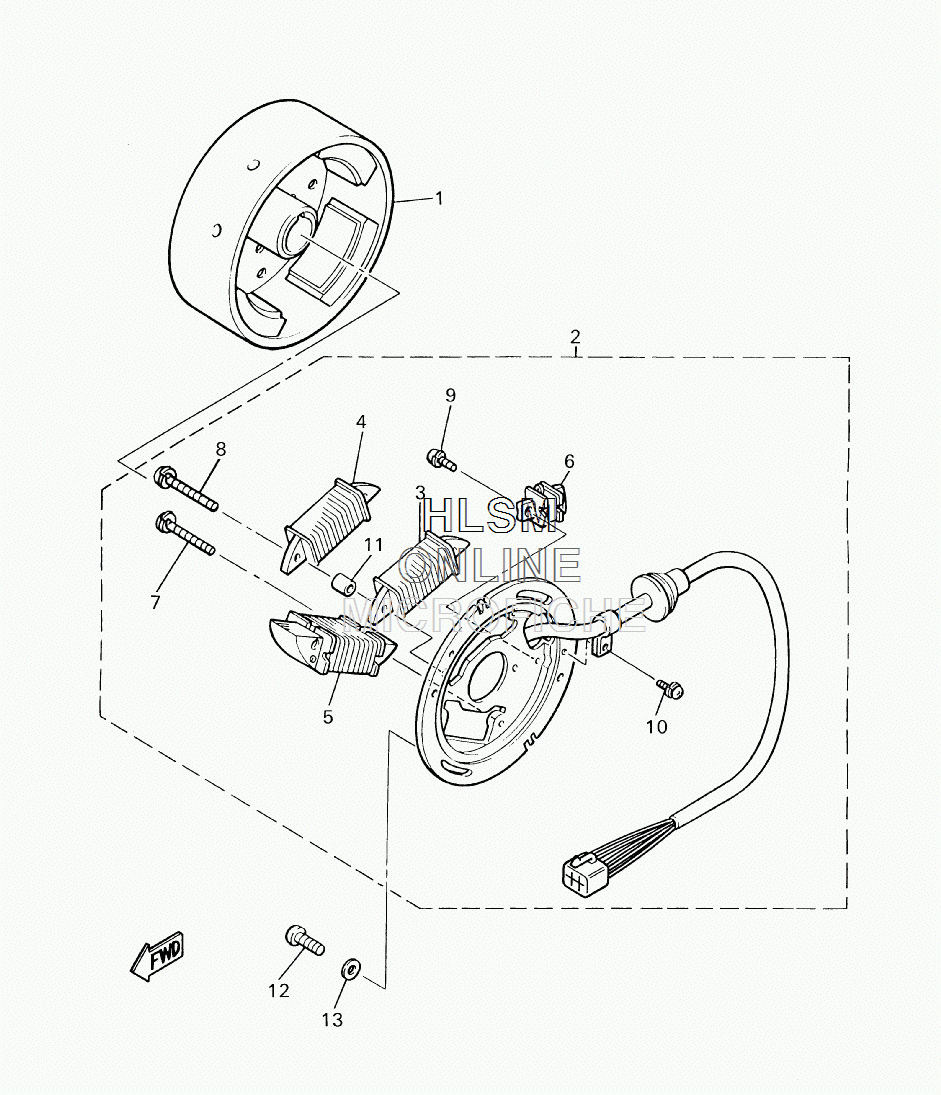

ELECTRICAL - MAGNETO ASSEMBLY для Yamaha BRAVO T - 2008 года выпуска`
-
№АртикулНазвание
-
185L-85550-02-00 ROTOR ASSYROTOR ASSY
-
28BD-85560-00-00 BASE ASSYBASE ASSY
-
381L-85520-M0-00 ...COIL, CHARGE...COIL, CHARGE
-
481L-81314-M0-00 ...COIL, LIGHTING 2...COIL, LIGHTING 2
-
582H-81313-M0-00 ...COIL, LIGHTING 1...COIL, LIGHTING 1
-
68R4-85580-M0-00 ...COIL, PULSER...COIL, PULSER
-
790159-05129-00 ...SCREW WITH WASHER...SCREW WITH WASHER
-
890159-05130-00 ...SCREW WITH WASHER...SCREW WITH WASHER
-
997602-04112-00 ...SCREW, PAN HEAD WITH WASHER...SCREW, PAN HEAD WITH WASHER
-
1097602-04108-00 ...SCREW, PAN HEAD WITH WASHER...SCREW, PAN HEAD WITH WASHER
-
1190387-06299-00 ...COLLAR...COLLAR
-
1290154-06035-00 SCREW, BINDINGSCREW, BINDING
-
1390201-06043-00 WASHER, PLATEWASHER, PLATE
