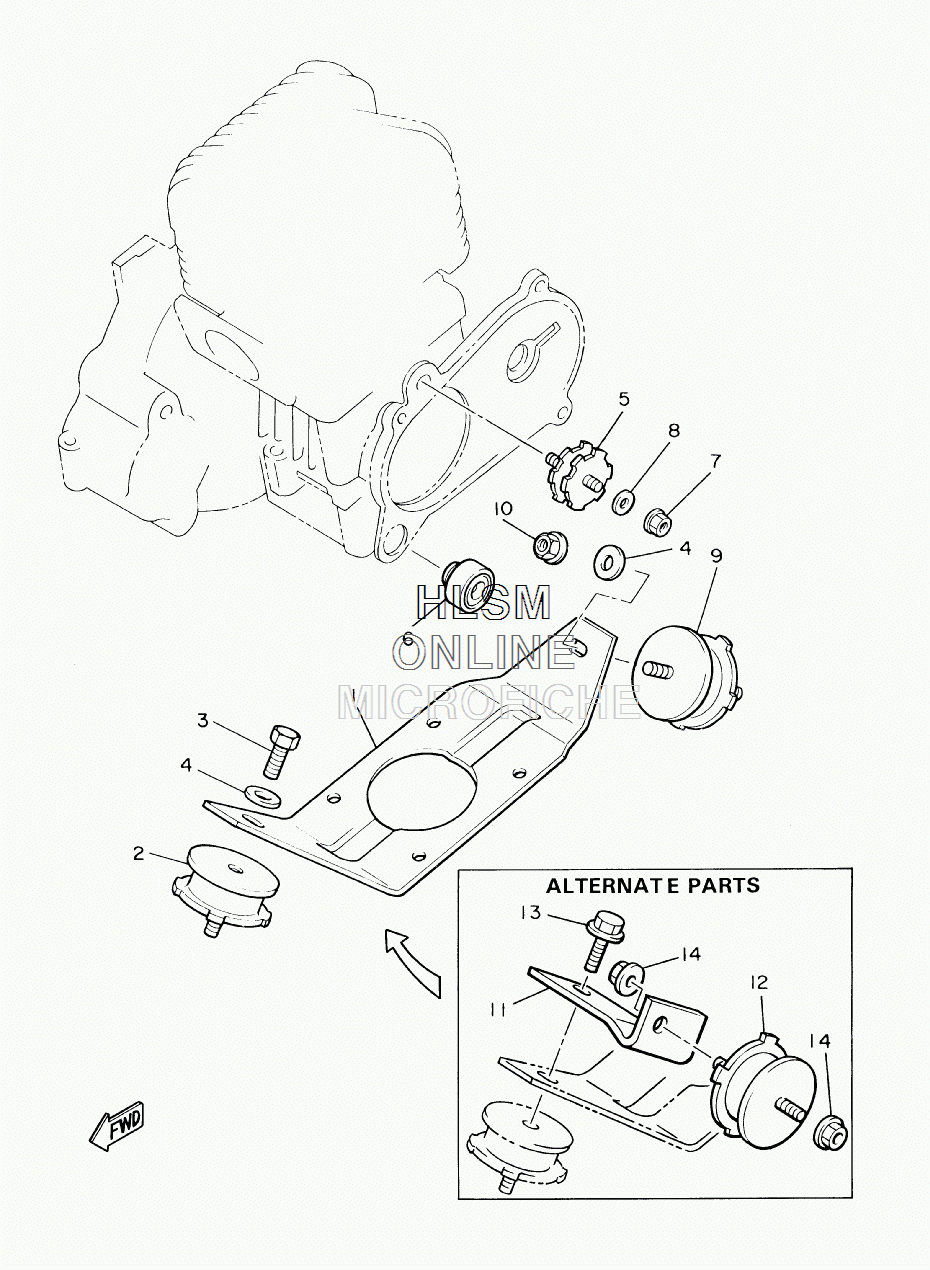

ENGINE MOUNTING для Yamaha BRAVO T - 2008 года выпуска`
-
№АртикулНазвание
-
18R4-21411-00-00 BRACKET, ENGINE 1BRACKET, ENGINE 1
-
28R4-21485-00-00 DAMPER, RUBBER 1DAMPER, RUBBER 1
-
395807-10014-00 BOLT, FLANGEBOLT, FLANGE
-
490201-10321-00 WASHER, PLATEWASHER, PLATE
-
58V7-21486-00-00 DAMPER 2DAMPER 2
-
68R4-21488-01-00 DAMPERDAMPER
-
795707-08500-00 NUT, FLANGENUT, FLANGE
-
892907-08200-00 WASHERWASHER
-
98F3-21486-00-00 DAMPER 2DAMPER 2
-
1090179-10279-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
1186A-21419-00-00 BRACKET, ENGINE 2 (OPT)BRACKET, ENGINE 2 (OPT)
-
128F3-21486-00-00 DAMPER 2 (OPT)DAMPER 2 (OPT)
-
1395807-10020-00 BOLT, FLANGE (OPT)BOLT, FLANGE (OPT)
-
1495707-10500-00 NUT, FLANGE (OPT)NUT, FLANGE (OPT)
