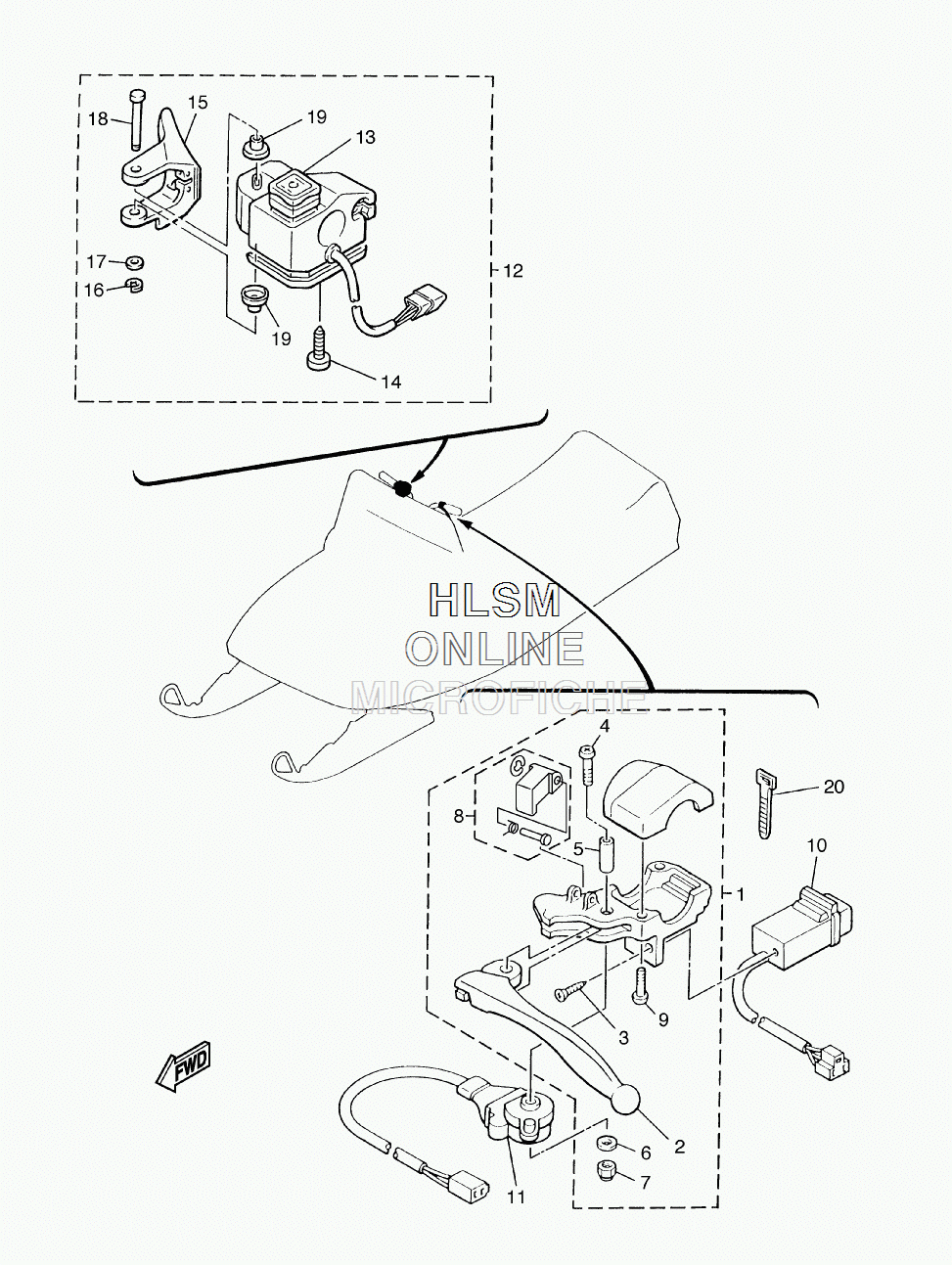

HANDLEBAR - SWITCHES AND LEVERS для Yamaha BRAVO T - 2008 года выпуска`
-
№АртикулНазвание
-
18E3-W8291-01-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
2803-83912-00-00 ...LEVER L...LEVER L
-
397701-30712-00 ...SCREW, TAPPING...SCREW, TAPPING
-
490157-05114-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
5802-83913-00-00 ...COLLAR, LEVER 1...COLLAR, LEVER 1
-
692990-05200-00 ...WASHER, PLAIN...WASHER, PLAIN
-
795701-05300-00 ...NUT, FLANGE...NUT, FLANGE
-
88E3-W8393-01-00 ...LEVER LOCK ASSY...LEVER LOCK ASSY
-
990157-05027-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
108H8-83950-01-00 BEAM SWITCH ASSYBEAM SWITCH ASSY
-
118R4-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
128AD-82720-00-00 LEVER HOLDER ASSY (RIGHT)LEVER HOLDER ASSY (RIGHT)
-
138AD-82575-09-00 ...ENGINE STOP SWITCH ASSY...ENGINE STOP SWITCH ASSY
-
148R6-83928-00-00 ...SCREW...SCREW
-
158V0-42138-00-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
1699001-04600-00 ...CIRCLIP...CIRCLIP
-
1785G-83663-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
188R6-8399F-00-00 ...SHAFT...SHAFT
-
1985G-83956-00-00 ...CAP 1...CAP 1
-
20437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
